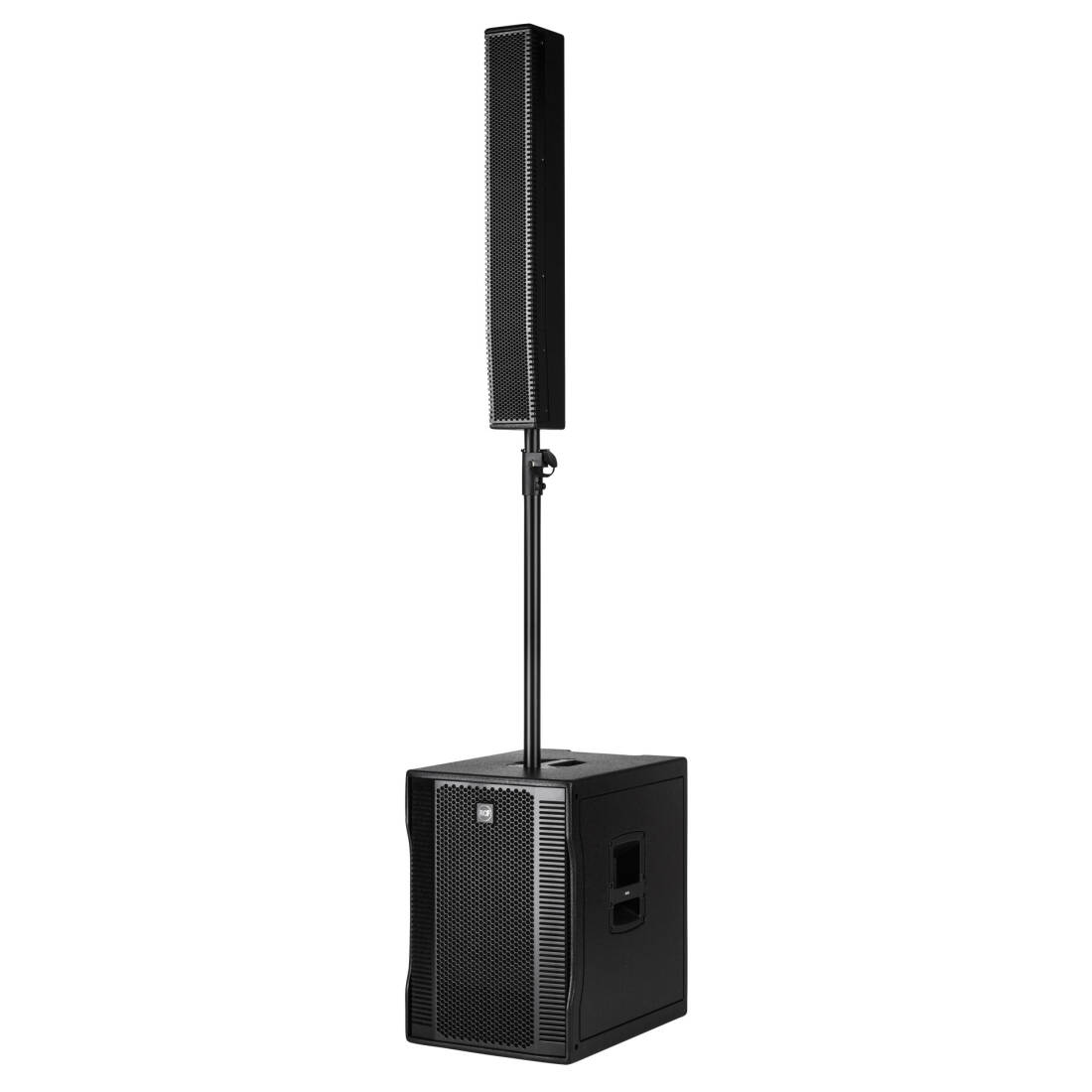

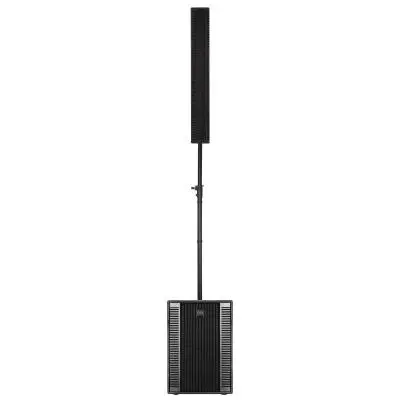

RCF EVOX 12 Active Two-way Column Speaker Array with 15'' Subwoofer - Black

1,400W Active Portable PA System with 15-inch subwoofer, 8 x 4" Full-range Drivers, FiRPHASE, and Adjustable Height

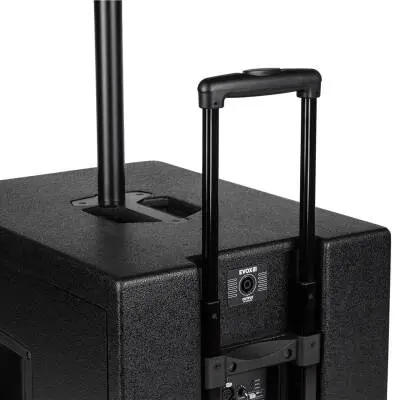

EVOX 12 is the most powerful line-source in its class and offers a particularly profound and dynamic reproduction at high levels due to the built-in 1400W power amplifier. The top section has eight high performance neodymium 4 full-range transducers with a phase plug. As a result, the EVOX 12 has a significantly increased low-mid playback at a constant level with a wide dispersion for the highs. The 15" subwoofer delivers powerful bass sound to reinforce a big party or the kick drum of a live band. Despite high performance, the enclosure is very compact, and thanks to integrated wheels and extendable handle very easy to transport.

Powerful Class D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. EVOX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Superior Transducers

High frequencies

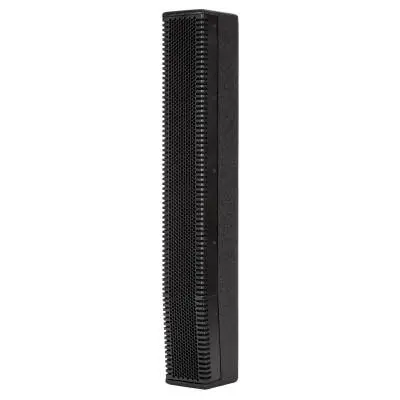

The ultra-compact full-range 4" drivers are capable of handling extremely high SPL and power. The top column features 8 drivers.

Low Frequencies

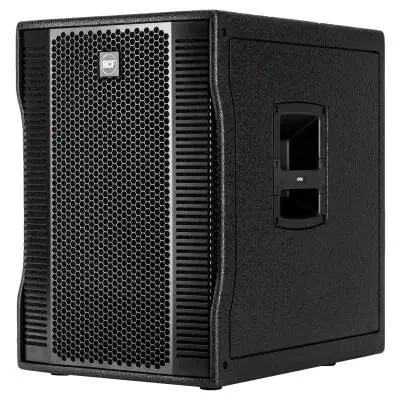

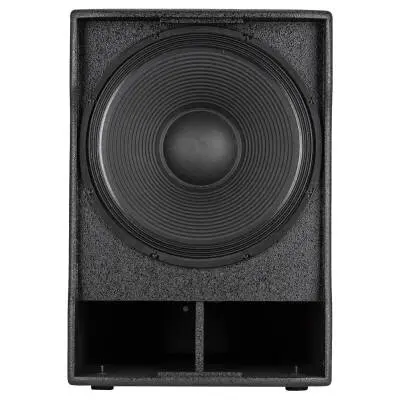

The high excursion 15" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX 12 array design features constant horizontal directivity coverage of 90° x 30°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array.

Ready to play in a few simple steps

With 3 simple steps, the EVOX 12 system is all set and ready to play! EVOX 12 system is designed to be easily transported and quickly set up. All the components top column, sub, pole and cables come in one package and fit in the optional transportation covers.

Features

• 1400 Watt
• 130 dB max SPL
• 40 Hz 20 kHz frequency response
• 15" Woofer
• 8 x 4" neodymium full-range drivers
• 90° x 30° slightly tilted pattern control
• Innovative DSP processing
• Pole mountable, easy set-up and transportation

Specifications

Acoustical Specifications
Frequency Response: 40 Hz - 20 kHz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 30°

Transducers
Fullrange: 8 x 4.0", 1.0" v.c
Woofer: 15", 3.0" v.c

Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor Section
Crossover Frequencies: 180 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ

Power Section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE

Standard Compliance
Safety agency: CE compliant

Physical Specifications
Cabinet/Case Material: Baltic birch plywood
Available Colours: Black, White (RAL 9003)

Size / Weight
Height: 2200 mm / 86.61 inches
Width: 410 mm / 16.14 inches
Depth: 560 mm / 22.05 inches
Weight: 36.4 kg / 80.25 lbs
