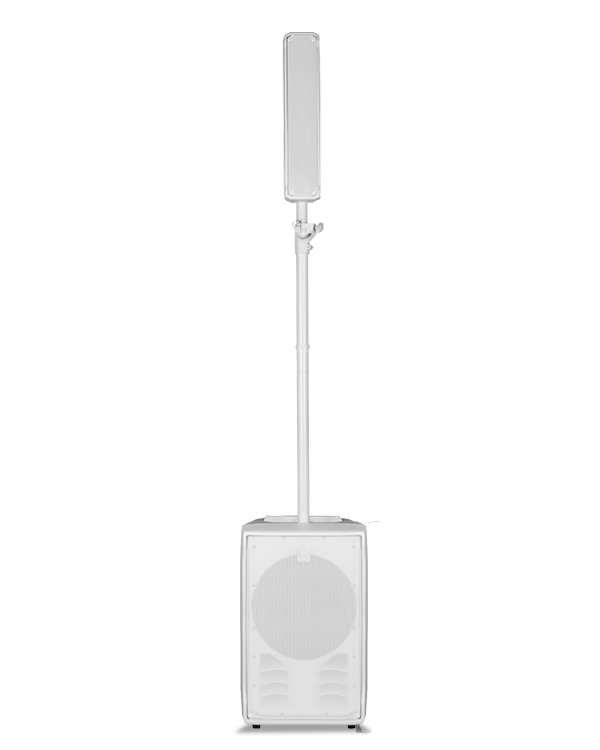

RCF EVOX J8 Active Two-Way Portable Column Speaker Array with 12'' Subwoofer - White
Related Products
Description
Features
• 128 dB Max SPL• 1400 Watt 2-way power
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 23.8/52.5 kg/lbs
Powerful Class D Amplifier
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.Superior transducers
HIGH FREQUENCIES - The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance.LOW FREQUENCIES - The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
J System configurations
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task.Specifications
Acoustical Specifications
Frequency Response: 40 Hz - 20 kHz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Transducers
Fullrange: 8 x 2.0", 1.0" v.c
Woofer: 1 x 12", 2.5" v.c
Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor Section
Crossover Frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line
Power Section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Grille: Steel
Available Colours: Black, White (RAL 9003)
Size / Weight
Height: 2285 mm / 89.96 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 20.2 kg / 44.53 lbs
