RCF EVOX J9 Active Three-Way Portable Column Speaker Array with 12'' Subwoofer - Black
Additional Photos:
Product Videos :
Related Products
Description
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
True 3-Way Design
Neodymium compression driver (1.75" voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° x 40° coverage.The forward radiation of the array of 6x3" neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

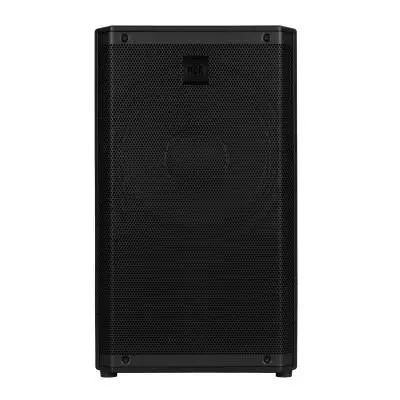

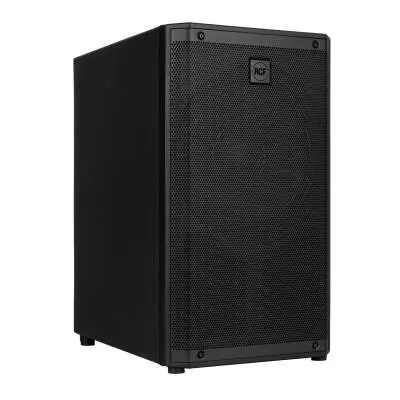

12" RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.

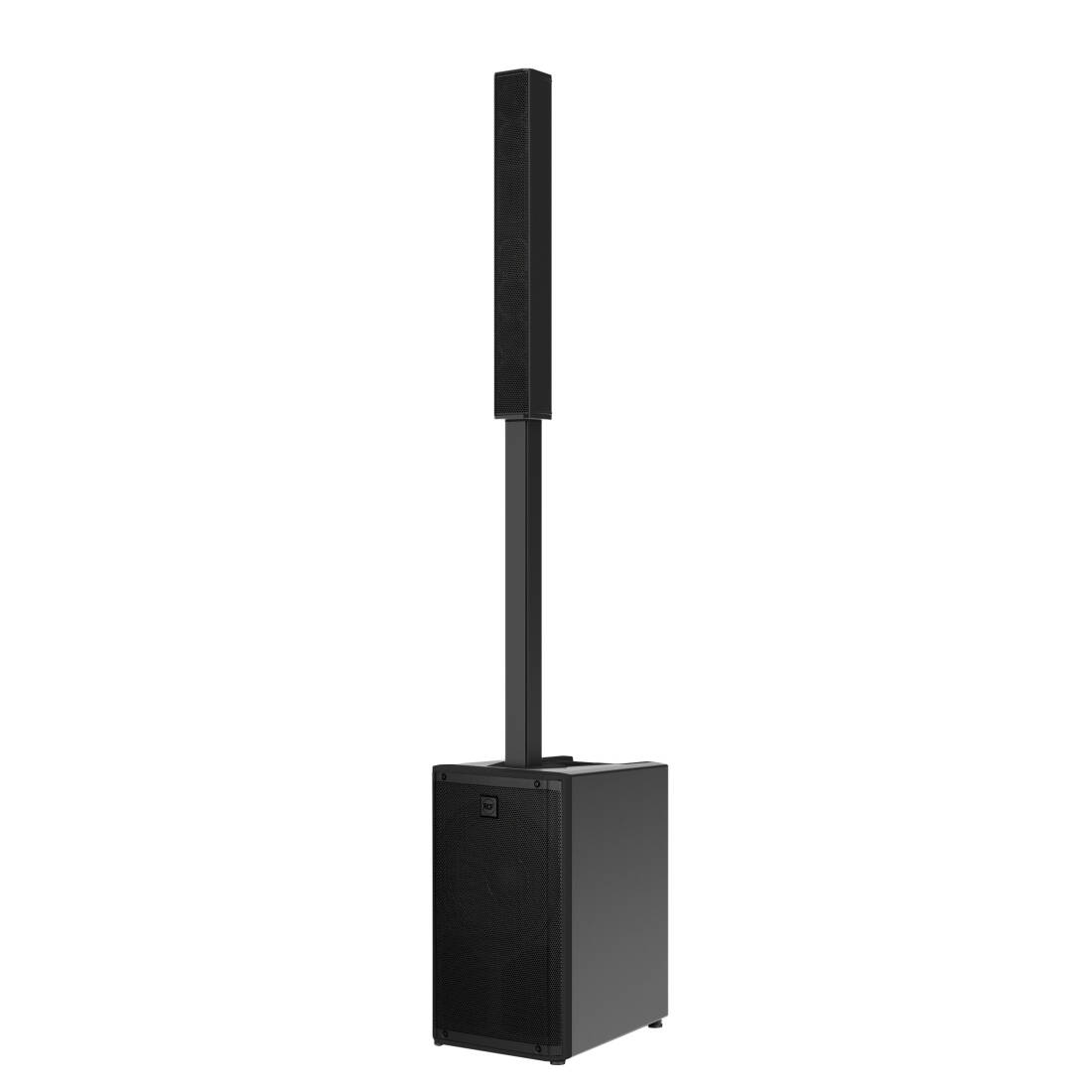

Variable Height Configuration
Black or white finishes, refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family's sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The height of J9 is configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.Every EVOX system includes a padded column transport bag for essential protection.
Features
• 130 dB max SPL• 2100 W Class-D amplifier - Built-in DSP
• 1.75" Neo compression driver - 120° x 40° True Resistive Waveguide
• 6 x 3" Full-range neo transducers
• 12" High-Power Woofer
• Enhanced coverage and clarity
• Composite cabinet with aluminum stand mount
• Sleek, Road-ready design
• Top speaker padded carrying bag included
Specifications
Acoustical SpecificationsFrequency Response: 40 Hz - 20 KHz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75" neo, 1.75" v.c
Fullrange: 6 x 3.0" neo, 1.0" v.c
Woofer: 1 x 12", 2.5" v.c

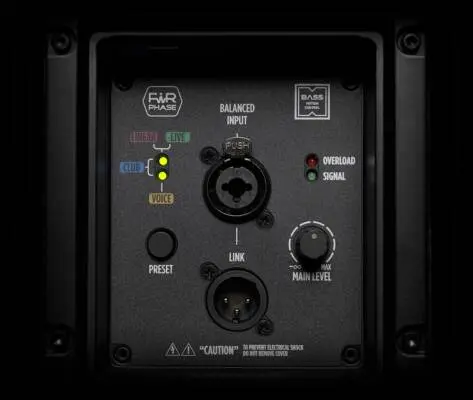

Input/Output Section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor Section
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power Section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Available Colours: Black, White (RAL 9003)
Size / Weight
Height: 2080.1 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 462.6 mm / 18.21 inches
Weight: 28.3 kg / 62.39 lbs
