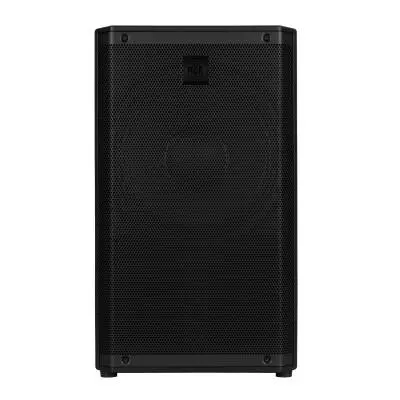

RCF EVOX JMIX9 Active Three-Way Column Music System with Built-In Mixer and DSP - Black
Additional Photos:
Product Videos :
YouTube Video
Your Price: $3,179.00 CDN
or from $147 CDN/mo
2 models to choose from:
Related Products
Description

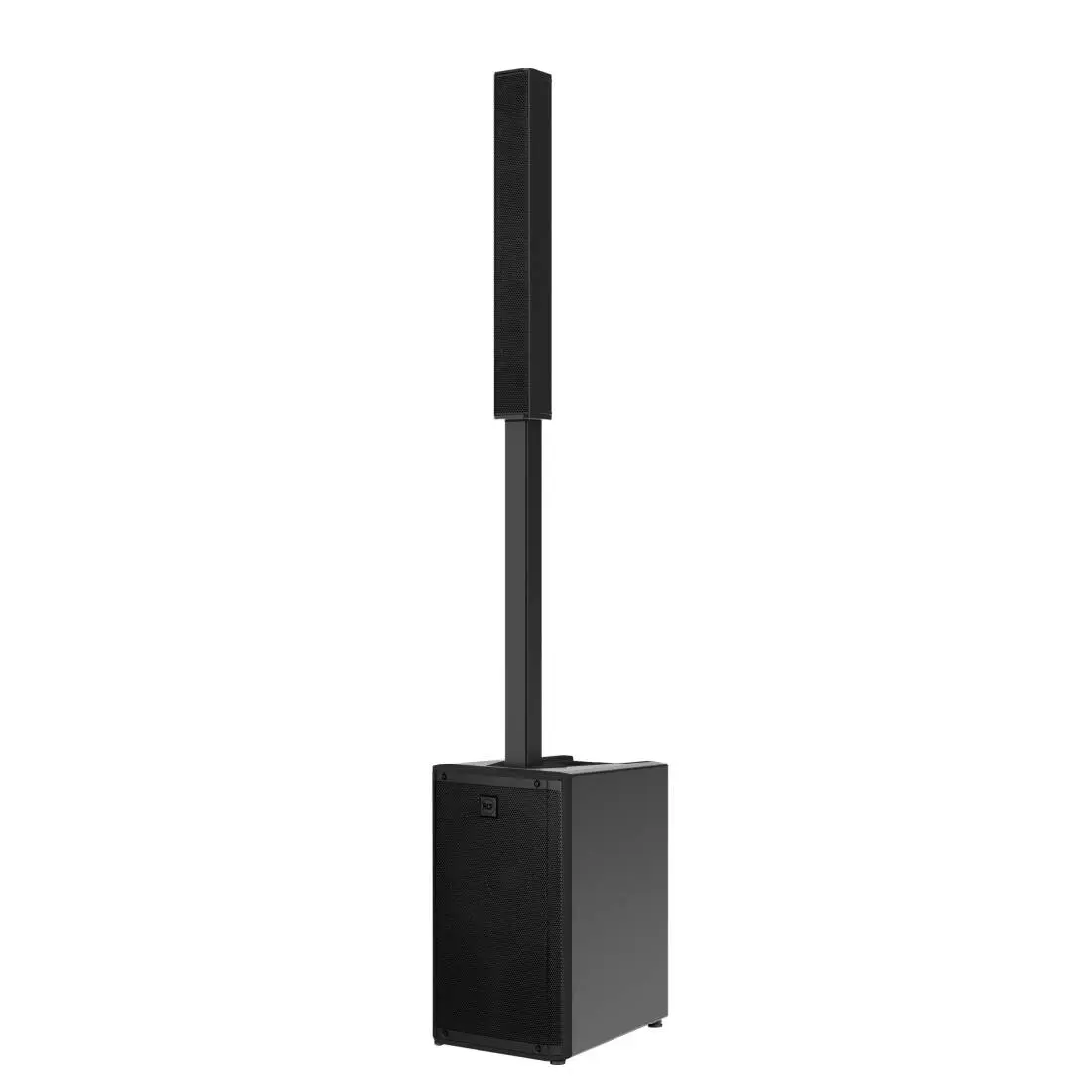

EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a colour touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75" compression driver on a 120° x 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3" transducers and a high-power 12" bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.
• 130 dB max SPL
• 2100 W Class-D amplifier - built-in DSP
• 1.75" Neo compression driver - 120° x 40° True Resistive Waveguide
• 6 x 3" Full-range neo transducers
• 12" High-power woofer
• Enhanced coverage and clarity
• Sleek composite cabinet with aluminum stand mount; variable height configuration
• Top speaker padded carrying bag included

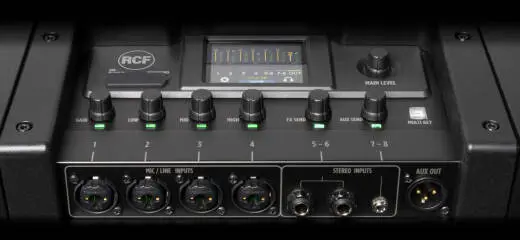

8-Channel Stereo Digital Mixer
The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4" colour touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.
Studio-Quality Input Section
JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT preamps, (each with individual phantom power) and digital gain control. Inputs 14 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 58 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.
Designed for Practical Use
- Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
- High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
- Flexible Audio Ducker, Stereo Reverb send
- Main Output with stereo 8-band EQ
- AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output
The 2.4" colour touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.
AUX Send
Mixer View: Main Mix, FX send, AUX send
Gesture-based switching between views for fast access
Full stereo operation when paired with an EVOX J9
(stereo link-pairing)
Output EQ
Access: press MAIN LEVEL encoder
8-band stereo EQ on Main Mix
4 encoders mapped to EQ band parameters
Programmable MULTI KEY button
Path: SETTINGS > UTILITIES > MULTI FUN KEY
Assignable MUTE: All Outputs, AUX Out, FX Return
Input Edit Page
Access: press/click selected input encoder
Input channel edit: HPF, 3-band EQ, Compressor, Pan
Inputs 14: MIC/LINE selection, Gain, per-channel +48 V
6-encoders row reassigned per function
The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).

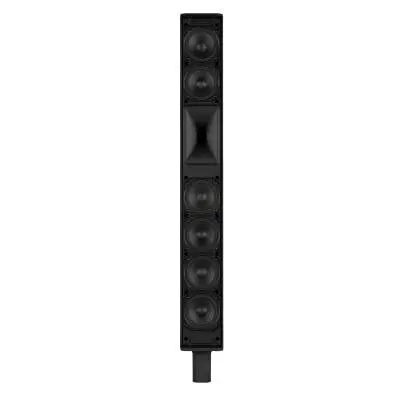

The forward radiation of the array of 6x3" neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.

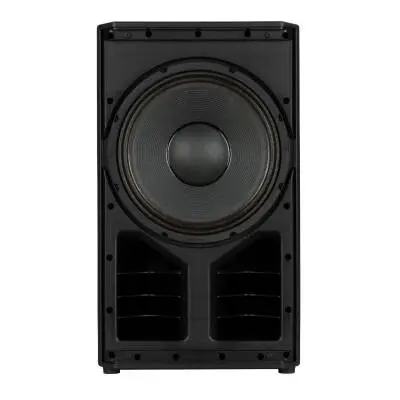

12" RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Frequency Response: 40 Hz - 20 KHz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75" neo, 1.75" v.c
Fullrange: 6 x 3.0" neo, 1.0" v.c
Woofer: 1 x 12", 2.5" v.c
Input/Output Section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor Section
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Digital mixer controlled by touch screen and encoders
Power Section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Electronic Specifications
Frequency Response: 20 Hz - 20 Hz
THD+N, 20dB gain, 0dBu out: 0.003% A-Weighted
Processing
Processing Channels: 8
Signal Processing: 32 Bit
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 114
Inputs
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB - 36 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kohm
Low Cut: 20 Hz - 400 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB - 36 dB
Line Input Impedance: 10 kohm
A/D Dynamic range: 120 dB
Stereo Line: 2
Gain Selection: 0 dB - 0 dB
Stereo Line Input Impedance (kOhm): 24 kohm
Outputs
Main MIX: 1
FX Send: 1
AUX Send: 1
AUX Output: 1
Phones: 1
Outputs Specifications
Main Out Impedance: 150 ohm
Main Out Level: 20 dBu
Aux Out Impedance (ohm): 150 ohm
Aux Out Level: 20 dBu
Phones Out impedance (ohm): 100 ohm
Phones Out Level: 20 dBm
D/A Dynamic Range: 118 dB
Compressors
RCF Compressors: Compressors on MIC/LINE CH1 to CH4 Inputs
EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description
3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
Auxiliary Sends
AUX: 1 PRE/POST
FX POST: 1
Internal Effects
Send Effects: 1
Mastering Processors
Main OUT processors: 1
Main OUT type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Electrical Specifications
Power supply: Internal
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Available Colours: Black, White (RAL 9003)
Size / Weight
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 460 mm / 18.11 inches
Weight: 28.8 kg / 63.49 lbs
Features
• 8-Channel True-Stereo Digital Mixer w/ Bluetooth®• 130 dB max SPL
• 2100 W Class-D amplifier - built-in DSP
• 1.75" Neo compression driver - 120° x 40° True Resistive Waveguide
• 6 x 3" Full-range neo transducers
• 12" High-power woofer
• Enhanced coverage and clarity
• Sleek composite cabinet with aluminum stand mount; variable height configuration
• Top speaker padded carrying bag included
The All-in-One Solution
Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. Its the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.8-Channel Stereo Digital Mixer
The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4" colour touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.
Studio-Quality Input Section
JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT preamps, (each with individual phantom power) and digital gain control. Inputs 14 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 58 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.
Designed for Practical Use
- Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
- High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
- Flexible Audio Ducker, Stereo Reverb send
- Main Output with stereo 8-band EQ
- AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output
Quick Workflow
The 2.4" colour touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.
AUX Send
Mixer View: Main Mix, FX send, AUX send
Gesture-based switching between views for fast access
Full stereo operation when paired with an EVOX J9
(stereo link-pairing)
Output EQ
Access: press MAIN LEVEL encoder
8-band stereo EQ on Main Mix
4 encoders mapped to EQ band parameters
Programmable MULTI KEY button
Path: SETTINGS > UTILITIES > MULTI FUN KEY
Assignable MUTE: All Outputs, AUX Out, FX Return
Input Edit Page
Access: press/click selected input encoder
Input channel edit: HPF, 3-band EQ, Compressor, Pan
Inputs 14: MIC/LINE selection, Gain, per-channel +48 V
6-encoders row reassigned per function
Wireless Control
The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).
True 3-Way Design
Neodymium compression driver (1.75" voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° x 40° coverage.The forward radiation of the array of 6x3" neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
12" RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Specificatons
Acoustical specificationsFrequency Response: 40 Hz - 20 KHz
Max SPL @ 1m: 130 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 40°
Transducers
Compression Driver: 1 x 0.75" neo, 1.75" v.c
Fullrange: 6 x 3.0" neo, 1.0" v.c
Woofer: 1 x 12", 2.5" v.c
Input/Output Section
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor Section
Crossover Frequencies: 200 Hz/1800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Digital mixer controlled by touch screen and encoders
Power Section
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Electronic Specifications
Frequency Response: 20 Hz - 20 Hz
THD+N, 20dB gain, 0dBu out: 0.003% A-Weighted
Processing
Processing Channels: 8
Signal Processing: 32 Bit
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 114
Inputs
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB - 36 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kohm
Low Cut: 20 Hz - 400 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB - 36 dB
Line Input Impedance: 10 kohm
A/D Dynamic range: 120 dB
Stereo Line: 2
Gain Selection: 0 dB - 0 dB
Stereo Line Input Impedance (kOhm): 24 kohm
Outputs
Main MIX: 1
FX Send: 1
AUX Send: 1
AUX Output: 1
Phones: 1
Outputs Specifications
Main Out Impedance: 150 ohm
Main Out Level: 20 dBu
Aux Out Impedance (ohm): 150 ohm
Aux Out Level: 20 dBu
Phones Out impedance (ohm): 100 ohm
Phones Out Level: 20 dBm
D/A Dynamic Range: 118 dB
Compressors
RCF Compressors: Compressors on MIC/LINE CH1 to CH4 Inputs
EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description
3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output.
Auxiliary Sends
AUX: 1 PRE/POST
FX POST: 1
Internal Effects
Send Effects: 1
Mastering Processors
Main OUT processors: 1
Main OUT type: MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT.
Electrical Specifications
Power supply: Internal
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top
Pole mount/Cap: Quick-fit socket
Grille: Steel
Available Colours: Black, White (RAL 9003)
Size / Weight
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 460 mm / 18.11 inches
Weight: 28.8 kg / 63.49 lbs
