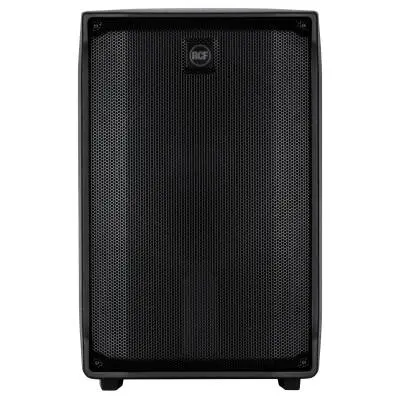

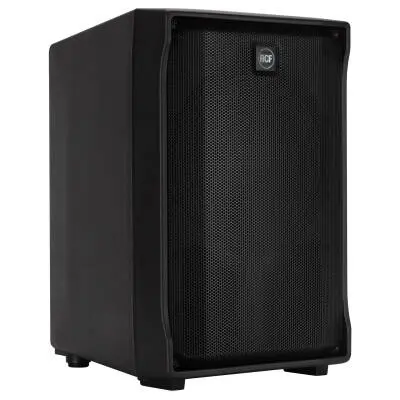

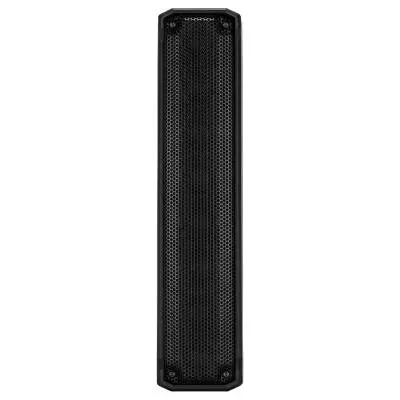

RCF EVOX JMIX8 Active Two-Way Array Music System with Built-In Mixer and DSP - Black

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

EVOX APP
The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer's parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

Superior Transducers

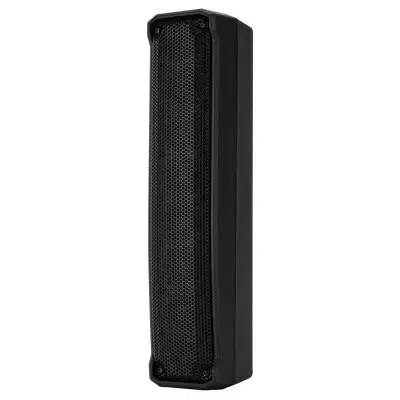

HIGH FREQUENCIES - The ultra-compact full-range 2" RCF drivers are capable of handling high SPL and power with a stunning sound performance.

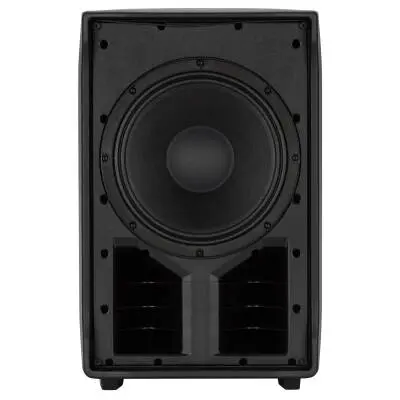

LOW FREQUENCIES - The high excursion 12" RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

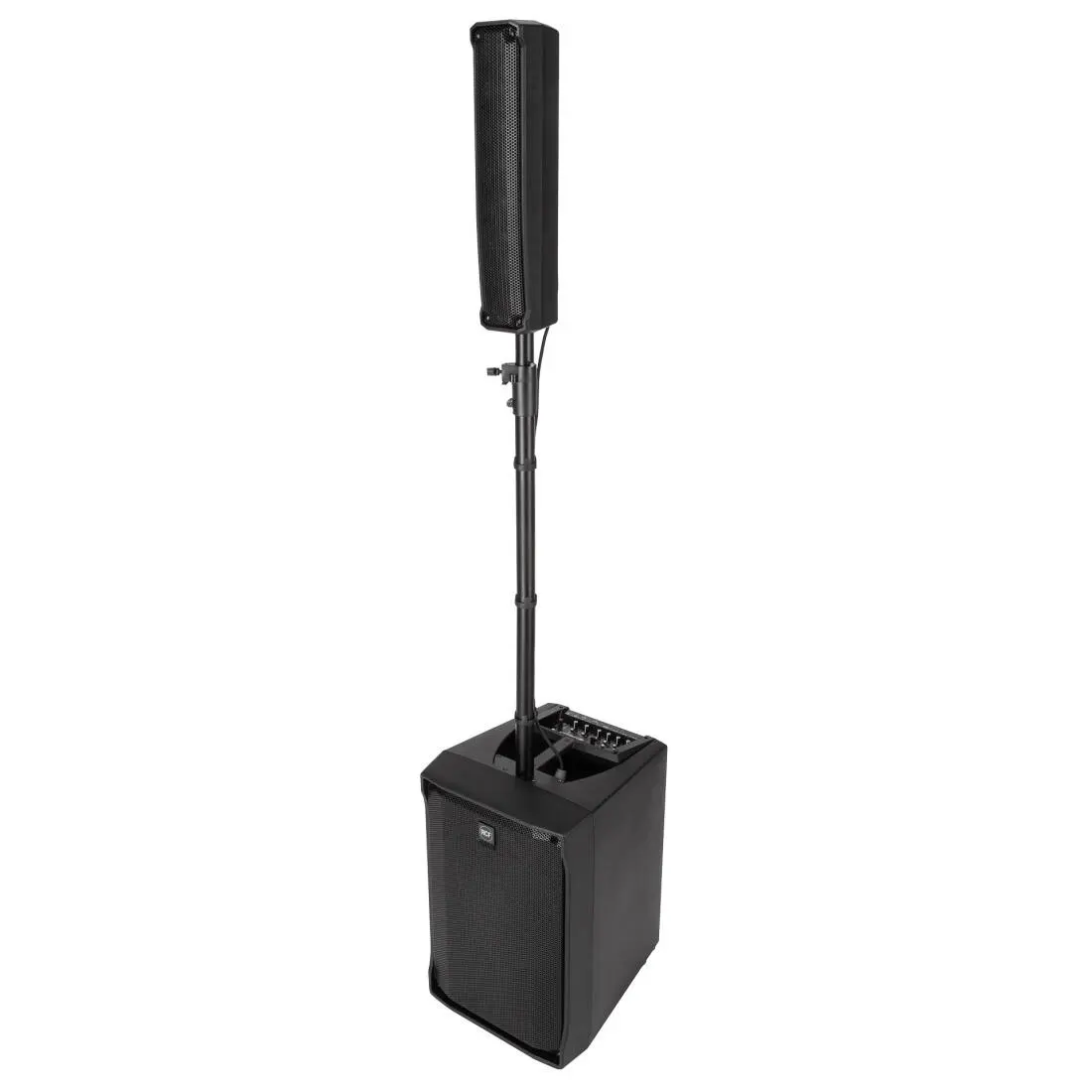

J System Configurations

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task.

Features

• 128 dB Max SPL
• 1400 Watt 2-way power

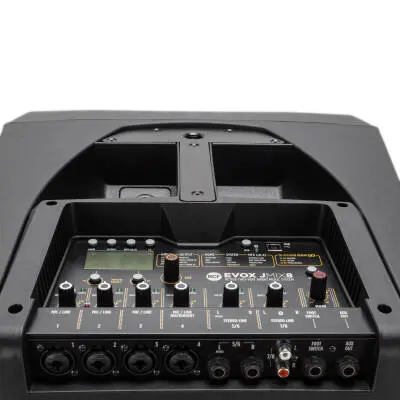

• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 24.4 kg /53.8 lbs

Specifications

Acoustical specifications
Frequency Response: 40 Hz - 20 kHz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°

Transducers
Fullrange: 8 x 2.0", 1.0" v.c
Woofer: 1 x 12", 2.5" v.c

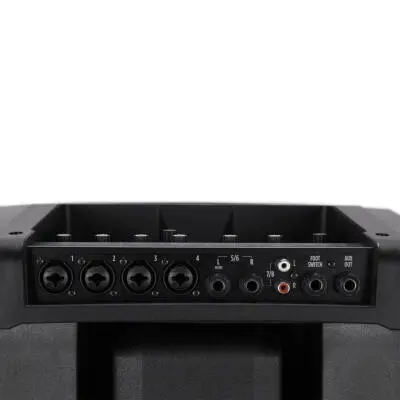

Input/Output Section
Input signal: bal/unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

Processor Section
Crossover Frequencies: 220 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Boost, Mic/Line

Power Section
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: VDE

Electronic Specifications
Frequency Response: 20 Hz - 20 Hz
THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted

Processing
Processing Channels: 8
Signal Processing: 32 Bit Floating Point
A/D-D/A conversion: 24 Bit @ 48.0 kHz
Dynamic range: 108

Inputs
Mic: 4
Remote Controlled Storable Gain: Yes
Gain Range: 0 dB - 45 dB
Input Noise Level: -114 dBu A-Weighted
Mic Inputs Impedance: 3 kohm
Low Cut: 20 Hz - 1000 Hz
Phantom Power +48V: Yes
Mono Line: 4
Gain Selection: 0 dB - 45 dB
Line Input Impedance: 11 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
A/D Dynamic range: 108 dB
Stereo Line: 2
Gain Selection: 0 dB - 45 dB
Stereo Line Input Impedance (kOhm): 11 kohm

Outputs
AUX Send: 1
AUX Output: 1

Outputs Specifications
Main Out Impedance: 150 ohm
Main Out Level: 19 dBu
Aux Out Impedance (ohm): 150 ohm
Aux Out Level: 19 dBu
D/A Dynamic Range: 108 dB

Compressors
RCF Compressors: 4 mono (6 preset)

EQ
Input Channels EQ: 1 Semi Parametric / 2 Shelving
Description
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
Graphic 7 Band EQ on Main Mix and AUX send.

Auxiliary Sends
AUX: 1 PRE/POST
FX POST: 1

Internal Effects
Send Effects: 1
MultiFX Insert Effects: 1

Mastering Processors
Main OUT processors: 1

USB Audio
Play trk: 2

Other Features
Footswitch: Yes

Electrical Specifications
Power supply: Internal

Standard Compliance
Safety agency: CE compliant

Physical Specifications
Cabinet/Case Material: PP Composite
Handles: 1 Top

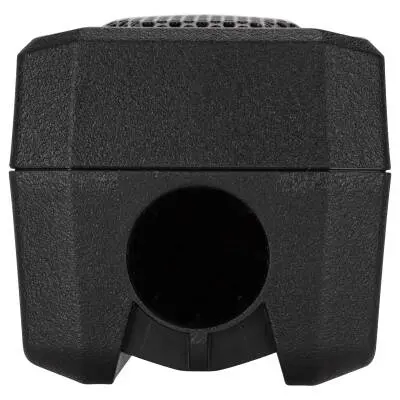

Pole mount/Cap: M20 thread
Grille: Steel

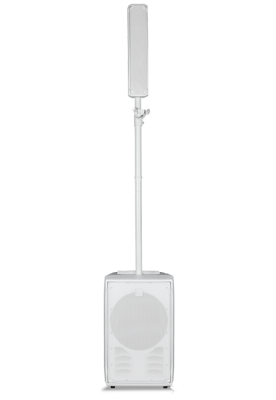

Available Colours: Black, White (RAL 9003)

Size / Weight
Height: 623 mm / 24.53 inches
Width: 400 mm / 15.75 inches
Depth: 460 mm / 18.11 inches
Weight: 22.2 kg / 48.94 lbs
