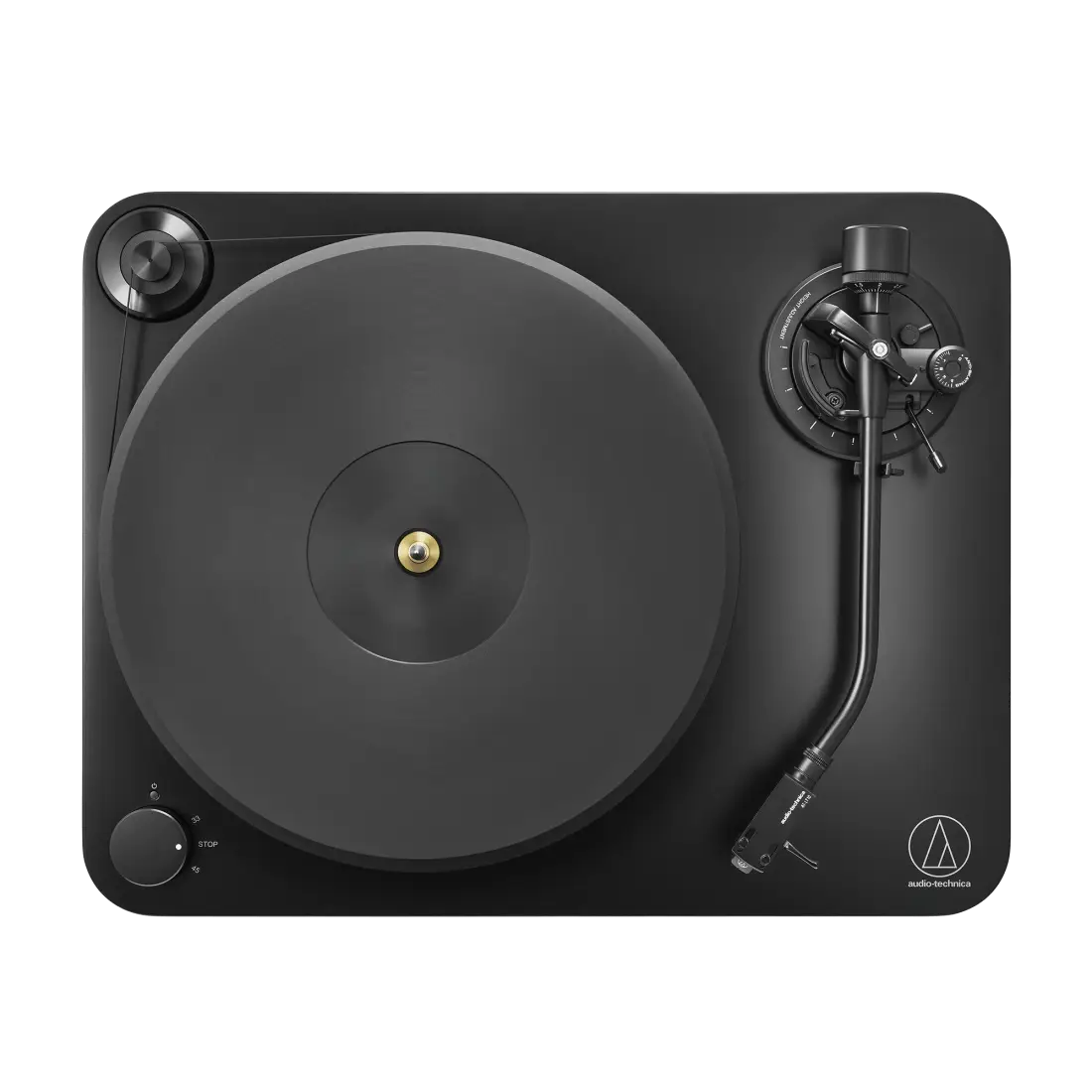

Audio-Technica AT-LP7X Fully Manual Belt-Drive Turntable
Additional Photos:
Related Products
Description
In designing the LP7X, Audio-Technica paid special attention to chassis geometry, ensuring that the platter, spindle, and tonearm were optimally positioned for accurate, distortion-free tracking. The J-shaped aluminum tonearm, inspired by classic A-T models of the 1960s and '70s, features a dual-axis gimbal with precision ball bearings to further enhance tracking performance.
The AT-LP7X is ideal for those interested in experimenting with alternate cartridges. The tonearms VTA (vertical tracking angle) adjustment and 16 g subcounterweight allow you to use a broad range of other cartridges and headshells with a combined weight of up to 23.5 g. (A 32 g subcounterweight, available separately, enables the use of even heavier cartridge/headshell combinations.) With its built-in switchable phono pre-amplifier, the AT-LP7X also gives you the option of using MC (moving coil) cartridges.
Features
• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM• Heavy 40 mm MDF (medium density fiberboard) cabinet construction reduces resonance and vibration for clearer sound
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• 20 mm-thick, high-density acrylic platter offers high rotational inertia to spin records at a consistent speed (no platter mat required)
• J-shaped tonearm with adjustable VTA (vertical tracking angle)
• AT-VM95E BK (black) cartridge (0.3 x 0.7 mil elliptical stylus) pre-mounted to the lightweight AT-LT10 removable headshell
• AT-VM95 cartridge is compatible with most VM95 Series replacement styli, offering a wide choice of options for every budget and application
• Included 16 g subcounterweight provides an expanded cartridge/headshell weight range of 14.023.5 g
• A larger 32 g subcounterweight is available separately to enable the use of cartridge/headshell combinations up to 28.5 g
• Adjustable anti-skate control to counter the inward force the styli experiences during playback
• Built-in switchable phono pre-amplifier with selectable modes for MM (moving magnet) or MC (moving coil) cartridges
• Includes dual RCA (male) to dual RCA (male) stereo cable with ground, 45 RPM adapter, and removable dust cover
Specifications
Motor: DC servo motorDrive Method: Belt drive
Speeds: 33-1/3 RPM, 45 RPM
Turntable Platter: 20 mm (0.79") thick acrylic platter
Wow and Flutter: 0.1% (WTD) at 3 kHz (JIS)
Signal-to-Noise Ratio: 60 dB
Output Level PHONO: 4.0 mV nominal at 1 kHz, 5cm/sec
LINE: 252 mV nominal at 1 kHz, 5cm/sec
Phono Pre-Amp Gain MM: 36 dB nominal, RIAA equalized
MC: 56 dB nominal, RIAA equalized
Power Consumption: 5.5 W
Operating Temperature5°C to 35°C (41°F to 95°F)
