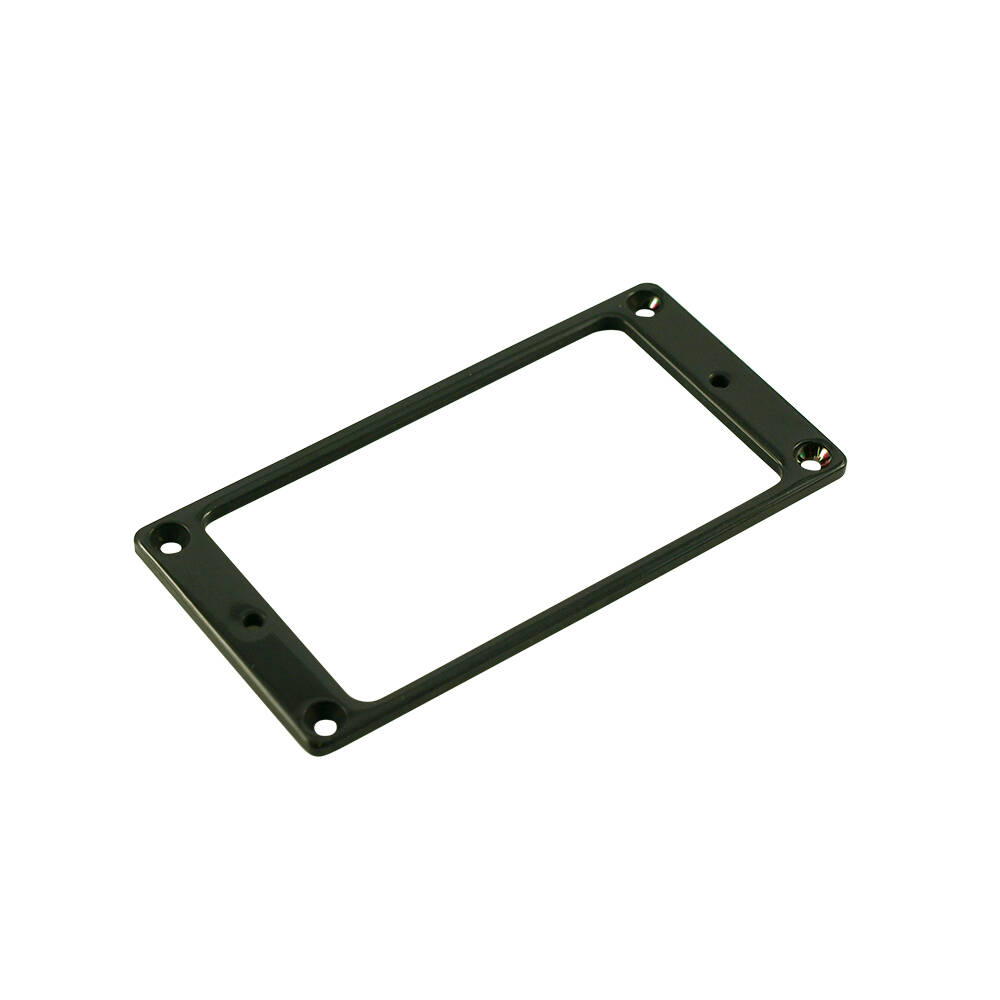

WD Music Low Profile Metal Humbucker Pickup Mounting Ring - Black

The ES16 is a flat metal mounting ring designed for use on flat top electrics where a limited range of up and down motion is required. This is unlike a raised plastic ring which has internal space into which the pickup tabs can move up into.

Specifications

- Thickness of ring: 3/32 in. (2.5mm)
- Outer Dimension Length: 3 31/64 in. (88.7mm)
- Outer Dimension Width: 1 25/32 in. (45.1mm)
- Pickup Cutout Length: 2 25/32 in. (70.75mm)
- Pickup Cutout Width: 1 17/32 in. (39.08mm)
- Mounting Hole Location Length apart: 3 5/32 in. (80.2mm)
- Mounting hole location Width: 1 15.32 in. (37.25mm)
- Pickup Mounting Screw Holes: 3 5/64 in. (78.1mm)
