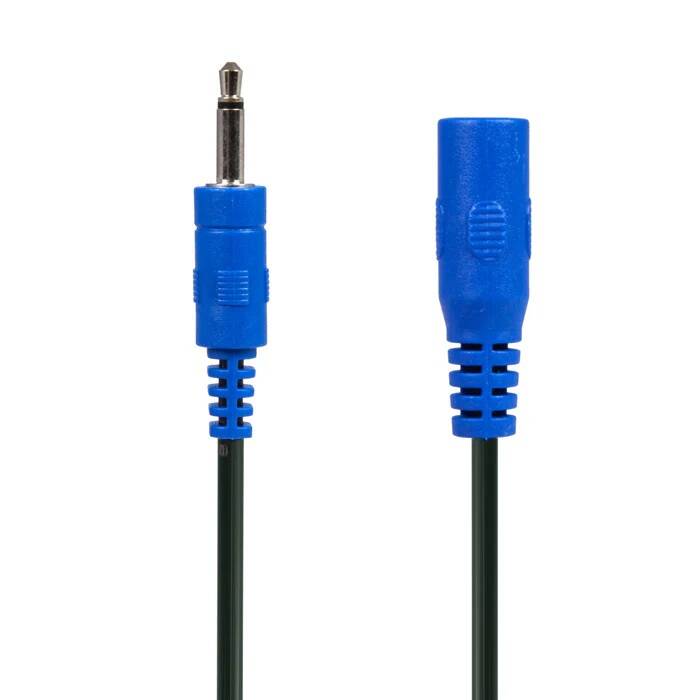

Power-All Cable - Blue 3.5mm Phone Plug Extension Jumper

The Cable-Blue Adapter converts a standard 5.5 mm Barrel Plug to a 3.5 mm (1/8) Phone Plug.

The Cable-Blue is wired so that the pin (tip) of the female barrel plug connects to the sleeve of the male phone plug.

If connected to a standard, tip-negative power source, this will provide a positive (+) polarity on the tip of the male phone plug.

Features

• 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M Cable may be required to connect C-BL to brick-style power supplies)
• 1 x straight Phone Plug to connect to pedals or other cables
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

Specifications

Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
Male Phone Plug (1): 3.5 mm O.D.; 15 mm plug length
Cable: 26-gauge, OFC with oil-resistant vinyl sheath
Length: 12" (approx. 305 mm) cable length between plugs
