Power-All Cable - Green Line-6 Extension Jumper

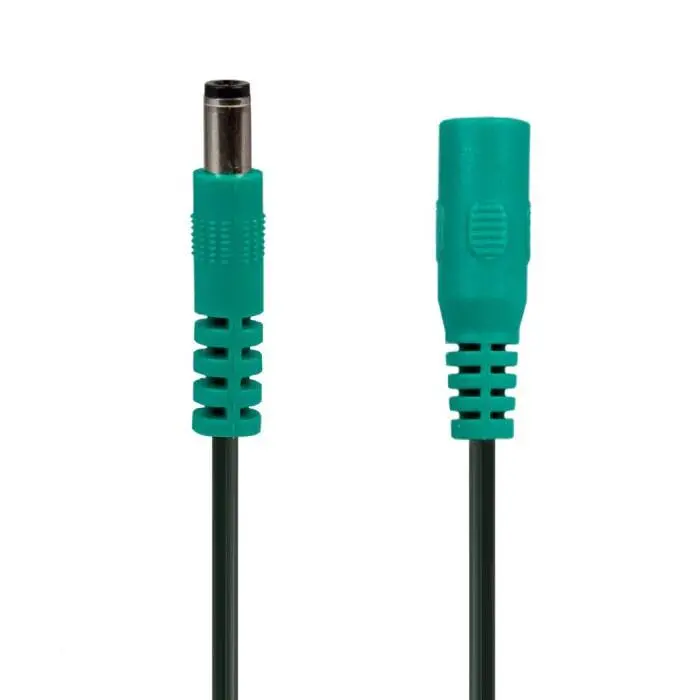

The Cable-Green Adapter features a male barrel plug with a larger, 2.5 mm internal diameter and reverse polarity. It can be used to power Line 6 Modeler pedals from the Power-All. It can also be used with pedals from other manufacturers such as Electro-Harmonix, Digitech, etc. that have a larger 2.5 mm pin on their power jack.

Features

• 1 x Female barrel jack to connect to Power-All or other power source (C-M/M & C-BL cable may be required to connect C-GN to brick-style power supplies)
• 1 x straight male barrel plug with 2.5 mm I.D. and reverse polarity to connect to pedals or other cables
• Spring-loaded male plugs to reduce chance of disconnection
• NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient

Specifications

Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
Male Barrel Plug (1): 5.5 mm O.D.; 2.5 mm I.D.; 10 mm barrel length
Cable: 26-gauge, OFC with oil-resistant vinyl sheath
Length: 12" (approx. 305 mm) cable length between plugs
