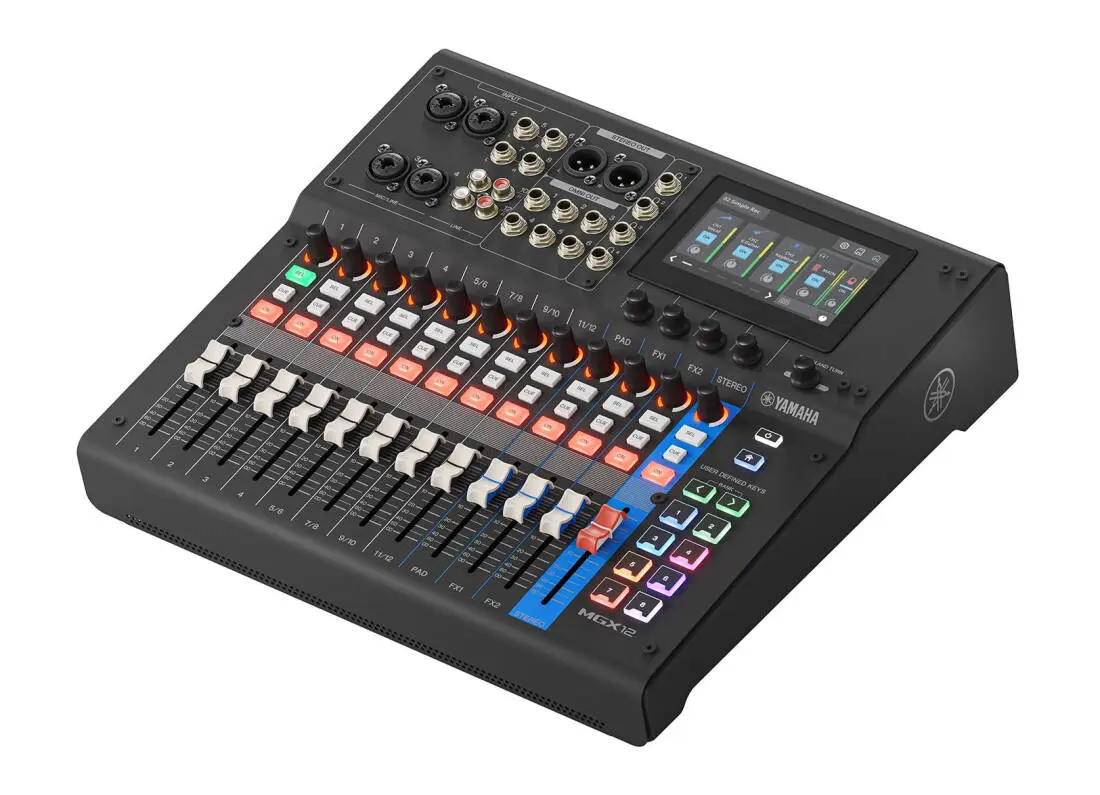

Yamaha MGX12 18-Channel Digital Mixing Console

The MGX12V is a compact Video interface-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The MGX12V offers superb sound quality, intuitive and fast setup and operation, and professional-level features.

Features

• 11 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
Input mixing channels: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
Busses: 1 STEREO + 8 MIX
Local Inputs: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
Local Outputs: 2 XLR, 6 TRS Phone, 4 Headphones
USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
HDMI-to-USB video/audio input with capture function and real-time HDMI passthrough
Built-in DSP processor for professional sound and latency-free monitoring

Specifications

I/O Connectors
Analog Input: 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
Analog Output: 2 XLR, 6 TRS
USB TO HOST: 2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit)
Phones: 4 TRS (100 mW+100 mW @40 Ohm)
DC: 1 (Barrel type, DC power IN)
microSD Card Slot: 1
Bluetooth: 1 Bluetooth audio input (Bluetooth 5.0, A2DP)
User Interface: 4.3-inch touch screen, 12 x 60 mm fader, 12 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN")

Recording & Playback
USB: 18-track recording, 18-track playback
USB (SUB): 2-track recording, 2-track playback
microSD Card: Up to 16-track recording, 2-track playback
Sampling frequency rate: 96 kHz - 44.1 kHz
Signal delay: Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz)
Frequency response: +0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min.
Dynamic range: 125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min.
Total harmonic distortion: Less than 0.002% 20 Hz to 20 kHz@+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min.

Hum & noise level
Equivalent input noise: -128 dBu typ., Input Gain= Max.
Residual output noise: -108 dBu, ST main off
Crosstalk: -120 dB, adjacent INPUT/STEREO OUT channels, Input Gain= Min. @1 kHz
Gain range: 86 dB
Power requirements: DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz)
