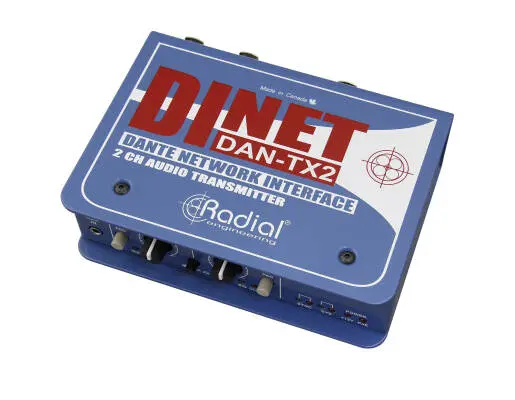

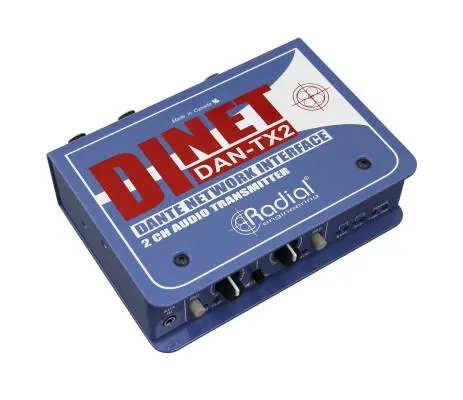

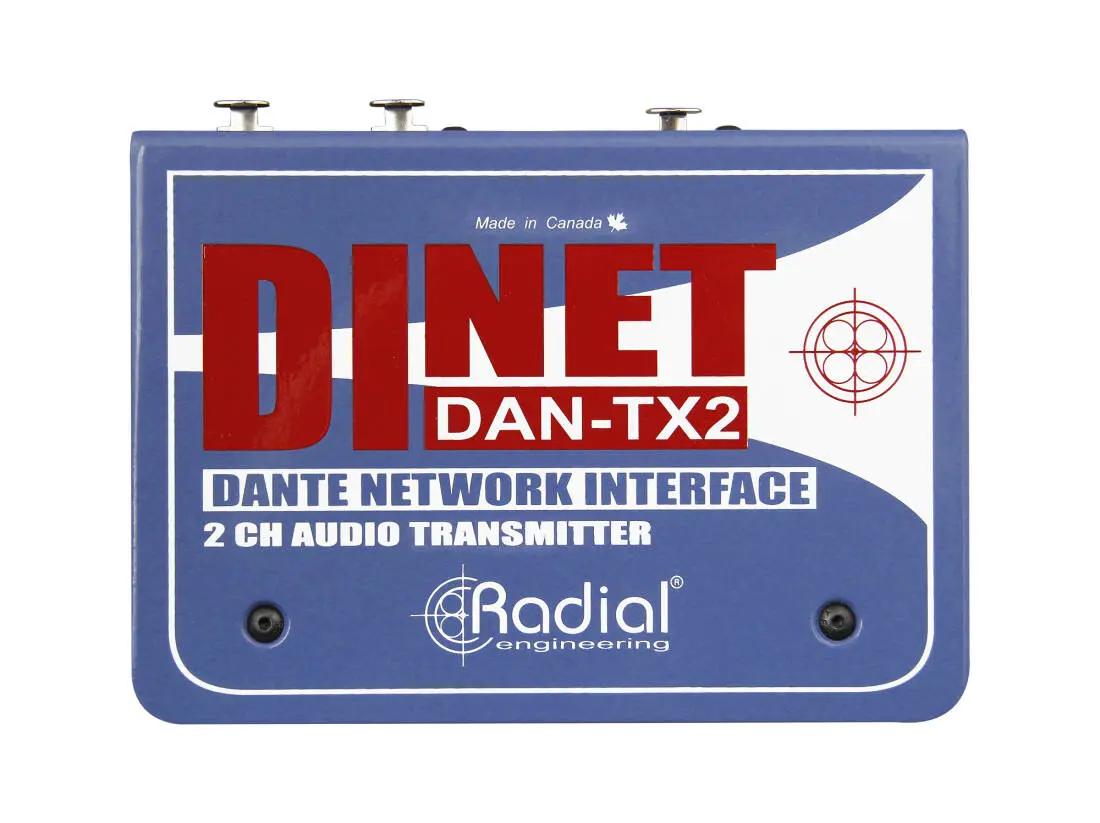

Radial DiNET DAN-TX2 2-Channel Dante Network Transmitter
Additional Photos:
Related Products
Description
Two Channels of Analog Audio over Dante
The DAN-TX2 is a 2-Channel analog-to-digital converter that allows you to connect any line level source to a Dante or AES67-compliant network.
Interfacing with a Dante network is easy - simply connect the DAN-TX2 Ethernet jack to any networked audio system using standard Cat5e or Cat6 cable. Multiple input options are provided, including dual XLR/TRS combo connectors for professional audio equipment, and a 3.5mm aux input for easy connection to laptops, smartphones, and tablets. Levels can be controlled locally with input trims pots and -18dB pad switches, with signal presence and clip indicators for each channel. When used with stereo signals, a Link switch allows both left and right inputs to be controlled with the trim pot and pad switch on Channel 1 to easily adjust both signals in tandem. The DAN-TX can accept input levels up to +24dBu, and uses 24bit/96kHz processing to convert these analog signals to the Dante protocol.
Features
• Connect any line level source to a Dante network• XLR, 1/4" TRS, and 3.5mm stereo inputs
• 24bit/96kHz analog to digital conversion
• Handles signal levels up to +24dBu
• Compliant to AES67 specifications
• Powered via external supply or Power over Ethernet (PoE)
• DC power adapter included
Specifications
Audio circuit type: High current balanced active input deviceNumber of channels: 2
Frequency response: 20Hz-20kHz
Dynamic range: > 103dB
Total harmonic distortion: 0.008% @ -6dBfs
Intermodulation Distortion: 0.0017% -10dBfs
Input Impedance: 40kOhm (Balanced); 20kOhm (Unbalanced)
Equivalent Input Noise: -98dB
Sample Rate: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
Maximum Input: +28dBu
Input Connectors: 2x XLR/TRS combo, 3.5mm TRS
Output Connectors: RJ45 Ethernet with locking etherCON
Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: > 85dB; Power Consumption: 1.25W
Construction: 14-gauge steel
Finish: Durable powder coat
Size (L x W x D): 121 x 6 x 147mm (4.5" x 2" x 6")
Power: 15VDC 400mA (included) or PoE
Conditions: For use in dry locations only between 5°C and 40°C
