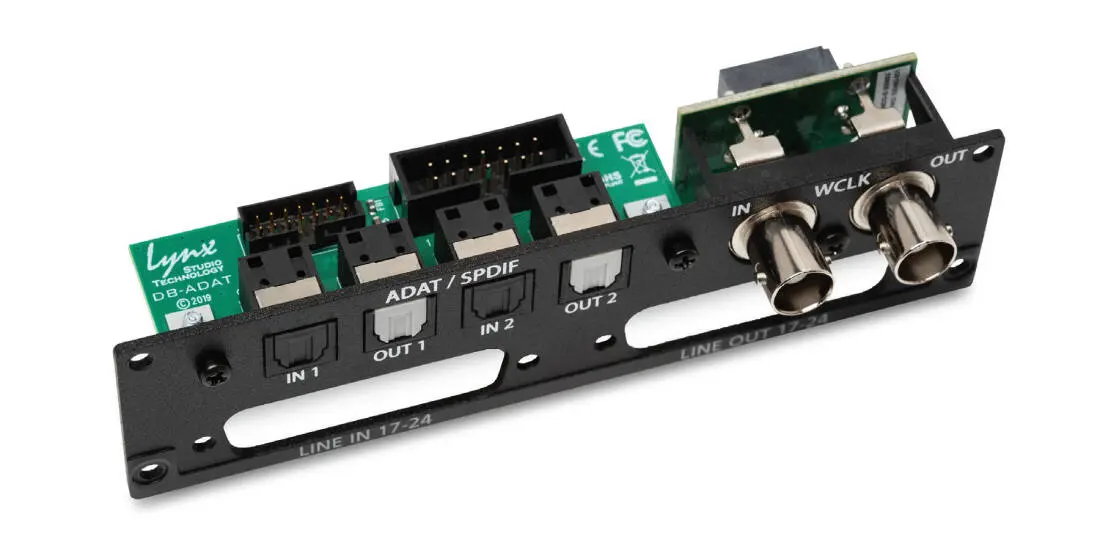

Lynx Studio Technologies Aurora(n) ADAT Daughter Board for the LM-DIG AES/EBU Digital I/O Module

Now the industry-leading Aurora(n) interface can be configured to connect directly with other audio devices that support ADAT and/or S/PIDF protocol. With its 300,000:1 jitter reduction capability, Aurora's SynchroLock 2 technology provides immunity to high levels of jitter which is typical in optical signals. The DB-ADAT also allows Aurora to function as a bi-directional format converter, converting ADAT to AES/EBU and analog and back to ADAT.

Features

• ADAT daughter board for the LM-DIG AES/EBU digital I/O module
• Provides ADAT and S/PIDF connectivity when paired with an LM-DIG in an Aurora(n) Interface
• 4 high-quality optical connectors with two inputs and two outputs

The DB-ADAT Supports

- 8 channels per port (16 total ADAT channels of I/O) at 44.1k and 48k
- 4 channels per port (8 total ADAT channels of l/O) at 88.2k and 96k
- 2 channels per port (4 total ADAT channels of I/O) at 176.4k and 192k ADAT
