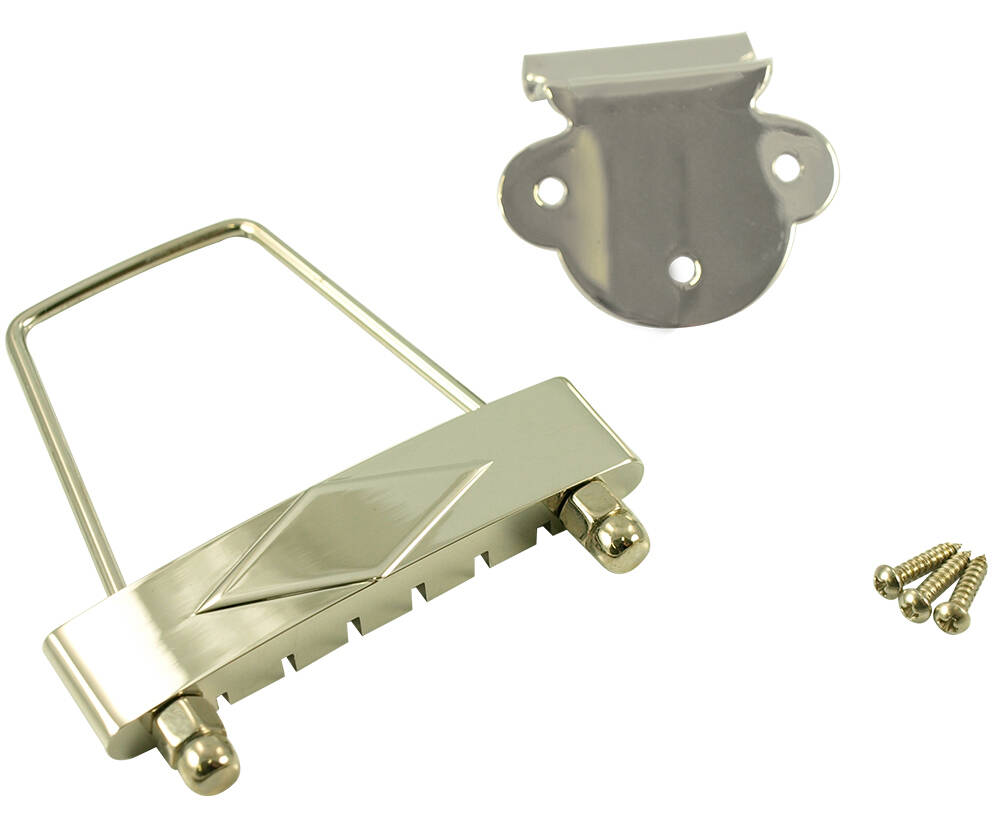

WD Music Replacement 335 Style Tailpiece, Short - Nickel
Related Products
Description
This is a short version of the standard ES-335 style tailpiece which was also used on many arched top instruments.
Side to Side width at bar = 3 9/32 inches
Width of string bar = 47/64 inches
String Spacing at Bar = 1 61/64 inches
Hinge/Mounting Specs:
Mounting Area of Hinge length = 1 1/2 inches
Mounting Area of Hinge Width - 2 inches
Mounting hole location bottom center = 11/32 inch from bottom edge
Two Mounting hole locations from side edges = 5/16 inches
Two mounting hole locations Apart from eachother = 1 25/64 inches
Upper side of hinge length = 1 1/8 inches
Upper side of Hinge width = 1 25/64 inches
Specifications
Overall length of Tailpiece not including hinge = 3 1/8 inchesSide to Side width at bar = 3 9/32 inches
Width of string bar = 47/64 inches
String Spacing at Bar = 1 61/64 inches
Hinge/Mounting Specs:
Mounting Area of Hinge length = 1 1/2 inches
Mounting Area of Hinge Width - 2 inches
Mounting hole location bottom center = 11/32 inch from bottom edge
Two Mounting hole locations from side edges = 5/16 inches
Two mounting hole locations Apart from eachother = 1 25/64 inches
Upper side of hinge length = 1 1/8 inches
Upper side of Hinge width = 1 25/64 inches
Q & A
There are currently no questions for this product.
Reviews
There are currently no reviews for this product. Be the first to write one!
Reserve in Store
| Product | SKU | Qty |
|---|---|---|
| Replacement 335 Style Tailpiece, Short - Nickel | 843052 |
