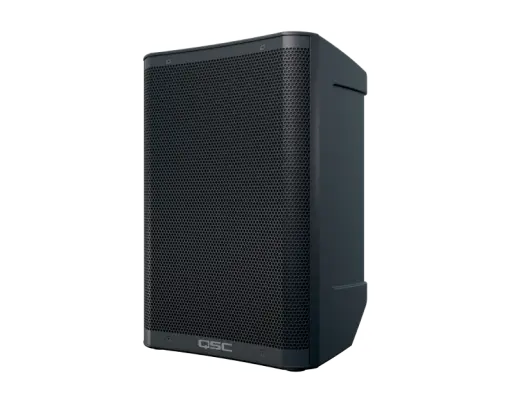

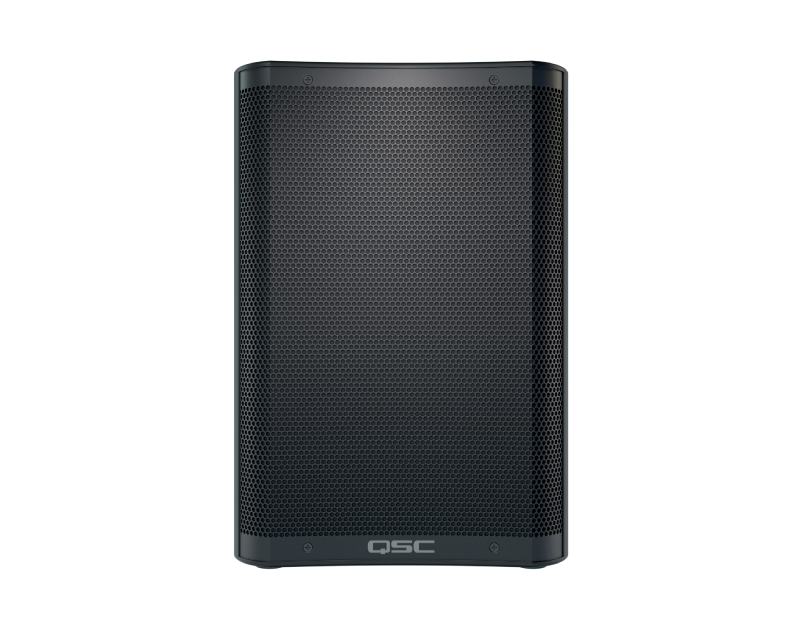

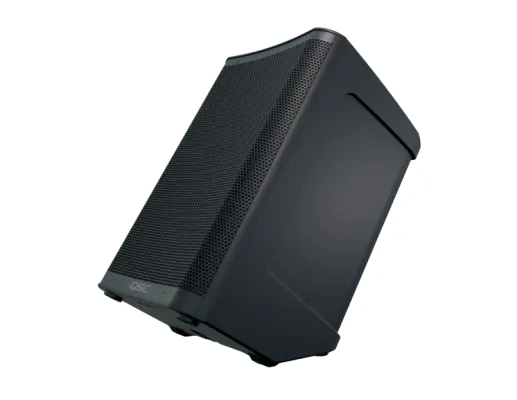

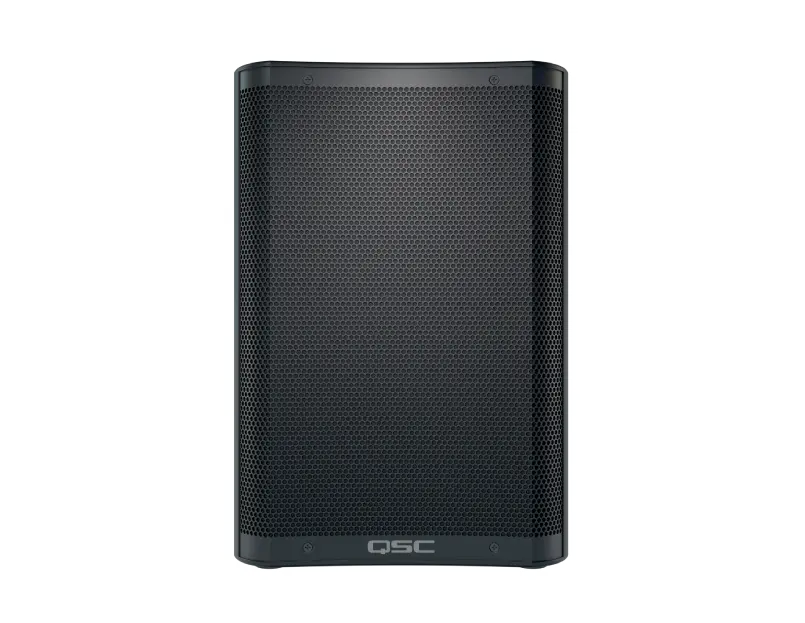

QSC CB10 Compact Battery-Powered Loudspeaker System
Additional Photos:
Related Products
Description
Features
• 440 watts of peak power (Class D)• 10-inch woofer
• 1-inch HF compression driver
• 127 dB @ 1 m (peak SPL)
• Two combo XLR inputs with independent Factory Presets
• QSC Loudspeaker Control App (iOS & Android) for convenient system remote control
• 200 ms (max) of room delay
• Large carry handle on the enclosure top
• Lightweight and portable
• 30 degrees tilt back (floor deployment)
• Integrated pole cup (stand deployment)
• Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
• User-installable/removable battery pack
• AC power for unlimited steady operation
Specifications
Configuration: Two-way Rechargeable Loudspeaker SystemLF Transducer: 254 mm (10-inch), cone
HF Transducer: 25.4 mm (1-inch), compression driver
Frequency Response (-6 dB): 51 Hz - 18 kHz
Frequency Range (-10 dB): 47 Hz - 20 kHz
Nominal Coverage Angle:90° Axisymetric
Maximum Rated SPL1: 127 dB @ 1 m
Amplification (peak): Class D, 440 W
Cooling: Convection cooling

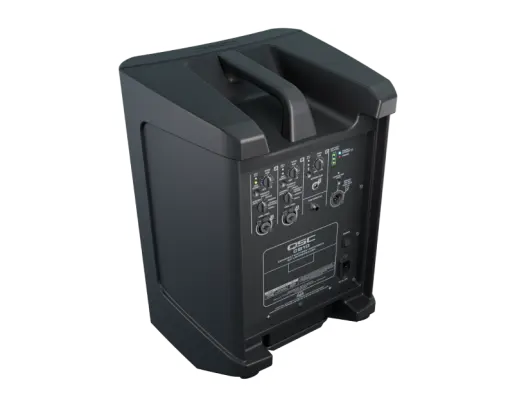

Backpanel Controls: 3 x Rotary level potentiometers (Gain)
2 x MIC Boost Push-Switch
2 x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
1 x Bluetooth Switch
1 x Output Select Switch
1 x AC Power Switch
Loudspeaker Control App Functions: Input Channels: Gain Control, Presets (Channels A and B), EQ
Reverb (Channels A and B)
Ducker (Channel A)
Contour Selection
Custom Output Routing
Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost
Bluetooth Audio Configuration
Loudspeaker Firmware Updates
Backpanel Indicators: 3 x Input Signal/Clip LEDs
2 x MIC selected LEDs
3 x Battery Charge LEDs
1 x Limiter Active LED
1 x Bluetooth LED
1 x Output Select LED
1 x Power/Standby LED
Connectors: 2 x locking XLR/F 1/4 inch combo (Line Input and Mic/Line Input)
1 x 3.5 mm TRS (Stereo Input)
1 x 6.3 mm TS (Footswitch)
1 x XLR/M (Mix Output)
1 x locking IEC Power Connector
DC Power (Battery): Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module (1x unit included with CB10)
Battery life: up to 12 hours / Battery charging time: approx. 4 hours
AC Power Input:Universal Power Supply: 100-240 VAC, 50/60 Hz
AC Power Consumption2:100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
Enclosure Material:Polypropylene
Color:Black (RAL 9011)
Grille:Powder-coated steel with internal lining (18 Gauge)
