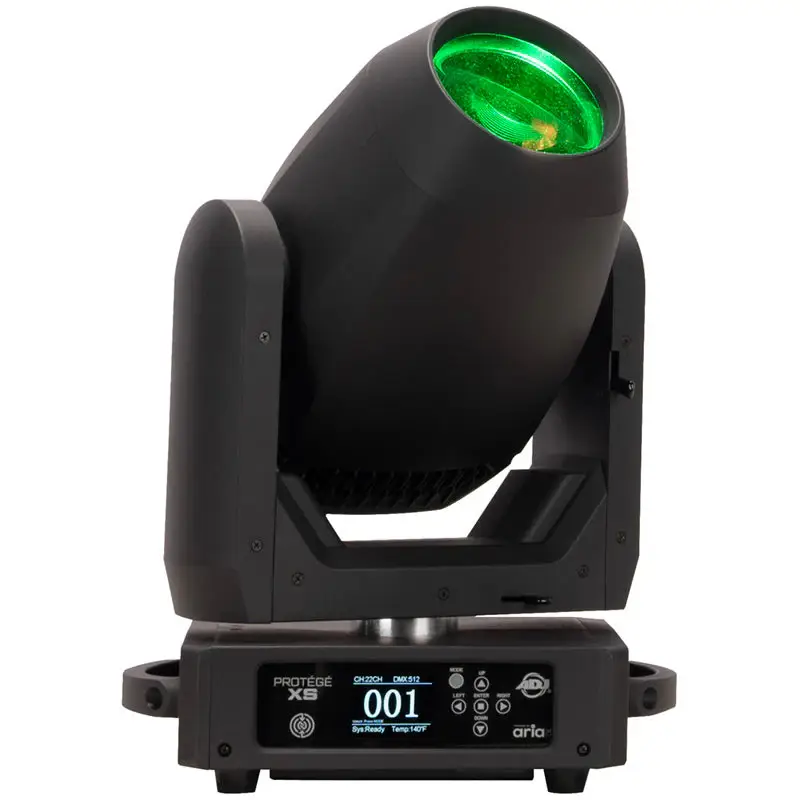

ADJ Protege XS Moving Head Wash Light Protege XS Moving Head Wash Light
Additional Photos:
Related Products
Description
This versatile fixture features a motorized zoom range of 4.8°38°, allowing for everything from tight aerial beams, defined spot looks, to broad stage washes. Its dual color wheel system offers a wide palette of options, including 3200K CTO and 9000K CTB filters, while dual GOBO wheels (one rotating and replaceable, one static) provide a comprehensive range of textural projection possibilities. Creative effects are expanded even further through dual overlay-capable prisms one 6-facet circular and one 6-facet linear complemented by a heavy frost filter for smooth washes and an expressive animation wheel.
Engineered for modern control environments, the Protege XS offers both wired 5-pin DMX and wireless Aria X2 management, alongside convenient NFC configuration from its base. Its three-phase motors ensure smooth, fast, and precise movement, including 360° continuous pan rotation, with pan/tilt locks for secure transport and setup.
Compact, powerful, and affordably positioned, the Protege XS brings professional-grade performance to churches, clubs, theatres, and event productions. Carrying forward the legacy of ADJs renowned Focus Spot Series, it redefines what a compact moving head can achieve - proving that true brilliance often comes in smaller packages.
Specifications
SOURCE250W White LED Engine
Color Temperature: 8500K (+/-200k)
20,000 Hour Average LED Life
EFFECTS
Motorized Zoom: 4.8° ~ 38°
2x Prisms: 1x 6 Facet Linear & 1x 6 Facet Circular (Overlay Capable)
Heavy Frost Filter for Smooth Wash Effects
Animation Wheel on Movable Arm
Motorized Focus
1Hz ~10Hz Strobe Rate (Electronic)
PHOTOMETRIC DATA
9,800 Lumens
CRI: 73
COLOR
2x Color Wheels
8 colors per color wheel
Color Wheel 1: Red, Blue, Green, Orange, Quad Color，Yellow, Magenta, Congo Blue
Color Wheel 2: Dark Red, Light Turquiosise, UV, Pink, Quad Color, Lavender, CTO 3200K, CTB 9000K
GOBOS
1x Rotating Gobo Wheel: 7 Interchangeable, glass gobos (OD: 16mm, Image: 10mm)
1x Static Gobo Wheel: 11 Fixed, aluminum gobos, including two beam reducers
CONTROL / CONNECTIONS
(3) DMX Channel Modes (Basic / Standard / Extended)
DMX, RDM
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5 pin XLR DMX In/Out
IP65 Locking Power In/Out
PAN / TILT
Pan: 540/630° and separate 360° Continuous Pan Rotation
Tilt: 270°
Pan/Tilt Locks
3 Phase Motors
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 616W
Power Link: 2 units @120V., 5 units @ 230V.
Max ambient temperature: -13F to 113F (-25C to 45C)
