Description

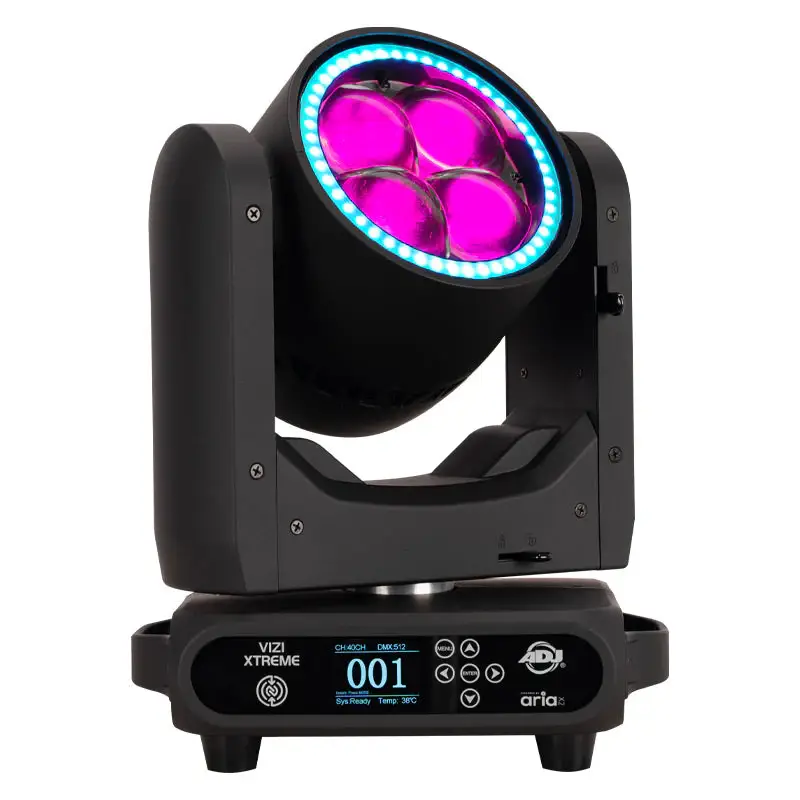

At the heart of the Vizi Xtreme are four primary 60-watt RGBL LED's, each individually controllable to create striking, pixel-based animations and bold color statements. An advanced color mixing system - incorporating lime for enhanced clarity and a superior palette - ensures beautifully saturated hues and crisp pastels. In addition, white light can be generated with a wide 2700K to 10,000K color temperature range. Around the outside of the fixture's face is a ring of forty-eight 0.5-watt RGBL LED's, arranged into six independently controlled zones. This halo effect enables designers to add layered motion, subtle ambience, or high-impact chase patterns that complement the primary output.
The Vizi Xtreme's motorized zoom system, spanning an impressive 3° to 45°, transitions effortlessly from tight, piercing aerial beams to wide, immersive washes. Combined with ultra-fast 3-phase motors, optional 360° continuous pan and tilt, and a 110Hz strobe function, the fixture excels at creating movement-driven looks and punchy, energetic effects. Despite its kinetic performance, it remains lightweight at just 15.4 lbs (7kg), making it perfect for both smaller event productions and high-density arrays on touring rigs.
Designed for professional integration, the fixture offers a robust suite of control options, including DMX with RDM, sACN and ArtNet. As well as 5-pin DMX and RJ45 sockets for wired connection, the fixture features integrated Aria X2 wireless technology. This facilitates both cable free DMX control and wireless management with OTA firmware updates and NFC setup for streamlined configuration. An intuitive menu-driven interface for DMX addressing and configuration is also provided on the base of the unit via a full-color, 180° reversible LCD screen with 6-button touch control panel for streamlined operation.
With its exceptional speed, high-output LED's, versatile pixel control, and advanced connectivity, the Vizi Xtreme sets a new benchmark for compact beam wash fixtures. It empowers lighting professionals to craft vivid, energetic, and intricately layered designs with total precision from a lightweight fixture built for professional environments with CE, FCC, and cETLus certifications.
Specifications
COLORPrimary: 4x Red, Green, Blue and Lime
Ring: 48x RGBW
EFFECTS
Individual pixel control for primary RGBL LED's
Six-zone control for ring RGBW LED's (8 LED's per zone)
Motorized zoom range: 3°45°
Electronic strobe rate: 1Hz10Hz
PRIMARY SOURCE
4x 60W RGBL LED's
Color Temperature: 2700K - 10,000K
20,000 Hour Average LED Life
RING
48x 0.5W RGBW LED's
20,000 Hour Average LED Life
PHOTOMETRIC DATA (PRIMARY LED's)
2,700 Lumens
CRI: 60
CONTROL / CONNECTIONS
(5) DMX Channel Modes (Basic 28 / Standard 40 / Extended 73 / Standard CMY 54 / Extended CMY63)
DMX, RDM, sACN and ArtNet
Aria X2 Wireless Management System
NFC System
6 Button Touch Control Panel
Full Color 180 Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
IP20 5 pin XLR DMX In/Out
IP20 RJ45 In/Out
IP65 Locking Power In/Out
PAN / TILT
Pan: 540/360° (360° Continuous Pan Rotation Option)
Tilt: 270/360° (360° Continuous Tilt Rotation Option)
Pan/Tilt Locks
3 Phase Motors
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption: 316W
Power Link: 5 units @120V., 10 units @ 230V.
Max ambient temperature: -13°F to 113°F (-25°C to 45°C)
