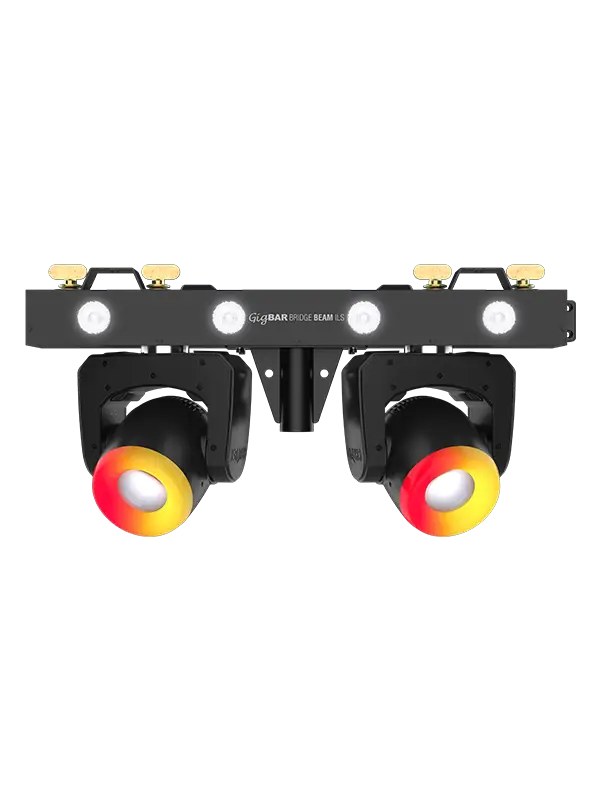

Chauvet DJ GigBAR Bridge Beam ILS Pre-Mounted Lighting Rig GigBAR Bridge Beam ILS Pre-Mounted Lighting Rig
Additional Photos:
Related Products
Description
Features
• 3-in-1 lighting system that includes moving heads, RGBW rings and washes pre-mounted on a single bar• Quickly and securely connect multiple fixtures with the built-in locking system
• Built-in DFI transceiver communicates DMX or ILS signals wirelessly
• ILS compatibility for use in the ILS ecosystem
• Safely mounts onto truss or mobile tripods using the removable bracket
• Easy navigation and access all functions directly from the full-color LCD display
• Totem Mode keeps the moving heads focused on the dance floor
• Save time running cables and extension cords by power linking multiple units
• Use the included RF remote to trigger the built-in shows without needing line of sight
Specifications
DMX Channels: 3, 24 or 60DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 180°, 360°, 540° Pan / 90°, 180°, 270° tilt
Strobe Rate: 0 to 20 Hz
Operating Frequency: 2.4 GHz
Power Linking: 9 units @120 V; 18 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 147 W, 1.2 A 120 V, 60 Hz
144 W, 0.6 A 230 V, 50 Hz
Illuminance (moving head): 24,670 @ 2 m (per head)
Illuminance (wash): 525 Lux @ 2 m (per section)
Light Source (moving heads): 2 LEDs (RGBW) 80 W total (2.8 A), 50,000 hours life expectancy
Light Source (wash): 4 LEDs (RGBAW+UV) 40 W total (2.6 A), 50,000 hours life expectancy
Light Source (LED ring): 48 LEDs (RGBW) 10 W total 50,000 hours life expectancy
Beam Angle (moving head): 5°
Beam Angle (wash): 20°
Field Angle (wash): 37°
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
