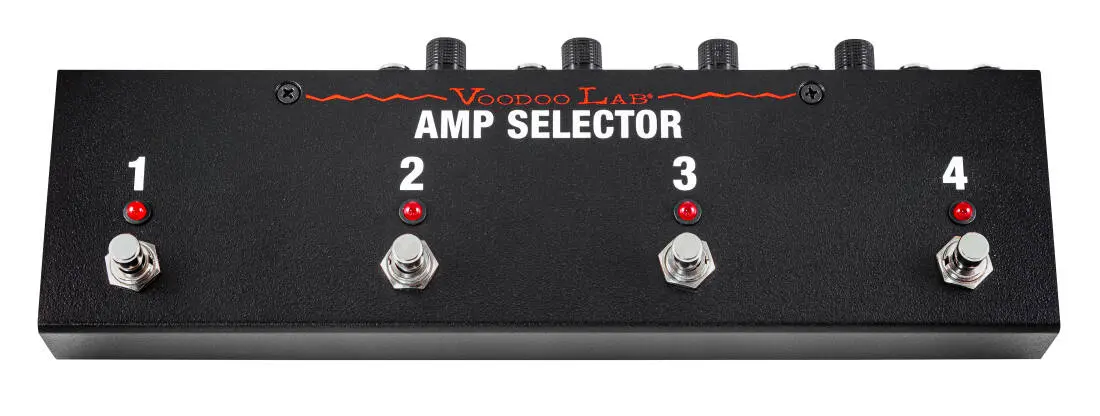

Voodoo Lab Amp Selector PRO Isolated Output Switch/Blend Programmable with MIDI Amp Selector PRO Isolated Output Switch/Blend Programmable with MIDI
Additional Photos:
Related Products
Description
Common passive ABY boxes load down your pickups, allow ground hum, and make switching noisy. Amp Selector PRO is an active guitar amp switcher that solves all of these problems with four transformer-isolated outputs, letting you send your guitar's signal to multiple destinations without compromise. Run quad amp setups, combine tube amps with modelers and recording inputs, capture DI signals for reamping - whatever your rig demands. Plus, programmable presets and MIDI control let you save your exact routing for instant recall.
Premium Transformers for Superior Sound
Featuring four custom nickel-core transformers, Amp Selector PRO delivers exceptional frequency response and clarity that standard transformers can't match. The high-inductance permalloy design enhances your tone, preserving low-end punch and high-frequency detail, so your sound stays full and dynamic. Plus, independent ground lift switches on each output let you instantly kill the gnarly noise that's common with multi-amp setups.
Keep Your Tone Pure
Running multiple amps with passive switchers or long cables robs your signal of highs and presence. Amp Selector PRO's studio-quality buffer is built around the Texas Instruments LME49720, an elite audio op-amp with vanishingly low noise and exceptional clarity so your tone stays pure from input to output.
Switch Without Pop
Voodoo Lab Quiet Switching™ - using proprietary JFET and zero-crossing technology - delivers silent operation for smooth transitions, whether you're toggling between two amps or four.
Fix Phase and Balance Easily
When your multi-amp rig is out of phase, it sounds hollow and thin. Amp Selector PRO's programmable phase invert lets you set polarity on each output to restore your tone. Plus, quickly balance or blend amps with independent level controls.
Programmable Presets with MIDI Control
Using Amp Selector PRO with your MIDI-controlled rig allows you to switch amps along with your other MIDI devices.
Features
• Connect to amps, modelers, and your DAW with stunning fidelity• Enjoy noise-free, full-bandwidth tone using studio-grade transformers and ground lifts
• Preserve your tone with transparent buffer and silent switching
• Balance any setup using independent level controls and selectable phase invert
• Store and recall user presets instantly via MIDI
Specifications
- Four isolated outputs with independent level controls and ground lifts- Studio-grade nickel-core isolation transformers on each output
- Ultra-transparent audio buffer
- Voodoo Lab Quiet Switching™
- Selectable phase invert control for every output
- Programmable user presets with MIDI control
- Thru output for tuner, DI, or DAW reamping
- Powers from any isolated 9VDC output
- Dimensions: 11" wide x 3.75" deep x 1.38" tall (280 x 96 x 35 mm)
- Weight: 1.3 lbs. (0.6 kg)
- 5-year warranty
