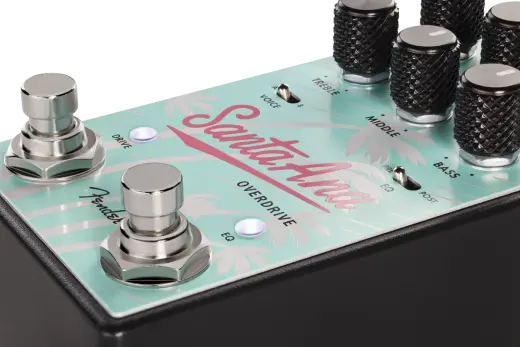

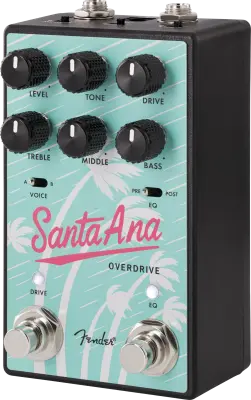

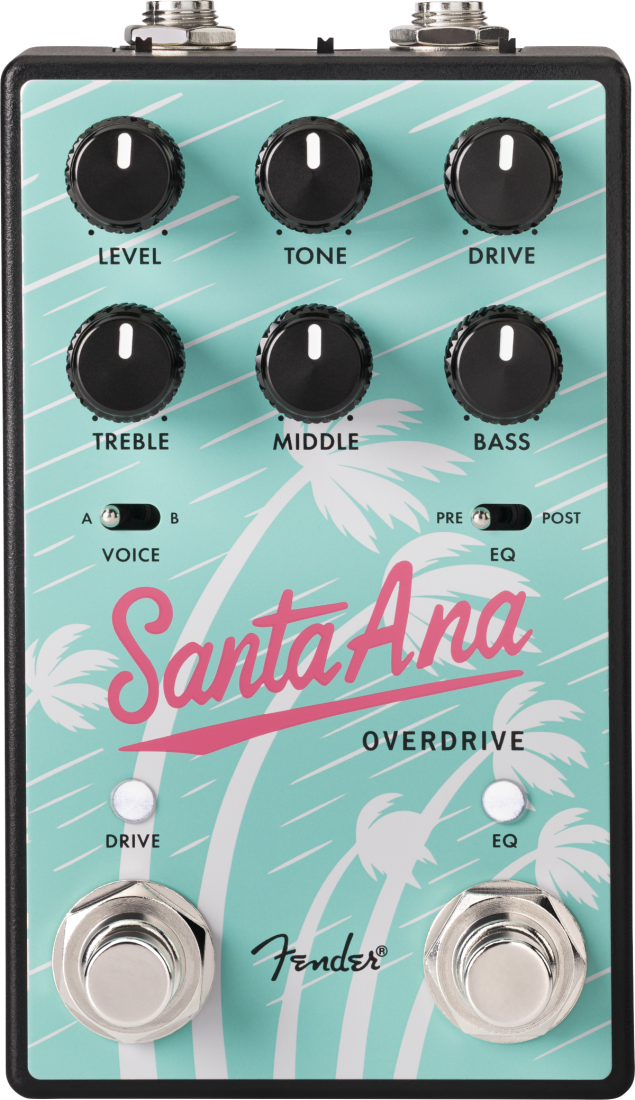

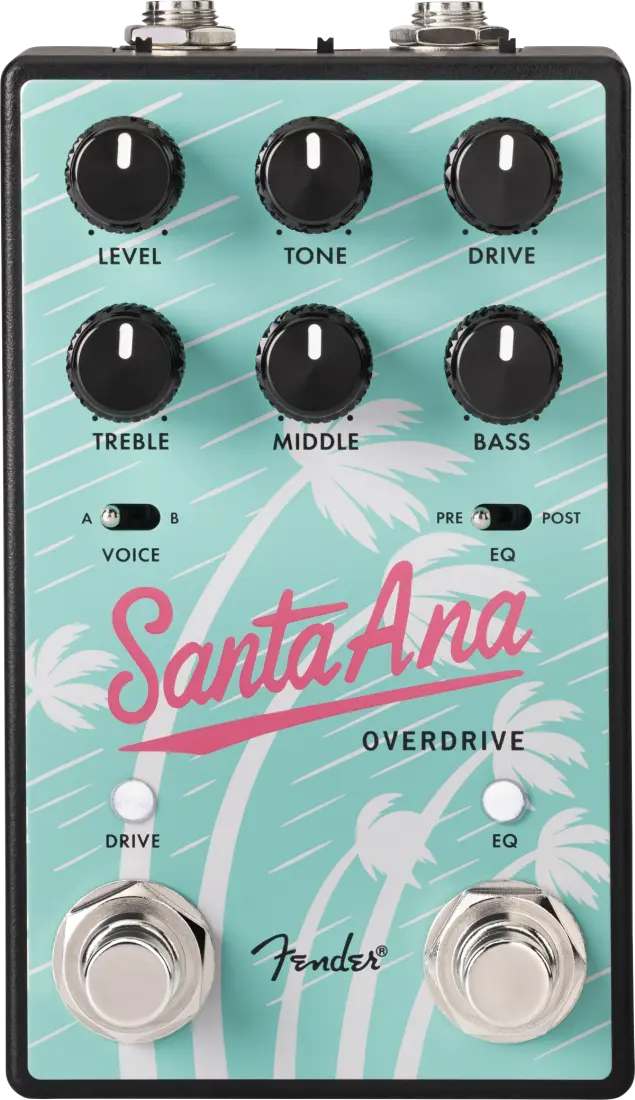

Fender Santa Ana V2 Overdrive Pedal Santa Ana V2 Overdrive Pedal
Additional Photos:
Related Products
Description
To further sculpt the frequency response of your drive, a standalone, independently switchable 3-band EQ circuit is built around the Santa Ana V2 drive engine. Active Bass, Middle, and Treble controls offer a wide range of adjustment, cutting or boosting each frequency range with a center detent to mark flat response. Determine exactly how the EQ circuit interacts by using the EQ Placement switch to stack the EQ before or after the drive: Pre-drive EQ flavours the overdrive's response by determining which frequencies are clipped most by the drive circuit; post-drive EQ lets your guitar hit the drive head on and shapes the resulting gain tones for a more dramatic EQ effect.
With a fine-tuned JFET drive engine, independent EQ circuit, conveniently switchable buffered and true bypass modes, and multiswitch enabled footswitches for momentary and latching activation, the Santa Ana V2 is an ultra-flexible, intuitive overdrive with tons of tones on tap.
Features
• JFET-based class-A overdrive pedal pushing 18V internally for high headroom, tube-like performance• Two distinct overdrive voices offer different levels of dynamic clipping for bountiful tonal options
• Independently switchable 3-band EQ can be placed before or after drive circuit to sculpt the ultimate drive tone
• Rear panel Multiswitch enables latching (tap) and momentary (press-and-hold) footswitch action

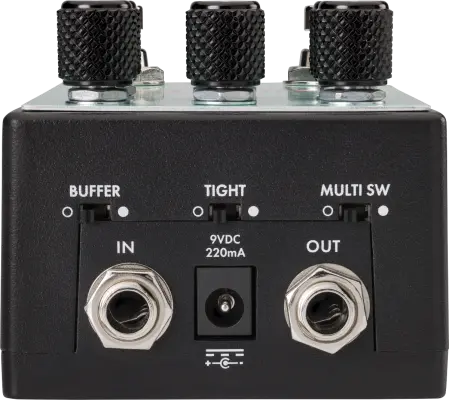

• Rear panel true or buffered bypass switch, with relay based auto-bypass when no power is present
• Top mounted jacks and road-ready aluminum enclosure
• Powered by 9V Center negative AC adaptor, not included
Specifications
GeneralSeries: Fender® Pedals
Effect Type: Overdrive
Colour: Sea Foam Green
Material: Aluminum
Country of Origin: China
Electronics
Inputs: One - 1/4" Instrument
Input Impedance: 1M ohm
Output Impedance: 470 ohm
Power Consumption: 220mA
Power Requirements: 9-Volt Center Negative AC Adaptor (not included)
