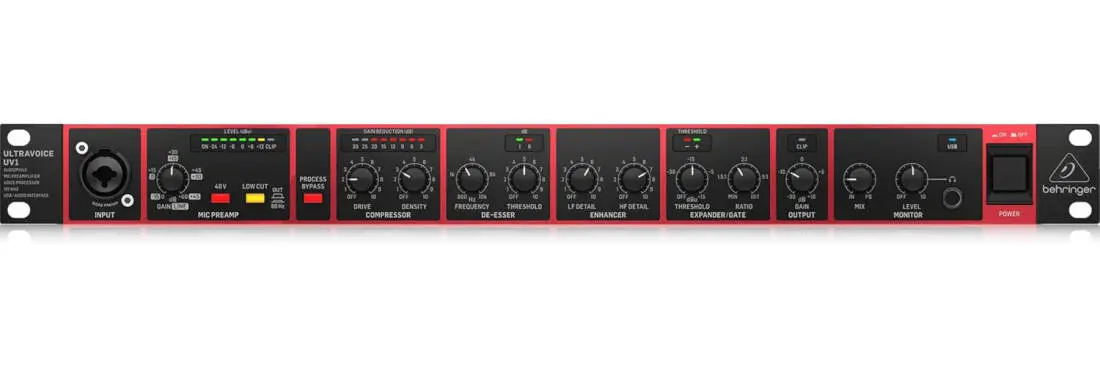

Behringer UV1 Audiophile Mic Preamplifier/Voice Processor Audio Interface UV1 Audiophile Mic Preamplifier/Voice Processor Audio Interface
Additional Photos:
Related Products
Description
When it comes to vocals, sound engineers become critical and often prefer a channel strip over a mixing console because of its outstanding sound quality and flexibility. The ULTRAVOICE UV1 is a full-featured channel strip with high-end microphone preamplifier, versatile sound processing features, and the free choice to play out the processed sound via balanced analog outputs or pass it on to the internal USB interface.
Midas Mic Preamp - Legend Inside!
Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! ULTRAVOICE UV1 comes with a state-of-the-art Midas microphone preamplifier with +48 V phantom power, ultra-low noise, high gain and audiophile quality.
Crystal Clear Signal Path at 192 kHz
The ULTRAVOICE UV1 is more than just a mic preamp and voice processor - we added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the astonishingly crisp sound you'll get.
Zero Latency Monitoring
Recording the voice is one of the most critical tasks in the studio. Singers are very sensitive to delays. A few milliseconds can make all the difference between a good or a great take! So, we added this simple but very effective monitoring section to the ULTRAVOICE UV1. Blend between direct input signal and USB playback makes it easy to find the best balance while you're recording. Just plug in your headphones and adjust the volume.
Digital or Analog? - Both!
Some people prefer to stay in the analog domain, some prefer the shorter path to record directly to the digital. On the ULTRAVOICE UV1 you will get both - simultaneously! Connect your PC or Mac directly via USB to get the best vocal sound without detours into your DAW. Connect any analog outboard equipment to the balanced outputs for further signal flow. It's up to you.
Sound P-R-O-C-E-S-S-I-N-G
A high-quality microphone preamp and a brilliant USB interface are the most important tools to integrate vocals perfectly into a song arrangement. Just press the BYPASS switch to get the pure experience. But sometimes you want to pimp your vocals for the best result. And here we go! The ULTRAVOICE UV1 features all kind of processing you will need - a Compressor for more punch, a De-Esser to remove sibilants, an Enhancer for dynamic sound details at the lower and upper end of the frequency spectrum, an Expander/Gate to "mute" automatically unwanted surrounding noise and finally the amp to gain lost levels again. And even if this would be not enough you can insert additional outboard gear for even more sound improvements.
Stage - Studio - Stream
It doesn't matter what your target application is. The ULTRAVOICE UV1 is a perfect match for any environment where the best quality for your voice as a singer, narrator, moderator will be required. Put it in a live rack to go on tour, install it in a musical theater for the main artists, make it the center of your home studio or broadcast streaming environment, or unload your mixing console at the recording studio. The ULTRAVOICE UV1 is the ideal solution for home or professional studios, or as part of a larger setup, on stage or on tour. Premium, ultra-low noise components and high headroom lets your music shine at its best this is especially true for the most critical source: Vocals!
High Quality, Best Value
We designed the ULTRAVOICE UV1 to provide many years of super-clean, high-fidelity performance in the most critical listening environment - yours! Built from the highest-grade components, the UV1 is the perfect way to add a lot more convenience and control into your current studio setup.
• Perfectly matches your studio, live and pro recording environment
• High-quality mic processor allows you to optimize your recordings
• Audiophile 192 kHz USB audio interface to connect directly to your computer
• Effective De-esser for quick removal of excessive sibilance from your vocal track
• Integrated dynamic Enhancer adds high frequencies, lost through compression
• True RMS expander for extremely smooth noise reduction
• Send and Return connectors allow you to add external processors
• Input/playback mix control to balance between direct monitor and USB playback signal
• Accurate LED metering for level and processing indication
• Illuminated switches ensure perfect operation in dark stage and studio environments
• Internal switch-mode power supply (100 - 240 V) for noise-free audio and low power consumption
- Line in: 1/4" TRS, balanced Impedance: 10 kΩ unbalanced, 20 kΩ balanced Max input level: 30 dBu
- Insert return: 1/4" TRS, balanced Impedance: 5 kΩ Max input level: +21 dBu
- Line out: Balanced XLR, 1/4" TRS Impedance: 100 Ω unbalanced, 200 Ω balanced Max output level: +20 dBu
- Insert send: 1/4" TRS, balanced Impedance: 100 Ω unbalanced Max output level: +20 dBu
- Mic preamp: Gain: Mic: 0 to +60 dB, line: -15 to +45 dB 48 V: +48 V phantom power, switchable Low cut: -18 dB/oct @ 80 Hz
- Compressor: Drive: Threshold, -40 dB to +20 dB Density: 1 to 75 dB/sec
- De-Esser: Frequency: 800 Hz to 10 kHz Threshold: Program-dependent Release time: Program-dependent, approx. 1 ms/dB
- Enhancer: LF/HF detail: Min to max boost (0 dB to +12 dB)
- Expander/Gate: Threshold: Off to +15 dB Ratio: 1:1 to 10:1
- Output: Output gain: -30 to +10 dB
- Monitor: Mix: Blend direct signal and playback, Level: 0 to +6 dB
- Frequency response: 10 Hz to 80 kHz (0/-3 dB)
- Dynamic range: 110 dB, A-weighted
- Type: USB 2.0, type B
- Interface: 2 in / 2 out
- Converter: 24-bit
- Sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Supported operating systems: Windows 10 / Mac OS X 10.4 or higher
- Switch-mode autorange power supply: 100-240 V, 50/60 Hz
- Power consumption: 15 W
- Mains connection: Standard IEC connector
- Standard operating temperature range: 5° C - 45° C (41° F - 113° F)
- Dimensions: 483 x 150 x 44 mm (19 x 5.9 x 1.7")
- Weight: 1.5 kg (3.3 lbs)
Midas Mic Preamp - Legend Inside!
Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! ULTRAVOICE UV1 comes with a state-of-the-art Midas microphone preamplifier with +48 V phantom power, ultra-low noise, high gain and audiophile quality.
Crystal Clear Signal Path at 192 kHz
The ULTRAVOICE UV1 is more than just a mic preamp and voice processor - we added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the astonishingly crisp sound you'll get.
Zero Latency Monitoring
Recording the voice is one of the most critical tasks in the studio. Singers are very sensitive to delays. A few milliseconds can make all the difference between a good or a great take! So, we added this simple but very effective monitoring section to the ULTRAVOICE UV1. Blend between direct input signal and USB playback makes it easy to find the best balance while you're recording. Just plug in your headphones and adjust the volume.
Digital or Analog? - Both!
Some people prefer to stay in the analog domain, some prefer the shorter path to record directly to the digital. On the ULTRAVOICE UV1 you will get both - simultaneously! Connect your PC or Mac directly via USB to get the best vocal sound without detours into your DAW. Connect any analog outboard equipment to the balanced outputs for further signal flow. It's up to you.
Sound P-R-O-C-E-S-S-I-N-G
A high-quality microphone preamp and a brilliant USB interface are the most important tools to integrate vocals perfectly into a song arrangement. Just press the BYPASS switch to get the pure experience. But sometimes you want to pimp your vocals for the best result. And here we go! The ULTRAVOICE UV1 features all kind of processing you will need - a Compressor for more punch, a De-Esser to remove sibilants, an Enhancer for dynamic sound details at the lower and upper end of the frequency spectrum, an Expander/Gate to "mute" automatically unwanted surrounding noise and finally the amp to gain lost levels again. And even if this would be not enough you can insert additional outboard gear for even more sound improvements.
Stage - Studio - Stream
It doesn't matter what your target application is. The ULTRAVOICE UV1 is a perfect match for any environment where the best quality for your voice as a singer, narrator, moderator will be required. Put it in a live rack to go on tour, install it in a musical theater for the main artists, make it the center of your home studio or broadcast streaming environment, or unload your mixing console at the recording studio. The ULTRAVOICE UV1 is the ideal solution for home or professional studios, or as part of a larger setup, on stage or on tour. Premium, ultra-low noise components and high headroom lets your music shine at its best this is especially true for the most critical source: Vocals!
High Quality, Best Value
We designed the ULTRAVOICE UV1 to provide many years of super-clean, high-fidelity performance in the most critical listening environment - yours! Built from the highest-grade components, the UV1 is the perfect way to add a lot more convenience and control into your current studio setup.
Features
• Pristine Midas-designed preamplifier for all microphone and line-level sources• Perfectly matches your studio, live and pro recording environment
• High-quality mic processor allows you to optimize your recordings
• Audiophile 192 kHz USB audio interface to connect directly to your computer
• Effective De-esser for quick removal of excessive sibilance from your vocal track
• Integrated dynamic Enhancer adds high frequencies, lost through compression
• True RMS expander for extremely smooth noise reduction
• Send and Return connectors allow you to add external processors
• Input/playback mix control to balance between direct monitor and USB playback signal
• Accurate LED metering for level and processing indication
• Illuminated switches ensure perfect operation in dark stage and studio environments
• Internal switch-mode power supply (100 - 240 V) for noise-free audio and low power consumption
Specifications
- Mic input: Discrete mic preamp Type: Balanced XLR/TRS combo connector Impedance: 4 kΩ Max input level: +17 dBu Equivalent input noise (EIN): -126 dBu, 20 Hz - 20 kHz, 150 Ω- Line in: 1/4" TRS, balanced Impedance: 10 kΩ unbalanced, 20 kΩ balanced Max input level: 30 dBu
- Insert return: 1/4" TRS, balanced Impedance: 5 kΩ Max input level: +21 dBu
- Line out: Balanced XLR, 1/4" TRS Impedance: 100 Ω unbalanced, 200 Ω balanced Max output level: +20 dBu
- Insert send: 1/4" TRS, balanced Impedance: 100 Ω unbalanced Max output level: +20 dBu
- Mic preamp: Gain: Mic: 0 to +60 dB, line: -15 to +45 dB 48 V: +48 V phantom power, switchable Low cut: -18 dB/oct @ 80 Hz
- Compressor: Drive: Threshold, -40 dB to +20 dB Density: 1 to 75 dB/sec
- De-Esser: Frequency: 800 Hz to 10 kHz Threshold: Program-dependent Release time: Program-dependent, approx. 1 ms/dB
- Enhancer: LF/HF detail: Min to max boost (0 dB to +12 dB)
- Expander/Gate: Threshold: Off to +15 dB Ratio: 1:1 to 10:1
- Output: Output gain: -30 to +10 dB
- Monitor: Mix: Blend direct signal and playback, Level: 0 to +6 dB
- Frequency response: 10 Hz to 80 kHz (0/-3 dB)
- Dynamic range: 110 dB, A-weighted
- Type: USB 2.0, type B
- Interface: 2 in / 2 out
- Converter: 24-bit
- Sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
- Supported operating systems: Windows 10 / Mac OS X 10.4 or higher
- Switch-mode autorange power supply: 100-240 V, 50/60 Hz
- Power consumption: 15 W
- Mains connection: Standard IEC connector
- Standard operating temperature range: 5° C - 45° C (41° F - 113° F)
- Dimensions: 483 x 150 x 44 mm (19 x 5.9 x 1.7")
- Weight: 1.5 kg (3.3 lbs)
