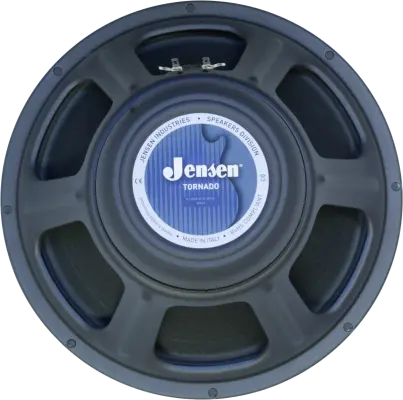

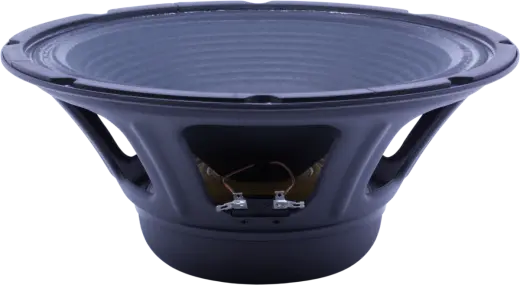

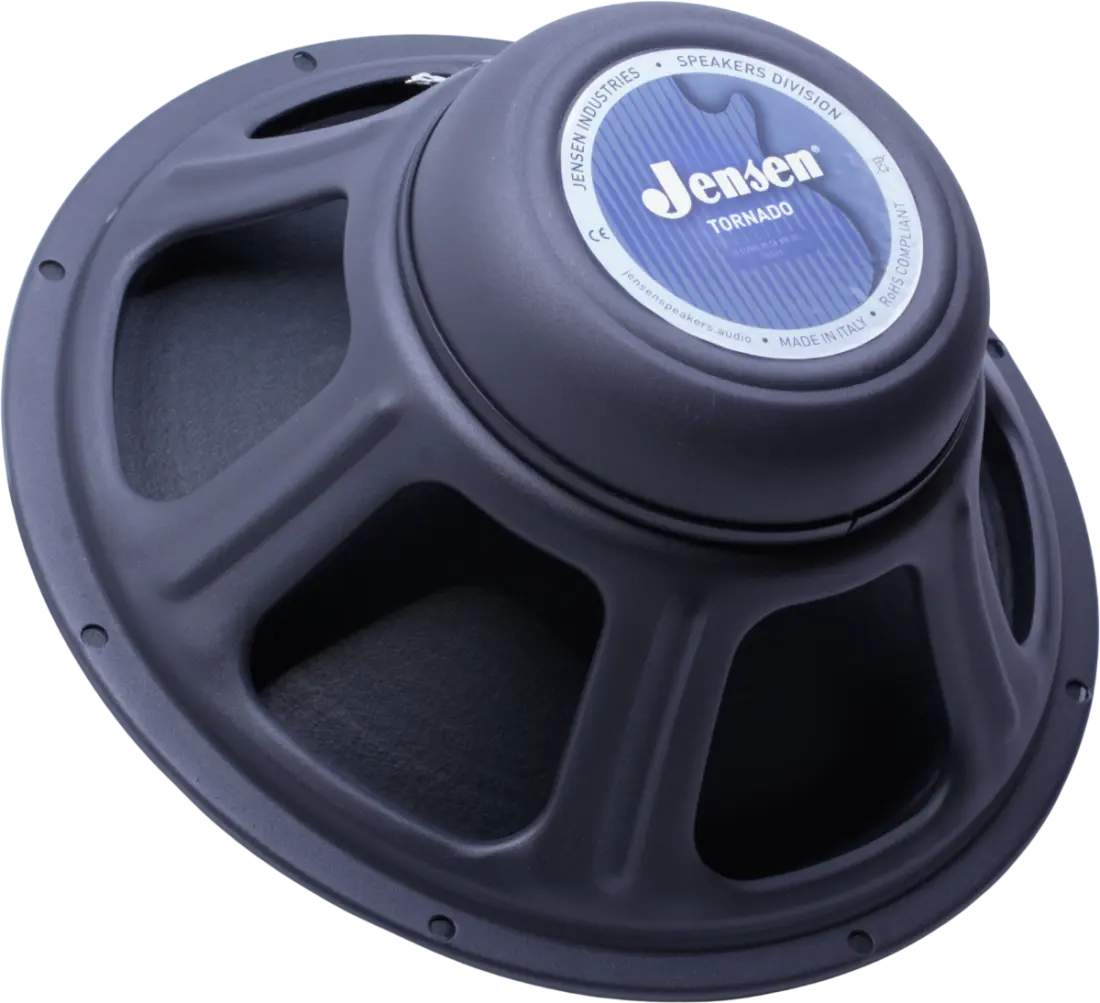

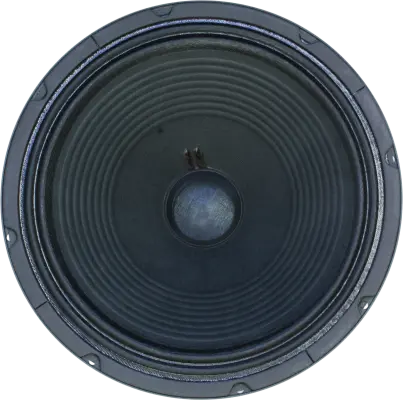

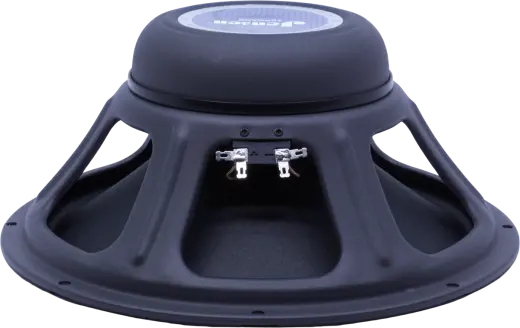

Jensen Loudspeakers 12'' Tornado Stealth 100 Watt Neodymium Speaker - 8 Ohm 12'' Tornado Stealth 100 Watt Neodymium Speaker - 8 Ohm

The Tornado Stealth 100 is the original Tornado 12, the first of the new generation of Neodymium speakers in the Jensen offering with an added stylish bell cover over the magnet. Possibly the most versatile Jensen speaker ever, it has clear, almost HD top end, well-balanced midrange and powerful bass end. It lends itself to a wide range of musical genres, with a smooth, never aggressive personality, from fast solo runs, to complex chordal harmonies, to soulful lead tones.

Specifications

General Characteristics
Nominal Overall Diameter: 307 mm (12 in)
Nominal Voice Coil Diameter: 50 mm (2 in)
Magnet Weight: 200 g (7 oz)
Overall Weight: 2.2 kg (4.85 lbs)
Flux Density: 1.2 T
Voice Coil Winding Depth: 10 mm (0.39 in)
Magnetic Gap Depth: 8 mm (0.31 in)

Thiele-Small Parameters
Nominal Impedance: 8Ω
Voice Coil DC Resistance: 6.81 Ω
Resonance Frequency: 72 Hz
Mechanical Q Factor: 9.51
Electrical Q Factor: 0.74
Total Q Factor: 0.52
Mechanical Moving Mass: 29.9 g
Mechanical Compliance: 163 um/N
Force Factor: 12.93 Wb/m
Equivalent Acoustic Volume: 55.9 lt.
Maximum Linear Displacement: + 1 mm
Reference Efficiency: 2.82 %
Diaphragm Area: 490.9 cm2
Losses Electrical Resistance: 148.9 Ω
Voice Coil Inductance @ 1kHz: 0.7 mH

Constructive Characteristics
Magnet: Neodymium
Voice Coil Winding: Copper
Voice Coil Former: Nomex
Cone Material: Paper
Surround Material: Integrated Paper
Dust Dome Material: Non-treated Cloth
Basket Material: Pressed Sheet Steel
Surround Treatment: Yes

Electrical Characteristics
Nominal Impedance: 8Ω
Rated Power: 100 W
Musical Power: 200 W
Sensitivity@1W,1m: 98.5 dB
