Orion 16-Channel DMX Lighting Controller

SKU: # 434355   |   Model: # ORCONTROL   |    Product Reviews3 Reviews  Write a Review

16-Channel DMX Lighting Controller
Your Price: $210.00 CDN
or from $31 CDN/mo
Notify Me

Buy Online

 Add to Cart

Buy In-Store

Designed for simple setup and control of even the most complex lighting scenario, the ORCONTROL DMX512 lighting desk is capable of controlling 12 intelligent lights as well as smoke machines across 16 channels.

Thirty programmable banks with 8 scenes each (240 scenes) allow detailed preset design for even the most complex stage or club setup. Two assignable pan / tilt joysticks ensure the ORCONTROL is ready when you expand into moving head lights and effects. All channels and faders can be reassigned for detailed system control.

The ORCONTROL is able to run multiple chases simultaneously, and can tap sync, audio sync or auto run depending on application. Ideal for use with any and all Orion DMX ready lasers, LEDs and smoke machines.

Features
• Universal DMX512 Controller
• Controls 12 Intelligent Lights up to 16 Channels
• 30 Banks of 8 Scenes (240 Scenes Total)
• Set up to 6 Chases containing 240 Scenes
• Executes Multiple Chases Simultaneously
• Channels are Re-assignable
• Assignable 16-bit Pan / Tilt Joystick Controller
• Beat Activation, Tap Sync, Auto Run Mode
• Selectable DMX Output Polarity

Specifications
DMX Protocol: DMX-512 USITT
DMX Connections:DMX XLR 3-Pin Input & Output

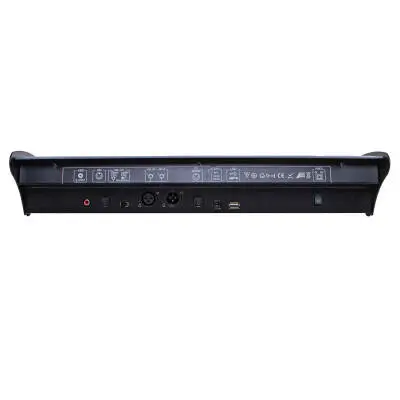

Additional Connections: Audio Input (Sound Active Mode), 5-Pin DIN plug (Fog Machine Control), USB Lamp Socket / Power Port
Power Supply: DC 9-12v 500mA
(Use Supplied Power Supply Only)
Dimensions L xWxH (in):19 x 7.5 x 3.5
Dimensions L xWxH (mm): 482 x 190 x 90
Weight: 7.7 lbs / 3.5kg

Q & A


There are currently no questions for this product.

Reviews


34.236.191.0
CCBot/2.0 (https://commoncrawl.org/faq/)
Solid Lighting Controller 0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience   I own it
Closest Store   Halifax, Nova Scotia
The Or-Control is an excellent cost effective, easy to use DMX controller for your lighting show making it ideal if you are growing your lighting roster to multiple fixtures or deploying multiple shows on the road and want to standardize on a simple controller that everyone who works for you can quickly learn. It has metal construction which is always a plus for gear being constantly packed and unpacked. It has all the features and plenty of banks to program in enough scenes and chases to keep your show interesting. One great feature worth mentioning is the gooseneck USB powered LED light that plugs in the back and illuminates the work station. You can program up to 12 fixtures or fixture types (multiple fixtures using the same address such as up lights) which gives you plenty of options for most average sized gigs. Overall this is a great unit to have as part of your "essentials" kit that will grow with your light show.
Posted by Mike on Apr 12, 2022
Was this review helpful? Vote helpful Vote not helpful flag this review
Not quite best in class - but close 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience   I own it
Closest Store   Waterloo, Ontario
I was looking for a basic controller that would give me the ability to program AND modify fixture attributes live (ie. during a performance). This is the only controller in this price range that will hold fixture attributes after a fixture is deselected. This alone is reason enough to go with the Orion controller as Chauvet, Microh and ADJ controllers are basically copies of the same system. Neither of those allows live changes without entering program mode. Power jack is a bit iffy and you need to be really careful not to disconnect from power during a show but otherwise, well worth the price. Only complaint (other than a really short power cord/wall wart) is it can't be rack-mounted. Too bad.
Posted by Matt on Sep 8, 2017
Was this review helpful? Vote helpful Vote not helpful flag this review
Orion Controller 8 of 8 customers found this review helpful
Features
Quality
Value
Overall
Product Experience   I own it
Closest Store   Calgary East, Alberta
I use 2 banks of Yorkville 4 LED lamp, 4 high power Microh MAX QUAD LED ZOOM lights & 4 American DJ intelligent lights connected via DMX all controlled with MIDI from my laptop with stunning results. Everything from strobing to slow fades & blackouts can be programmed & the results are smooth & accurate. The previous poster must have lighting that does not utilize standard 512 DMX protocol because regardless of whether you use LED or regular 500 watt luminaires the controller works flawlessly. The determining factor is whether the LED fixture has dimming capability? Even LED bulbs intended for commercial or household applications that one can buy at Walmart have a warning label to let the consumer know that the bulb can be dimmed via a dimmer.
Posted by Tele' on Feb 27, 2017
Was this review helpful? Vote helpful Vote not helpful flag this review
