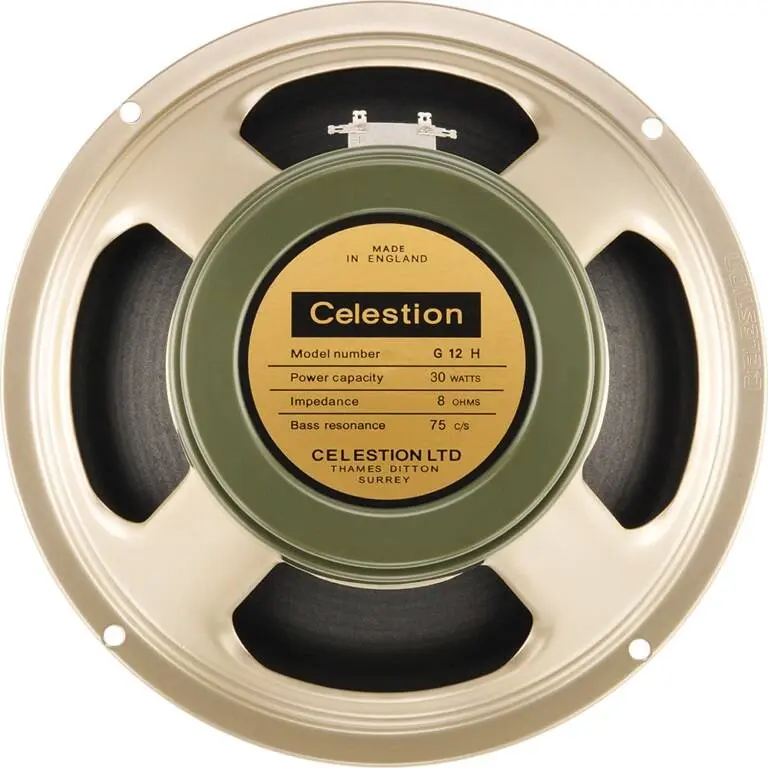

Celestion Heritage Series G12H (75Hz) 12'' 30-Watt Guitar Speaker - 8 ohm Heritage Series G12H (75Hz) 12'' 30-Watt Guitar Speaker - 8 ohm

It's hard to escape the sound of the G12H; just listen to any Hendrix recording and chances are you'll be hearing a whole raft of them powering the guitar out of the mix. These faithful re-creations capture the unmistakeable mojo of late 60s rock guitar tones. The Heritage Series G12H (75) features a 75 c/s 'lead' cone for an alternative tonal balance that places a little less emphasis on bass frequencies. Choose this version if you prefer a tighter bottom end with a punchy upper mid-range and sparkling highs.

Specifications

Nominal diameter: 305mm / 12in
Power rating: 30W
Rated impedance: 8Ω
Sensitivity: 100dB
Chassis type: Pressed steel
Magnet type: Ceramic
Magnet weight: 1.42kg / 50oz
Voice coil diameter: 1.75in / 44.5mm
Voice coil material: Round copper
Frequency range: 75-5000Hz
Resonance frequency, Fs: 75Hz
DC resistance, Re: 6.53Ω and 12.11Ω

Mounting Information
Cut-out diameter: 283mm / 11.1in
Diameter: 309mm / 12.2in
Magnet structure diameter: 168mm / 6.6in
Mounting hole PCD: 297mm / 11.7in
Number of mounting holes: 4
Overall depth: 135mm / 5.3in
Unit weight: 4.7kg / 10.4lb
