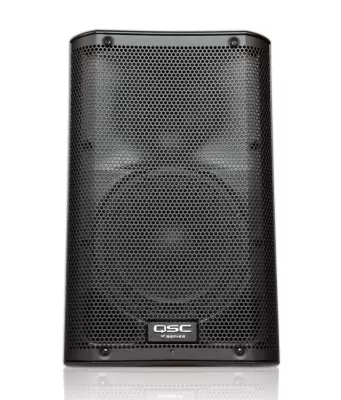

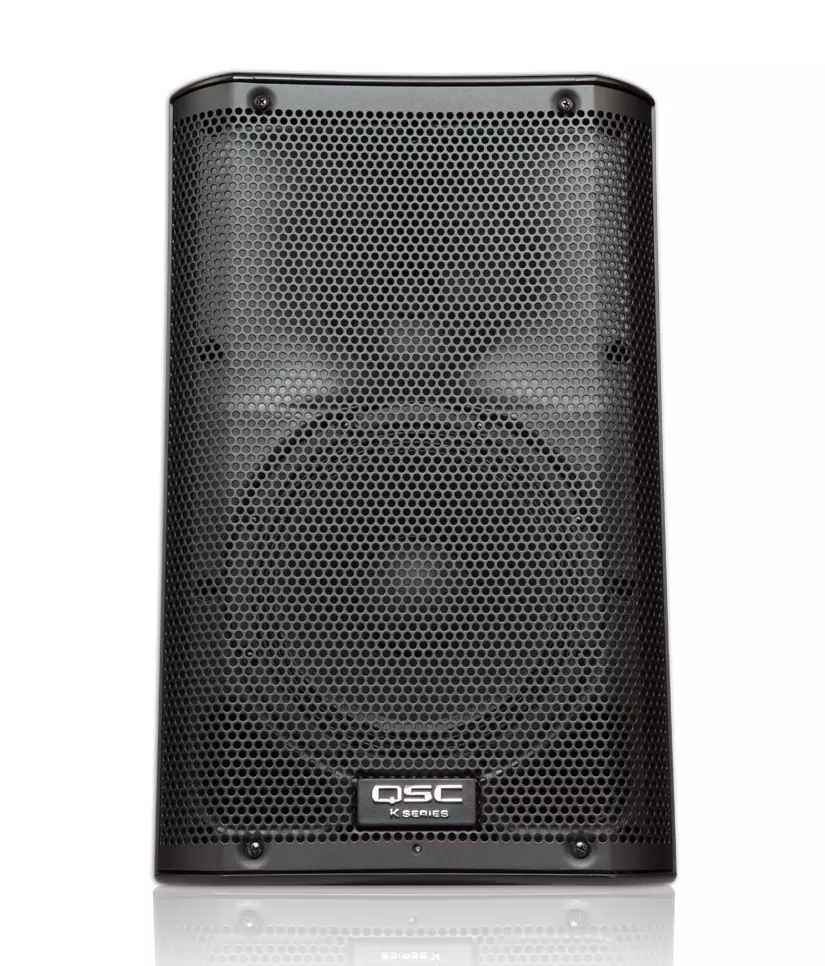

QSC K8 1000 Watt 8'' 2-Way Active Loudspeaker
Additional Photos:
Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system's size and weight.
Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications.
Combo XLR and 1/4" TRS inputs accept both Mic and Line Level input while a set of RCA phono inputs (except KSub) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility.
On-board switches provide preset EQ settings. The HF setting (fullrange models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to Norm, DEEP(TM) for additional bass extension, or Ext Sub (fullrange models) for use with an external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, Off for applications where it is not desirable to illuminate the front LED, or Limit which indicates to the system operator that the clip limiter circuit has been engaged during operation.
Fullrange models are housed in rugged ABS enclosures with a professional appearance that is at home in any application. ABS is a far more robust material than conventional speaker plastics and offers an additional measure of sonic clarity due to its internal rigidity. Ergonomic aluminum handles and a highly protective steel grille complete the package for ease of transport and long term durability.
The K Series fullrange models feature a unique Tilt-Direct(TM) pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. Integrated M10 suspension points allow for suspended applications with a K Series M10 KIT (sold separately)
Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Euroblock connector. In an installed application, multiple K Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity.
The QSC K8 powered PA speaker is housed in a rugged ABS enclosure with a professional appearance that is at home in any application. ABS is a far more robust material than conventional speaker plastics and offers an additional measure of sonic clarity due to its internal rigidity. Ergonomic aluminum handles and a highly protective steel grille complete the package for ease of transport and long term durability.
Features:
• Lightweight portable powered speakers with legendary QSC amplifier power and reliability
• 1,000 Watt Class D power module
• Extensive DSP enhances system performance
• Attractive and professional appearance
• Rugged ABS enclosure
• Tour-grade 18 gauge steel grill
• Ergonomic handles with comfortable, non-slip grip
Specifications:
Configuration: Trapezoidal 2-way
Transducers: 8 in. cone transducer, 1.75 in. HF driver
Frequency Response (-6 dB): 66 Hz - 18 kHz
Frequency Range (-10 dB): 61 Hz - 20 kHz
Nominal Coverage (-6 dB): 105 degree conical
Maximum SPL (1 meter): 127 dB peak
Amplifier:
Power Output: 1000 W Class D (400 W LF, 500 W HF), 2000 W peak
Input Impedance (ohms): XLR-1/4": 40k balanced / 20k unbalanced
XLR-1/4" MIC mode: 2260 balanced
RCA: 10k
Controls:
Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
Indicators:
Power, Signal A, Signal B, Standby, Limit, Mic
Connectors:
Balanced female XLR-1/4" line/mic level input,
Balanced female XLR-1/4" line level input,
Dual Balanced male XLR full range line level out,
Balanced male XLR "mix" out,
Stereo RCA line level input,
Remote gain control,
Locking IEC power connector
Cooling:
On demand, 50 mm variable speed fan
Amplifier Protection:
Thermal limiting, output overcurrent, overtemperature muting, GuardRail(tm)
Transducer Protection:
Thermal limiting, excursion limiting
AC Power Input
Universal power supply 100 - 240 VAC, 50 - 60 Hz
AC Power Consumption (1/8 Power)
100 VAC, 2.3 A
120 VAC, 2.01 A
230 VAC, 1.13 A
Enclosure
Material: Impact resistant ABS
Finish: Black paint
Grille: Black powder coated 18 gauge steel
Dimensions (HWD): 17.7" x 11" x 10.6" (450 mm x 280 mm x 269 mm)
Weight (Net): 27 lb / 12.2 kg
