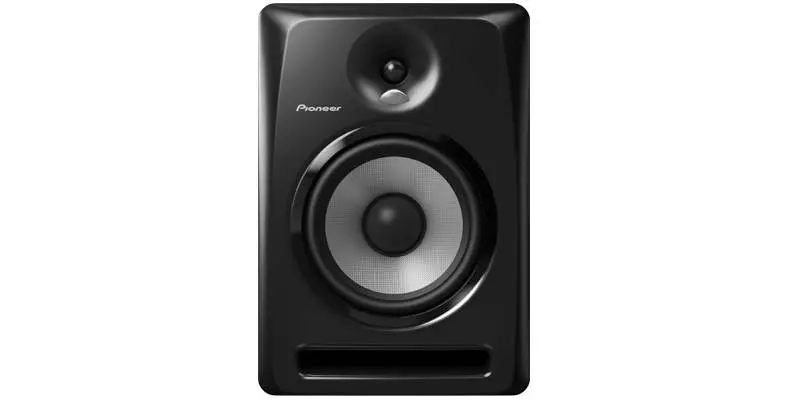

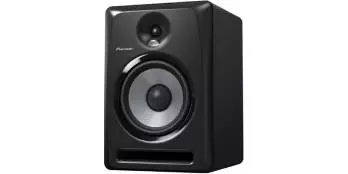

Pioneer DJ 8-inch Active Reference DJ Monitor
Additional Photos:
Features:
Audio Quality: For maximum audio performance, increased bass output and reduced unwanted resonance, each speaker utilizes a highly rigid medium density fiberboard for the construction of its enclosure and bass reflex ducts. Additionally, to optimize sound quality and increase reliability, Pioneer uses woofers made with aramid fiber cones and soft dome tweeters infused in magnetic fluid.
Groove Technology: To improve airflow through the port of the enclosure, Pioneer engineered the port hole with grooves to help direct the sound waves smoothly. The technique decreases standing waves from the mouth of the port, resulting in smooth bass and midbass output, with more impact.
Convex Diffuser: Matching the bass output of the speakers, the soft dome tweeters are set in the center of a convex diffuser optimizing output and dispersing the sound energy in both left and right directions for wider imaging. The blue area below shows the normal spread of sound, and the orange area displays the enhanced spread of sound with the diffuser. For a cool cosmetic look, the diffuser also illuminates in white when the speakers are powered on.
Class AB bi-amp: Driving the speakers is a highly efficient Class AB amplifier in a bi-amp configuration to power the tweeters and woofers separately.

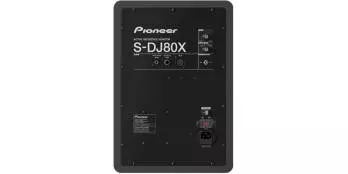

EQ Controls: The speakers also enable users to adjust high-pass level output via the built-in equalizer from the back of the speaker. The equalizer adjusts the high frequency range in one decibel increments (-2dB to +1dB), tailoring the audio output to the users listening preference.
Extras: For convenience and power conservation, the speakers also include an Auto Standby mode that automatically turns itself off when there is no input signal sensed after 25 minutes and powers back on when signal input is detected.
Specifications:
• Type: Bi-amp 2-way bass reflex active speaker
• Tweeter: 1-inch soft dome tweeter
• Woofer: 8 inch aramid fiber
• Frequency characteristics: 40 Hz to 20 kHz
• Amplifier Output:
- Class A/B bi-amp 160W
- LF: 125W (70W)
- HF: 35W (20W)
• Input terminals:
- Balanced input: XLR x 1, TRS (1/4 inch PHONE) x 1
- Unbalanced input: RCA x 1
• Maximum external dimensions (W x H x D): 10.87" x 15.79" x 12.40" (including heat sink)
• Weight (for pair): 26.01 lbs
• Accessories: power cord, user manual
