Yorkville Sound Micromix 800-Watt Stereo 10 Channel Powered Mixer

Departments > Pro Audio & Recording > Mixers > Mixers - Powered-Box Style > Yorkville Sound > Micromix 800-Watt Stereo 10 Channel Powered Mixer
Add to Wish List
SKU: # 290358
Model: #

M810-2

Your Price: $1,079.00 CDN

Online

The convenience, lighter weight and small 'footprint' of a box mixer with the tilt-back visibility and channel control access of a desk mixer makes these new 'wedge' mixers an ideal high power, high quality powered mixer solutions. High-powered high-efficiency class-H power amplifiers, newly designed input strips, on-board DSP, a new, more effective master EQ section and ten very useful and usable input channels complete the new 'wedge' mixer packages.

The 800-watt M810-2 has two integrated 400-watt power amplifiers that can be assigned as stereo mains, or mono main and mono monitor. Each amplifier is attached to an innovative master EQ section designed specifically for these new mixers. The master EQ has a 9-band graphic EQ with additional high and low shelving EQ's at either end of the frequency band. The nine graphic sliders are essentially all of the middle bands of a 15-band graphic EQ with the low and high frequency bands covered by separate shelving controls. This gives the user more control over the feedback-prone mid frequency bands; with high and low tone-shaping frequencies controlled by additional simple +/- 15 dB trim controls.

The M810-2 has 10 input channels. The first six channels have balanced XLR microphone and TRS balanced inputs, input trim control, three-band EQ, master volume and trim set light. The mono line inputs on channels 5 and 6 are pre-EQ'd for Hi-Z instrument level input, making them an ideal place to start when looking for that perfect live acoustic guitar or direct bass sound. When the input trim level is properly set, users will have ample overall gain while taking full advantage of the new clip elimination circuit which makes it virtually impossible to distort the input of the microphone and instrument channels.

All Yorkville Box Mixers are built knowing they have to withstand a long worry free life on the road. Designed for the working musician, only high quality epoxy circuit boards coated with thick copper laminate and precision low noise components are used. Large heatsinks and variable speed DC fans ensure that the mixers keep their cool even under the most demanding live performance conditions. Of course MicroMIX mixers also come with Yorkville's standard two year unlimited transferable warranty in the USA and Canada, ensuring Yorkville mixers will continue to deliver the "Best Bang for the Box" night after night.

Chassis are constructed of heavy metal to withstand all the rocking and rolling associated with life on the road while inside we use high quality epoxy circuit boards coated with thick copper laminate and precision, 0.1-1% tolerance, low noise components. A large heatsink and a variable speed DC fan ensure that the mixers keep their cool. Of course MicroMIX mixers also come with Yorkville's standard two year (even if you break it!) transferable warranty in the USA and Canada. These are just a few of the characteristics which make MicroMIX mixers the "Best Bang for the Box".

Features:
• 10 Channels
• 400 watts per channel @ 4 ohm (Assignable Left/Right or Main/Monitor)
• Gold plated dual contact XLR connectors (all channels)
• TRS balanced inputs (dual inputs for stereo channels 7/8 and 9/10)
• "Set" LED's for easy and proper adjustment of Trim control
• 3 bands of EQ on channel strips
• 9 band graphic EQ for each output with shelving EQ for precise control
• Built in Digital Effects
• Footswitch jack for bypassing effects
• Mute switch (channels 1-8) for quick change-over between band and DJ
• Dual RCA Tape/CD In and Rec Out jacks
• Optional RK1610 rackmount kit (6U)
• Made in Canada

Specifications:
• Number of Channels: 10
• Mono Channel EQ: Low, Mid, High
• Stereo Channel EQ: Low, Mid, High
• Channel Effects: All Channels
• Monitors Effects: Yes
• Balance Controls: Ch. 7 - 10
• Pan Controls: Ch. 1 - 6
• Channel Overload Protection: Ch. 1 - 6
• Inputs - XLR (bal): 8
• Inputs - 1/4 IN: 10
• Inputs - RCA (unbal): 1 Pair
• Mute Switches: Global 1 - 8
• Activity / Solo LED: Trim Set Ch. 1 - 6
• Clip / Mute LED: All Channels
• Phantom Power: 48V + LED Indicator
• Internal Effects: 24 Bit stereo, 16 Effects with Parameter Pot
• Auxiliary Sends: Effect - Monitor
• Effects Send: Yes
• Effects Return: Internal
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: Stereo RCA Pair
• Max Gain to Line Out -Mic Input (dB): 84
• Max Gain to Line Out -Line Input (dB): 82
• Master EQ -1 (type/Channels/Range -dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving
• Monitor EQ -1 (type/Channels/Range-dB): Graphic 9 band (160hz-6.3khz) +2 band Shelving
• Main Outputs (Line Level): 2 x 1/4inch TRS
• Main Amp Inputs (Line Level): 2 x 1/4inch TRS
• Monitor Outputs (Line Level): 1 x 1/4inch TRS
• Outputs - Amp A - 1/4 IN Jacks: 2
• Outputs - Amp A - Speakon 4-pin: 1
• Outputs - Amp B - 1/4 IN Jacks: 2
• Outputs - Amp B - Speakon 4-pin: 1
• Mixer - Signal to Noise Ratio (dB): 105
• Mixer - Freq Resp (Tone and EQ Flat,2dB): 20 - 20,000
• Mixer- Input Ref Noise to line out @150 Ohms(dBv): -119
• Mixer THD (Main out w/ -10dB input): 0.0001
• Amp A-Power [email protected] Ohms (0.1 PER THD 1kHz): 250
• Amp A - Power Output @ 4 Ohms: 400
• Amp A - Power Output -other: 400 @ 2 ohms
• Amp B-Power [email protected] Ohms (0.1 PER THD 1kHz): 250
• Amp B - Power Output @ 4 Ohms: 400
• Amp B - Power Output -other: 400 @ 2 ohms
• Amp C-Power [email protected] Ohms (0.1 PER THD 1kHz): 0
• Amp C - Power Output @ 4 Ohms: 0
• Amp D-Power [email protected] Ohms (0.1 PER THD 1kHz): 0
• Amp D - Power Output @ 4 Ohms: 0
• THD - 1kHz (dB): 0.001
• THD - 20Hz-20kHz (dB): 0.005
• Hum and Noise (un / Aweight -dB): 0.94392523364486
• Typical crosstalk -1 kHz (dB-: better than -60db
• Input Impedance - Bal/Unbal (Ohms): 20k / 10k ohms
• Input Sesitivity (Vrms Sine): 1.4
• CMRR @ 60Hz (min/typ): -37db / -60db
• Max Votage Gain (dB): 29
• Power Consumption (typ/max): 4.2A @ 60Hz / 2.2A @ 50Hz
• Protection: Thermal, Short Circuit, Current, Clip
• Cooling: 2 x 80mm Fans
• Transformer Type: Toroidial
• Finish: Grey and Black Powder Coat
• Chassis Construction: Steel and Aluminum
• Rackmount: Yes (Kit Available - 6U)
• Other Features: Tiltback or Upright Wedge Angles
• Dimensions (DWH, inches): 11.1 x 18.6 x 11
• Dimensions (DWH, cm): 28 x 47 x 28
• Weight (lbs/kg): 28.2 / 12.8

http://yorkville.com/mixers/micromix/product/m810-2/

Great sound,adaptable powered board0 of 0 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StorePort Coquitlam, British Columbia
I have owned a M810 mixer for over 10 years and have used this p.a on stage with ease.Sending drum channels from a sub mixer to the stereo channel allows the remaining channels to be utilized by keys (stereo), acoustic guitar,D.I bass and mics.Plenty of power and a Amp in if need be great mixer,money well spent.
Posted by Marc on Dec 7, 2020
Was this review helpful?    flag review

Great but requires lots of cleaning0 of 0 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreBrantford, Ontario
I have had one for about 8 years and love it. Unfortunately it doesn't always power the two speakers when in stereo. Seems to be related to a sticky knob or bad circuit. I have had it cleaned before which got it working well for about 6 months and then it started up again. Then went away and is back again. Have to push the stereo mono button a few times and eventually it kicks both speakers in, usually lasts for an hour, but sometimes it is intermittent like every 15 minutes or so. Still highly recommend them, mine might be a dub or I don't take good enough care of it. It just sits in the basement.
Posted by Nathan on May 28, 2020
Was this review helpful?    flag review

Great Unit1 of 1 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreOttawa, Ontario
Used this at church, on the road, at home and it just keeps on working great. Lots of power for small to medium rooms, enough effets to keep musicians happy and enough channels to fit everyone in.
Posted by anonymous on Feb 5, 2014
Was this review helpful?    flag review

Compact Clean PowerHouse0 of 0 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI've tried it
Closest StoreNorth York, Ontario
Have rented this little box mixer many many times. Have not been disappointed with it at all. Used it for school dances with YX150 cabs. Was asked by the students to turn the volume down. (???) WOW!!! It's not a desk mixer so there is some light strain on the wrists when riding the volume for a lengthy period of time. Solution was to move the mixer from angled to straight position on table. Other than that issue it runs cool and clean, no distortion at all. And it's easy to carry too! Will most certainly buy one in the near future!!!!!
Posted by Keyboard Magic on Jan 17, 2013
Was this review helpful?    flag review

Great Mixer!2 of 2 customers found this review helpful

FeaturesProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
QualityProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
ValueProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
OverallProduct ratingProduct ratingProduct ratingProduct ratingProduct rating
Product ExperienceI own it
Closest StoreHalifax, Nova Scotia
I have owned this little mixer for 2 years had no issues works great for our band and the odd DJ'ing gig! Well worth the investment!
Posted by anonymous on Sep 10, 2012
Was this review helpful?    flag review
Sale Price: $699.00

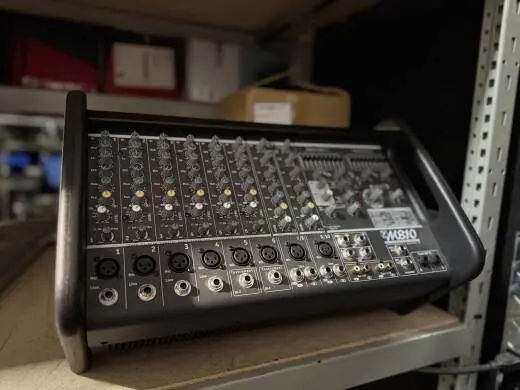

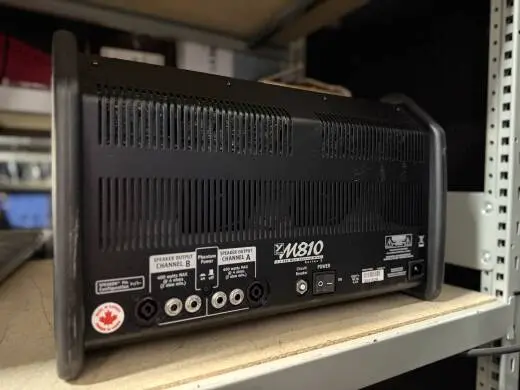

Store Special Product - Yorkville Sound - M810-2
