dbx

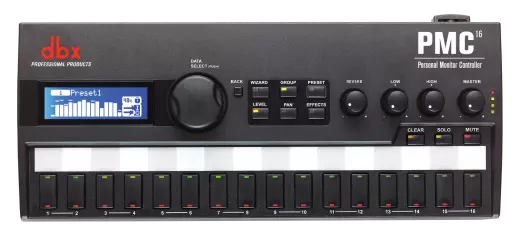

16-Channel Personal Monitor Controller

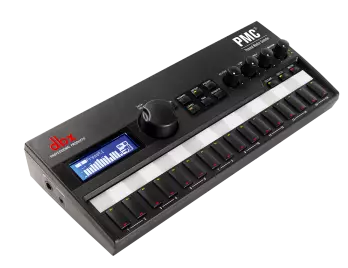

Additional Photos:
Features:
• 16 Channel Monitor Mixer with Level, Pan, Mute, Solo, & Reverb Send Control
• 16 Preset Locations for Mix & Configuration Recall
• LCD Display with 16 Channel Metering
• Built-In Lexicon Reverb
• dbx PeakStopPlus Limiting
• Global High & Low EQ
• Global Master Level Control
• Global Stereo Width Control
• BLU link High Bandwidth, Fault Tolerant Digital Audio Bus
• XLR & 1/4" Stereo or Mono Outputs
• 1/8" & 1/4" Headphone Outputs
• Setup Wizard for Easy Configuration
• Supports 48 kHz & 96 kHz Sampling Rates
• Channel Linking, Grouping, & Multi-Select Capabilities
• Supports up to 60 PMC16s on a Single BLU link Ring
• Built-In Sturdy Mic Stand Mount
• USB Port for Firmware Updates
Specifications:
Audio Performance
Frequency Response: +0/-0.2 dB 20 Hz 20 kHz (Measured at 0 dBu output level)
Dynamic Range: >108 dB unweighted 22 Hz 22 kHz bandwidth
>112 dB A-weighted
THD+N: < .005% 20 Hz 20 kHz (Measured at 0 dBu output level)
Crosstalk: < 97 dB 20 Hz 20 kHz
BLU link Digital Audio Bus
Bit-Depth: 24-bit
Sample Rate: 48 kHz or 96 kHz
Connectors: 2 x RJ45 Ethernet connectors
Maximum Cable Length: 100 m/328 ft between devices (Category 5e cable)
Maximum Number of Nodes: 60
Latency Per Node: 4/Fs [0.08 ms @ 48 kHz, 0.04 ms @ 96 kHz]
Analog Outputs (XLR & 1/4")
Maximum Output Level: 20 dBu
Output Impedance: 40 Ω
Headphone Outputs (1/8 & 1/4)
Power/Impedance: 900 mW per channel at 50 Ω (1/8" and 1/4" jacks are in parallel)
Power
Adapter: PS0920DC-01 (100-240 V AC, 50/60 Hz)
Power Consumption: 18 W
Power Requirements: 9 V DC 2.0 A
Weight/Dimensions
Product Weight: 2.26 lb (1.03 kg)
Power Supply Weight: 0.31 lb (0.14 kg)
Dimensions (H x W x D): 2 1/8" x 11 5/16" x 4 13/16" (5.4 cm x 28.7 cm x 12.2 cm)
