Furman

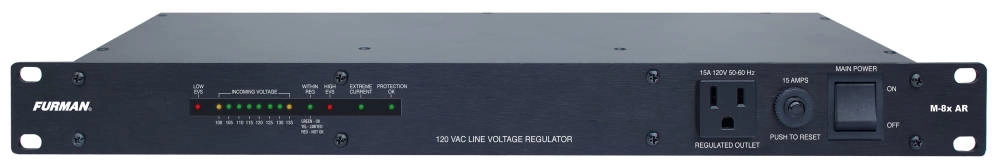

AC Line Voltage Regulator w/ 9 Outlets
Additional Photos:
The Furman M-8x AR Voltage Regulator is intended to protect sensitive electronic equipment from problems caused by AC line voltage irregularities such as brownouts, sags, and over-voltage conditions. Such irregularities can cause audio tonal changes, digital equipment malfunctions (such as loss of MIDI programs or other data), or in extreme cases, permanent damage.
Features:
• Provides nine regulated, conditioned AC outlets-eight on the rear panel and one on the front
• Input capacity is 15 A; output capacity is 12 to 15 A
• Extreme over-voltage (instant) shutdown and under-voltage (delayed) shutdown, safeguard connected equipment
• Extreme Voltage Shutdown (EVS) indicator LED
• Extreme over-current shutdown protects regulator and connected equipment
• Extreme Current Shutdown (ECS) indicator LED
• Tri-color "In-Regulation" indicator
• Protection OK indicator
• Eight element, Bi-color bar graph meter to indicate input line voltage
• User accessible thermal circuit breaker protects against overload
• Low noise toroidal autotransformer with very low stray magnetic field leakage
• Front Panel ON/OFF switch
• Compact, lightweight unit weighs only 15.75 lbs. (7.15 kg)
Specifications:
Nominal Input Voltage: 120 VAC 50/60Hz
Regulation capture range: 97 VAC to 141 VAC
Output Voltage: 120 VAC 5V
Output Current Rating: 15 Amps for input voltages of 124V
Output Current De-rating: 113 mA per volt to a minimum of 12.3A at 100V
Voltage Shutdown Range: Less than 75V or greater than 145V
ECS Shutdown Range: Within 10 cycles at 100A, and within 1 cycle for currents greater than 200A
Voltmeter Accuracy: 5 VAC
Spike Protection Modes: L-N
Spike Clamping Voltage: TVSS rating of 400 volts peak at 500 A, L-N (tested to UL-1449 3rd Ed.)
Response time:1 nanosecond
Maximum surge current: 15,000 Amps
Maximum spike energy: 225 joules
Noise attenuation: Transverse: -16dB @ 10KHz, -33dB @ 100 kHz, -48dB @ 400KHz
Safety Listing: cCSAus
EMI: FCC Part 15 Class B
Dimensions (H x W x D): 1.75" x 19" x 11" (4.45 x 48.26 x 27.94 cm)
Weight: 15.75 lbs.
Features:
• Provides nine regulated, conditioned AC outlets-eight on the rear panel and one on the front
• Input capacity is 15 A; output capacity is 12 to 15 A
• Extreme over-voltage (instant) shutdown and under-voltage (delayed) shutdown, safeguard connected equipment
• Extreme Voltage Shutdown (EVS) indicator LED
• Extreme over-current shutdown protects regulator and connected equipment
• Extreme Current Shutdown (ECS) indicator LED
• Tri-color "In-Regulation" indicator
• Protection OK indicator
• Eight element, Bi-color bar graph meter to indicate input line voltage
• User accessible thermal circuit breaker protects against overload
• Low noise toroidal autotransformer with very low stray magnetic field leakage
• Front Panel ON/OFF switch
• Compact, lightweight unit weighs only 15.75 lbs. (7.15 kg)
Specifications:
Nominal Input Voltage: 120 VAC 50/60Hz
Regulation capture range: 97 VAC to 141 VAC
Output Voltage: 120 VAC 5V
Output Current Rating: 15 Amps for input voltages of 124V
Output Current De-rating: 113 mA per volt to a minimum of 12.3A at 100V
Voltage Shutdown Range: Less than 75V or greater than 145V
ECS Shutdown Range: Within 10 cycles at 100A, and within 1 cycle for currents greater than 200A
Voltmeter Accuracy: 5 VAC
Spike Protection Modes: L-N
Spike Clamping Voltage: TVSS rating of 400 volts peak at 500 A, L-N (tested to UL-1449 3rd Ed.)
Response time:1 nanosecond
Maximum surge current: 15,000 Amps
Maximum spike energy: 225 joules
Noise attenuation: Transverse: -16dB @ 10KHz, -33dB @ 100 kHz, -48dB @ 400KHz
Safety Listing: cCSAus
EMI: FCC Part 15 Class B
Dimensions (H x W x D): 1.75" x 19" x 11" (4.45 x 48.26 x 27.94 cm)
Weight: 15.75 lbs.
