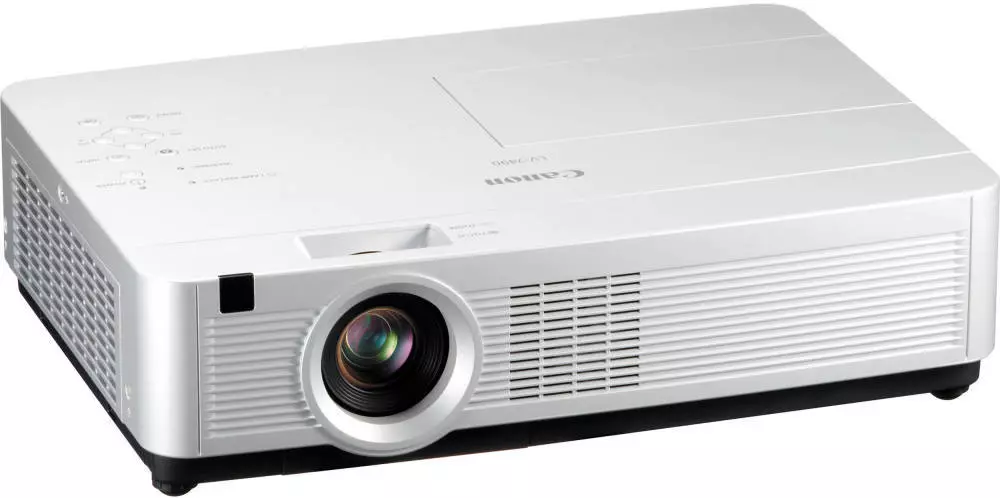

Canon XGA 4000 Lumens Projector
Additional Photos:
Whether your LV-7490 is used as a portable or installed, you will enjoy a far less demanding maintenance schedule. It has the flexibility needed for educators, small or startup businesses and travelers. Everyone will find great value and capability in these high-performance, affordable LCD projectors.
Features:
LCD Technology
Native XGA Resolution (1024x768)
High Brightness - 4000 Lumens
1.2x Optical Zoom Lens - offers ease of projector placement
2000:1 Contrast Ratio - crisp blacks with depth and dimension
Longer Lamp Life - up to 5000 hours in Quiet Mode reduces operating costs
Longer Air Filter Life - up to 5500 hours in ECO Mode reduces maintenance time
Quick Start and Quick Power Off - increases lamp life and convenience of use
Auto Setup Function- a single button performs auto input, auto keystone and auto PC
Auto/Manual Keystone Correction (+/- 30 Vertical)
Multiple Audio Inputs & Output - provide flexibility for audio from DVD or PC played through external speakers
Network-Ready RJ-45 Port - allows remote monitoring through a network PC
RS-232 Serial Port - allows local control through a third-party control system
Built-in Speaker - 10W high output, for clear, well produced sound
Quiet Operation - 29/35 dB (Quiet/Normal)
Closed Captioning - for noisy environments or special needs audiences
Peace of Mind - backed by Canon's "Triple P" Free loaner service program and 3-Year Parts & Labor Limited Warranty
Projector Specifications:
Imaging Device: 0.63" Active Matrix x 3 with MLA
Aspect Ratio: 4:3
Native Resolution: XGA (1024 x 768)
Brightness: 4000 Lumens
Uniformity: 85%
Contrast Ratio: 2000:1
Digital Keystone (Vertical): +/- 30 degrees (Auto/Manual)
OPTICS
Projection Lens: F1.6 - 1.76, f=22.3 - 26.8 mm
Zoom: 1.2x Zoom (Manual)
Focus: Manual
Screen Size: 40" - 300"
Throw Distance: 4.59 - 41.66 ft. (1.4 - 12.7 m)
IMAGE ADJUSTMENTS
Image Mode: Presentation, Standard, High Contrast, Cinema, Blackboard (Green), Colorboard, User 1-4
Wall Correction: Yes
Mounting: Ceiling, Rear, Rear-Ceiling, Upwards, Downwards
Tilt Angle: Adjusting foot up to 10 degrees
INPUT SIGNALS
Scanning Frequency: H:15~100 kHz, V:50~100 Hz
Analog PC Input: WUXGA / UXGA / SXGA+ / SXGA / WXGA / XGA / SVGA / VGA / MAC
Video/S-Video Input: NTSC / PAL / SECAM / NTSC4.43 / PAL-M / PAL-N / PAL-60
Component Input: 1080i / 1035i / 720p / 575p / 575i / 480p / 480i

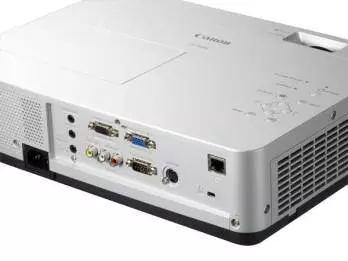

TERMINALS
(Input) D-Sub 15pin: Analog RGB / Component video / S-video input
(Input) RCA x1: Composite Video input
(Input) RJ-45: Yes
(Input) Stereo Mini Jack: Stereo Audio input x 2
(Output) D-Sub 15pin: Analog RGB output
(Output) Stereo Mini Jack: Stereo Audio output
Built-in Speaker: 10W (Mono)
Control Terminal: RS-232C
LAMP
Lamp Type: 245W UHP (AC)
Lamp Life: 3000 / 5000 Hours (Normal / Quiet)
REMOTE CONTROL
Sensor: Wireless Infrared, Front
RATINGS
Fan Noise (Quiet/Normal): 29 / 25 dB
Power Consumption (Normal/Quiet/Stand-By): 322W / 6.2W / 0.5W
Power Voltage: AC100 to 240V, 50/60Hz
Temperature Operating: 41 to 95 F (5 to 35 C)
Temperature Storage: 14 to 140 F (-10 to 60 C), 5%RH ~ 90%RH
Dimension (WxHxD): 33.3cm x 10.16cm x 24.6cm (13.1" x 4.0" x 9.7")
Weight: 3.30 kg (7.28 lbs)
What's in the Box:
- LV-7490 LCD Projector
-Lens Cap (with strap)
-AC Power Cord
-Remote Control (with AAA batteries)
-VGA to VGA Connection Cable (Mini D-sub 15-pin/Mini D-sub 15-pin)
-CD-ROM
-Quick Start Guide
