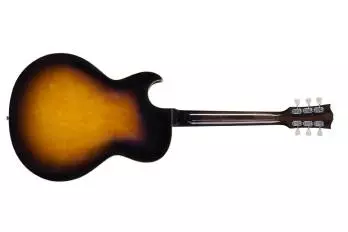

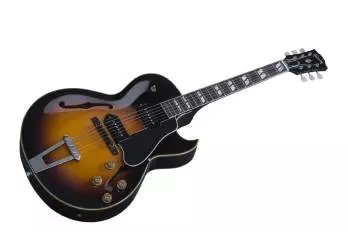

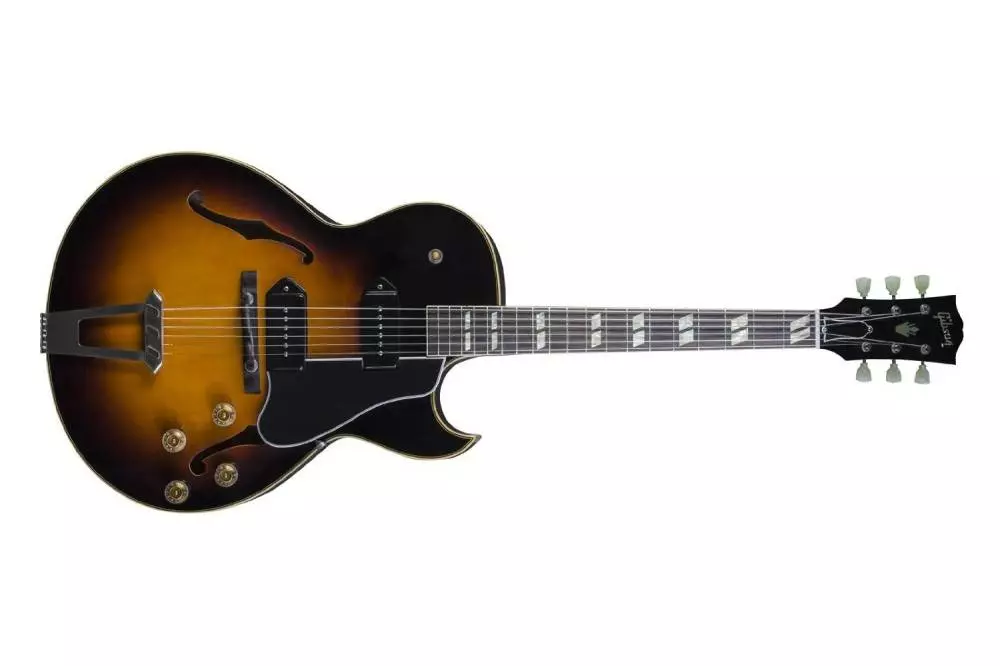

Gibson 1954 ES-175D Ltd in Jim Dickinson Burst
Additional Photos:
Since its origin in 1949, the ES-175 has seen several variations with different pickup and hardware configurations. The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain and depth, and yielding a resonance that can be felt right through the body.
The 1954 ES-175 is refashioned in all its original glory a Maple top and back with period correct one piece solid maple rims and Quartered Adirondack Spruce braces, a Mahogany neck sporting a tan bound Rosewood board with Rolled neck binding and a nylon nut, V.O.S. Nickel hardware, Kluson Single Ring tuners, and MHS P90 pickups wired to Vintage style "no logo" potentiometers. A fully hollow body and sharp Florentine cutaway, the Gibson ES-175 stands out as an all-time iconic jazz guitar of which only 50 will be offered globally.
Features:
• Maple top and back with period correct one piece solid maple rims
• Mahogany neck, tan bound Rosewood board with nylon nut
• Jim Dickinson Burst finish
• Hollow body
• MHS P90 pickups
• V.O.S. Nickel hardware
• Kluson Single Ring tuners
• Rolled neck binding
• Vintage style "no logo" potentiometers
• Quartered Adirondack Spruce braces
• 45• bevel on plastics
• Gibson Hardshell Case
• Only 2 left in Canada
Specifications:
Top Wood: 3-Ply Vintage Plain Maple, Poplar, Maple
Top Binding: Tan
Back Wood: 3-Ply Vintage Plain Maple, Poplar, Maple
Back Binding: Tan
Rims Wood: Maple, Poplar, Maple
Weight Relief: Hollow body construction
Neck Wood: 1 Piece Mahogany
Truss Rod: Historic
Neck Profile: Soft "C"
Thickness at 1st fret: .855"
Thickness at 9th fret: 1.000"
Peg Head: SP-1
Peg Head Inlay: Mother of Pearl Crown
Peg Head Binding: None
Peg Head Logo: Mother of Pearl "Gibson"
Headstock Angle: 17 degrees
Fingerboard Wood: 1 Piece Dark Rosewood
Fingerboard Radius: 12"
Frets: 19
Width at Nut: 1.704"
Width at End of Board: 2.197"
Scale: 24.75"
Side Dots (Color): Tortoiseshell
Inlays: Split Parallelogram
Nut Material: Nylon
Nut Width: 1.704"
Pickups: MHS P-90
Tuning Keys: Kluson Single Ring Tulip Button
Bridge: Compensated Top with Rosewood Base
Tailpiece: 3 diamond
Output Jack: 1/4" jack
Pick Guard: Multi ply black ES-175 with 45• bevel (V.O.S.)
Truss Rod Cover: Vintage (V.O.S.)
Knobs: Gold Speed Knobs (V.O.S.)
