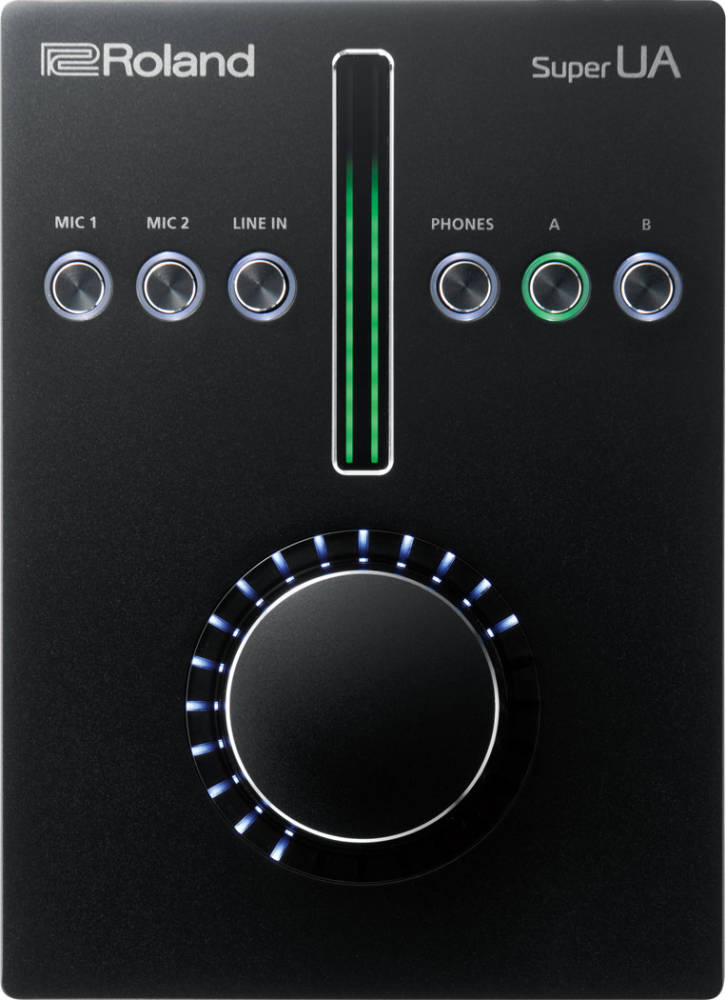

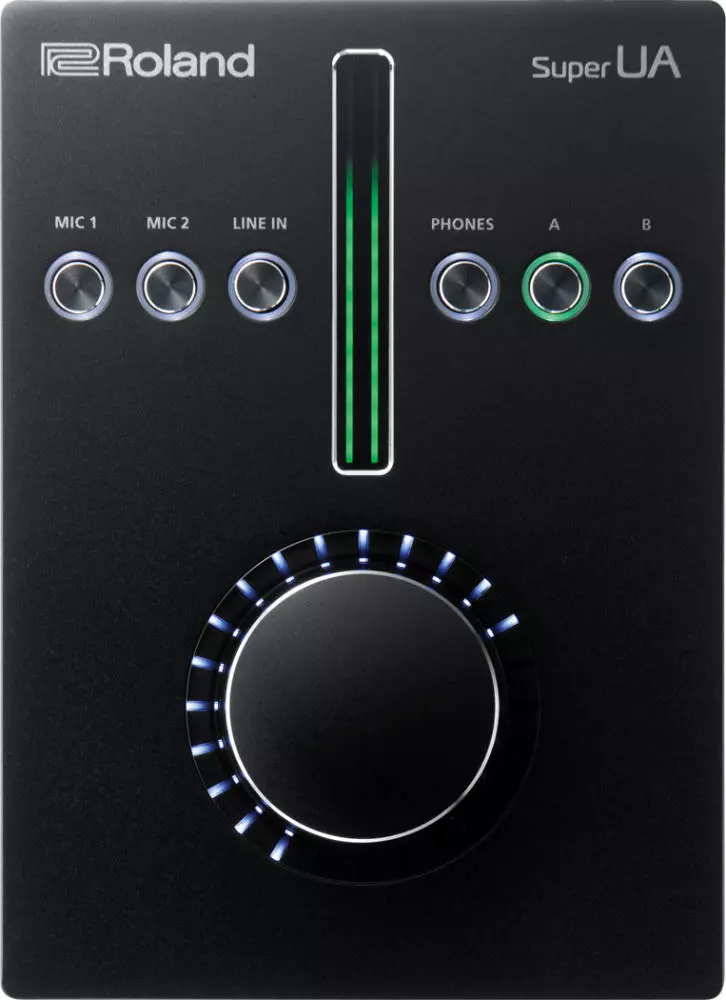

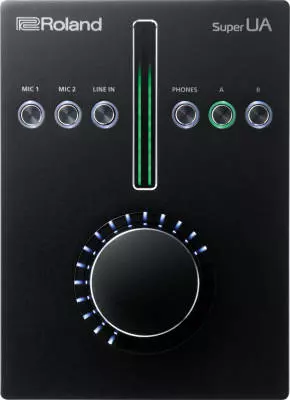

Roland Super UA USB Audio Interface
Additional Photos:
Great Additions
Description
The Super UA combines audiophile sound, premium build quality and low latency performance in a next-generation audio interface for Mac and PC. With native support for both 1-bit DSD and 32-bit PCM playback, the Super UA is the state-of-the-art in fidelity. Low-latency drivers deliver smooth and efficient performance with your favorite DAW. Its modular design, sculpted controls, and all-metal construction make it a pleasure to use and beautiful to behold.
SYSTEM
Number of Audio Playback Channels
PCM format: 6 channels, 2 channels
DSD format: 2 channels
Number of Audio Record Channels
PCM format: 2 channels
*You cannot record in DSD format.
Signal Processing
[PCM format]
PC interface: 32 bits
DA Conversion: 1 bit, 32 bits
AD Conversion: 24 bit
• When "D/A Conversion = 1 bit" is valid, DA conversion operates on 1 bit.
[DSD format]
PC interface: 1 bit
DA Conversion: 1 bit
Sampling Rate
[PCM format]
- PC interface: 352.8 kHz, 192 kHz, 176.4 kHz, 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
- DA Conversion: 3.072 MHz, 2.8224 MHz, 192 kHz, 176.4 kHz
- AD Conversion: 192 kHz, 176.4 kHz
*If the sampling rate is 352.8 kHz, the number of channels is limited to two channels, and playback is possible only via ASIO/Core Audio.
*When "D/A Conversion = 1 bit" is valid, DA conversion operates on 3.072 MHz or 2.8224 MHz.
[DSD format]
- PC interface: 5.6448 MHz, 2.8224 MHz *
- DA Conversion: 2.8224 MHz
*5.6448 MHz DSD data is down-converted to 2.8224 MHz for playback.
DSD Format Playback Method
DoP version 1.0
Interface
Hi-Speed USB

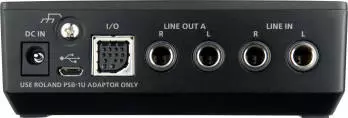

Connectors
[Main unit]

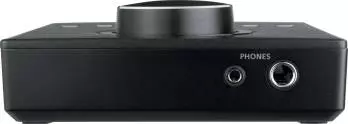

- PHONES jack: Stereo miniature phone type, Stereo 1/4-inch phone type
- LINE OUT A jack: Stereo 1/4-inch phone type, balanced
- I/O connector (Breakout Box)
- USB port: USB Type micro B
- DC IN connector
[Breakout box]
- LINE OUT B jack: XLR type, balanced
- MIC 1 jack, MIC 2 jack: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)
*Current value per channel.
Controller
MIC 1 button, MIC 2 button, LINE IN button, PHONES button, A button, B button
Volume dial
Indicators
- Level indicator
- Volume indicator
- 48V indicator
Characteristics
Nominal Input Level
- LINE IN jack (1/4-inch TRS phone type): -28 +4dBu
- MIC 1 jack, MIC 2 jack (XLR type): -60 -2 dBu
Nominal Output Level
- LINE OUT A jack (balanced): +4 dBu
- LINE OUT B jack (balanced): +4 dBu
- PHONES jack: -2 dBu
Maximum Output Level
- LINE OUT A jack (balanced): +22 dBu
- LINE OUT B jack (balanced): +22 dBu
- PHONES jack: +16 dBu
PHONES Maximum Output Power
- 200 mW + 200 mW (L + R, 40 ohms)
- 65 mW + 65 mW (L + R, 300 ohms)
Headroom
18 dB
Input Impedance
- LINE IN jack (1/4-inch TRS phone type): 12 k ohms (balanced)
- MIC 1 jack, MIC 2 jack (XLR type): 6.8 k ohms (balanced)
Output Impedance
- LINE OUT A jack: 600 ohms (balanced)
- LINE OUT B jack: 600 ohms (balanced)
- PHONES jack: 30 ohms
Frequency Response:
- 192.0 kHz: 20 Hz60 kHz (+0/-1 dB), 20 Hz90 kHz (+0/-5 dB)
- 176.4 kHz: 20 Hz60 kHz (+0/-1 dB), 20 Hz80 kHz (+0/-5 dB)
- 96.0 kHz: 20 Hz44 kHz (+0/-0.5 dB)
- 88.2 kHz: 20 Hz40 kHz (+0/-0.5 dB)
- 48.0 kHz: 20 Hz22 kHz (+0/-0.5 dB)
- 44.1 kHz: 20 Hz20 kHz (+0/-0.5 dB)
Residual Noise Level
- LINE IN to LINE OUT A: -96 dBu typ. (SENS: min., 1 k ohms terminated, IHF-A)
*Internal Direct Monitor Mixer setting
- INPUT level: 0 dB
Dynamic Range
[AD block]
LINE IN: 112 dB typ. (SENS: min.)
MIC 1, MIC 2: 111 dB typ. (SENS: min.)
[DA block]
LINE OUT A, LINE OUT B: 118 dB typ.
OTHER
Power Supply
AC Adaptor
Current Draw
1,000 mA
Accessories
- Owner's Manual
- Leaflet "USING THE UNIT SAFELY"
- AC adaptor
- USB cable (1 m, 3-1/3 inches)
