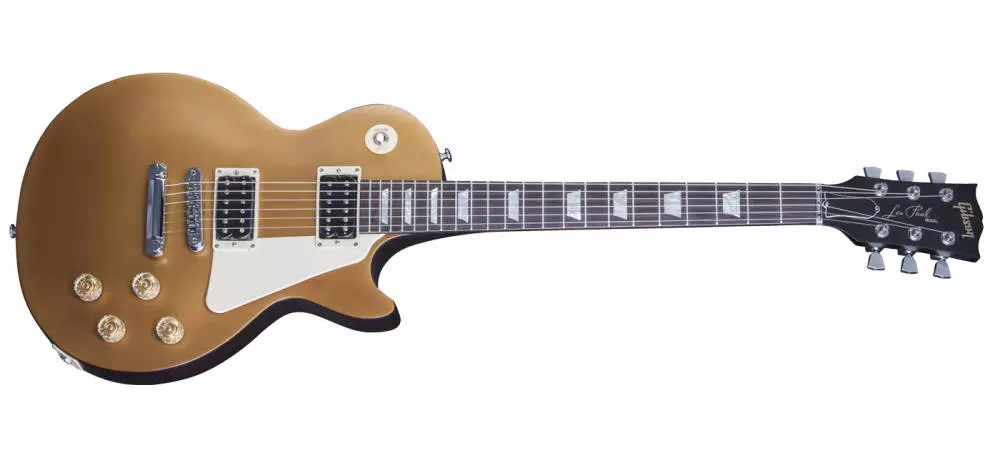

Gibson 2016 Les Paul '50s Tribute HP - Satin Gold
Additional Photos:
Les Paul 50s Tribute 2016 HP
Features
• Mahogany body w/A maple top
• Mahogany neck w/Les Paul Rounded profile
• Rosewood fingerboard
• 490R and 498T humbucking pickups
• Chrome hardware
• Satin finishes
• HP Gig Bag
• Tuners: Next generation Gibson G FORCE
• Switch: Sturdier, noiseless toggle switch
• Bridge: Titanium saddles
• Neck width: Soloist neck width
• Inlays: Mother of pearl inlays
• Jack: Gold plated multi contact jack
• Neck heel: Fast-access heel
• Nut: Titanium adjustable zero-fret nut
Details
Top
Wood Species: Maple
Pieces: 2
Grade: AA-HD,SV, C-GS, SE
Binding: None
Back
Wood Species: Mahogany
Pieces: Multi
Density: Low
Binding: None
Weight
Weight Relief: Modern
Body Contour
Carve: Classic
Neck
Wood Species: Mahogany
Pieces: 1
Truss Rod: Les Paul
Profile: Rounded
Thickness at Fret 1:0.818"
Thickness at Fret 12:0.963"
Peg Head
Type: SP1-B
Silkscreen: Gold Gibson & Les Paul Model
Headstock Angle: 17 degrees
Sculpted Neck Joint
Neck Fit
Joint Angle: 5.0 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortise and Tenon
Gauges Used: Pitch Height Gauge, Alignment Gauge
Nut
Style: Zero Fret Nut
Material: Titanium
Width: 1.745"
Slots: E: 1.4732 mm / 0.058 inchesA: 1.2192 mm / 0.048 inchesD: 0.9652 mm / 0.038 inchesG: 0.7112 mm / 0.028 inches B: 0.4826 mm / 0.019 inches e: 0.3556 mm / 0.014 inches
Fingerboard
Wood Species: Rosewood
Pieces: 1
Shade: Dark
Fingerboard Details
Radius: 30.48 cm / 12"
Frets: 22
Nut/End of Board: 1.745" @ nut, 2.310" @ end of board
Scale: Equal Tempered Scale
Binding: None
Side Dots (Color): Black
Fingerboard Inlays
Style: Trapezoid
Material: Mother of Pearl
Dimensions:
Large: 16.51 mm x 29.718 mm (0.66" x 1.17") Small: 6.096 mm x 39.624 mm (0.24 " x 1.56")
Pickups (Rhythm/Lead)
Style: 490R498T
Winds/Coil: Screw side/Slug side:5250 / 5250; 6900 / 6900
Material of Wire (gauge):Copper (42)Copper (43)
Coil Dimensions (per coil):6.6294 cm x 1.7272 mm / 2.61" x 0.68"6.6294 cm x 1.7272 mm / 2.61" x 0.68"
Coil Material:ABSABS
Coil Winding Process: Machine Wound/Machine Wound
Pole Piece Material: Nickel plated steel/Nickel plated steel
Pole Piece Position from Nut: 47.3075 cm (18.625")/ 59.52998 cm / (23.437")
Slug Material: Nickel plated steel/Nickel plated steel
Slug Dimensions (diameter x length): 4.7498 mm x 1.24206 cm (0.187 x 0.489")/ 4.7498 mm x 1.24206 cm (0.187 x 0.489")
Magnet Material: Alnico #2 (smooth)/ Alnico #5
Magnet Position from Nut: 48.26 cm (19 ")/ 58.7375cm (23.125")
Cover: None/None
Qfactor: 5.62/4.07
Resistance DC: 7803 Ohms/13980 Ohms
Resonant Frequency: 2715.71 Hz/2012.49 Hz
Control Pocket Assembly (Lead Volume/Rhythm Volume)
Type: 500K Non-Linear
Peak Voltage: 500V
Range: 0-500K
Power Rating: 1/4 watt above 100K ohms
Resistance Tolerance: +/- 20%
Minimum Resistance: 200 ohms
Capacitors: Lead Value/Rhythm Value: .022uF/.022uF
Hardware
Tuning Keys
Style: G FORCE
Material: Zamak
Tuning Keys Details
Tuning Ratio: 40:01:00
Gear Type: Syncronized spur gear system
What is allowable turn: +/- 4 degrees
Plating specs: Chrome
Bridge
Style: Tune-o-matic w /Titanium saddles
Material: Zamak base
Plating Specs: Chrome
Part number: 430-14384
Dimensions of String Slots
E:1.4732mm / 0.058"
A:1.2192mm / 0.048"
D:0.9652mm / 0.038"
G:0.7112mm / 0.028"
B:0.4826mm / 0.019"
e:0.3556mm / 0.014"
Tailpiece
Style: Stop Bar
Compensated: No
Material: Zamak
Plating Specs: Chrome
Output Jack
Style: HP 1/4" mono gold plated positive contact
Jack Plate
Style: Les Paul Square
Material: Cream
Strap Buttons
Material: Aluminum
Plating Specs: None
Plastics
Pick Guard
Style: Removable Les Paul Cream
Truss Rod Cover
Style: Blank Black/White Bell
Knobs
Style: Supreme grip speed knobs
Control Plate(s) (Backplate Cover)
Style: Stainleess steel infused polycarbonate for Electrostatic Discharge protection
Control Plate(s) (SwitchPlate Cover)
Style: Stainleess steel infused polycarbonate for Electrostatic Discharge protection
Switch Washer
Style: Cream, Hot Stamped Gold
Trim Rings
Style: Cream humbucker Low/High
Accessories
Style: HP Gig Bag
Color: Black
Tools: Truss rod wrench 2.5mm adjustment wrench, Polishing cloth
Manual:Yes
