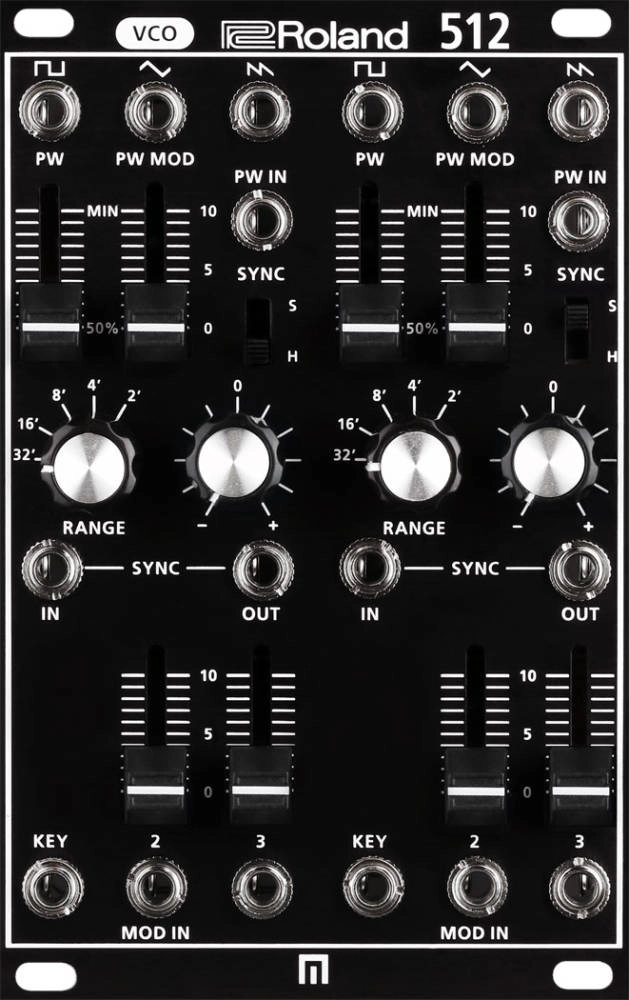

512 Dual VCO Eurorack Module for System 500

The 512 Dual VCO (voltage controlled oscillator) is a single module consisting of two voltage controlled oscillators.
Each independent VCO produces frequencies across a wide range with 1V/octave tracking and dedicated pulse, triangle, and saw wave outputs. Variable pulse width is available via panel control or CV modulation. Each oscillators frequency can also be synchronized to the other in weak or strong modes to achieve a unique sync sound.

Classic System. New Format.

Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original SYSTEM-100M modular synthesizer with the advantages of a modern instrument. The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

SPECIFICATIONS:

Controllers:
PULSE WIDTH slider
PULSE WIDTH MODULATION slider
MODULATION IN 2 slider
MODULATION IN 3 slider
SYNC switch
RANGE knob
PITCH knob

Connectors:
SQUARE WAVE jack: Miniature phone type
TRIANGLE WAVE jack: Miniature phone type
SAW WAVE jack: Miniature phone type
PULSE WIDTH IN jack: Miniature phone type
SYNC IN, OUT jacks: Miniature phone type
KEY IN jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type
MODULATION IN 3 jack: Miniature phone type

Power Supply:
Eurorack power

Current draw:
70 mA (+12 V)
55 mA (-12 V)

Accessories:
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Eurorack installation screws (4 pcs)
Eurorack power cable
