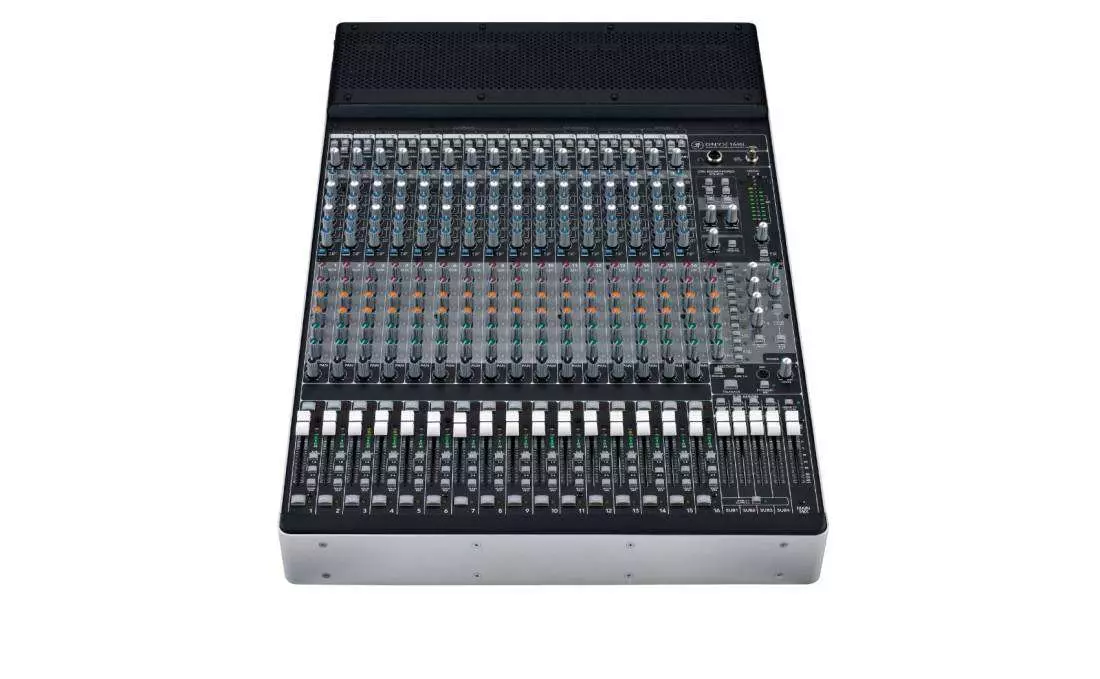

Mackie 16-Channel/4-Bus Compact Recording Mixer
The Onyx 1620i is equipped with 16x2 FireWire capability, allowing all channels, aux sends and main L/R to be routed to any desired DAW, including Pro Tools 9 and M-PoweredTM 8. The FireWire output from the computer may be brought back straight into a channel strip for easy mix integration. FireWire aggregation allows multiple Onyx 1620i mixers to be connected.
Each mono channel has an Onyx mic preamp, phantom power, an input Gain control with 60 dB of gain, a sharp 18 dB/octave, 75 Hz Low Cut lter, Pan, Mute, Solo, a 60mm fader and a Channel Insert jack for connecting an external processor.
There are built-in DIs on the rst two channels for direct connection of guitars or bass and a dedicated talkback section for easy communication with band members on stage or during recording sessions.
Other features include a stereo tape input and output, a 1/4-inch stereo headphone jack, stereo 12-segment LED meters and XLR and TRS stereo output jacks. The Control Room/Phones section has its own level control, outputs and input matrix for selecting any combination of Main Mix, Tape In and Alt 3-4.
Despite its large channel count, the Onyx 1620i is compact and rack mountable. Plus, its a Mackie which means it is Built-Like-A-Tank and will survive years of abuse.
Features
• 16-channel premium analog mixer with integrated 24-bit / 96 kHz FireWire I/O
• Eight Onyx boutique quality mic preamps
• 4-band Perkins EQ with sweepable mids on mic/line channels
• 3-band Perkins EQ on stereo line channels
• 16x2 FireWire routing, including aux sends, main L/R and pre/post EQ assignment for all channels
• Compatible with most major DAWs Pro Tools 9 / M-PoweredTM 8
• Logic
• SONARTM
• Cubase
• Ableton Live Final Cut Pro ...and more
• Four aux sends with pre/post assignment
• Smooth 60mm channel and master faders
• Built-in DI on rst two channels for direct connection of guitars, bass, etc.
• Individual 48V phantom power switches on all mic inputs
• Talkback section with built in mic and exible routing
• Planet-Earth switching power supply for worldwide use
• Optional rack kit available
• Includes Tracktion 3TM Music Production Software for Mac or PC
