Nord 88 Note Weighted Hammer Action Stage Piano
Departments > Keyboards > Digital Pianos > Digital Pianos - Stage > Nord > 88 Note Weighted Hammer Action Stage Piano
In-Store

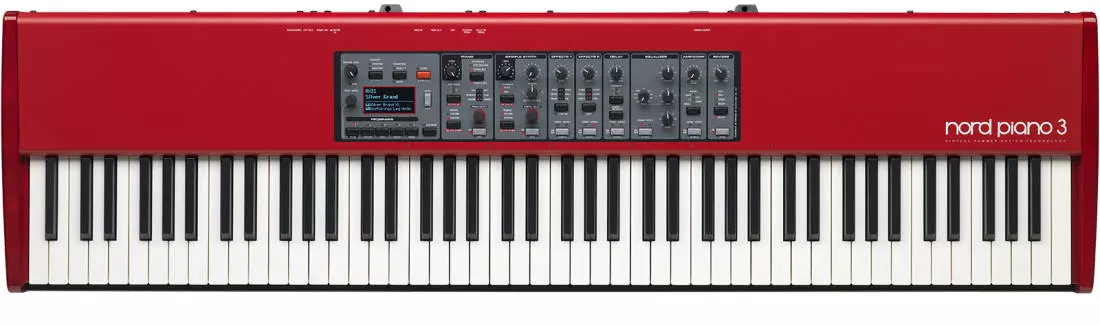

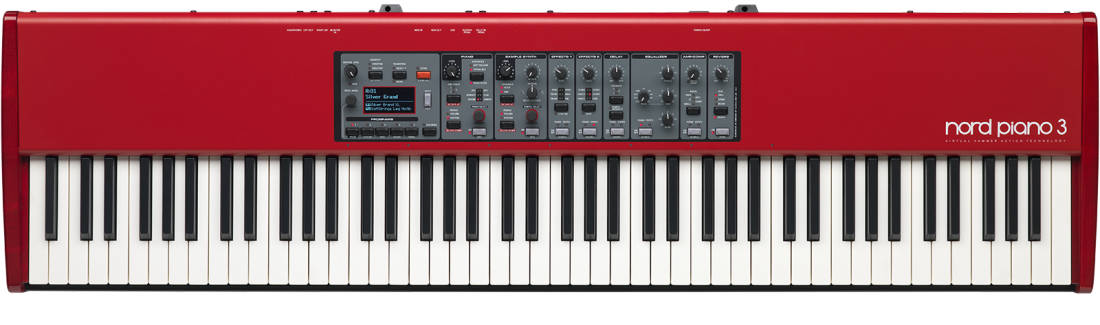

Nord's Piano 3 88-key Stage Piano features a virtual hammer action weighted keybed, with 1GB Sample Memory, a triple pedal, and onboard effects.
NEW VIRTUAL HAMMER ACTION TECHNOLOGY
The Nord exclusive Virtual Hammer Action Technology simulates the hammer movements in a Grand Piano delivering outstanding authenticity and dynamic response. The Triple Sensor keybed allows key movements to be determined with stunning precision. The result is a keyboard action that handles dynamic playing with amazing control at any velocity level.
PIANO SECTION
The Nord Piano 3 features 1 GB of memory dedicated to the exclusive sounds from the Nord Piano Library carefully selected for their specific and individual character. The ever expanding Nord Piano Library is filled with uniquely sampled acoustic and electric instruments, with an outstanding range of velocity levels allowing for exceptional dynamic control.
The Factory Bank features 6 Grand Pianos, 5 Upright Pianos, 11 Electric Pianos, Clavinet and Harpsichords. Replacing the sounds in your Nord Piano 3 is simply a matter of dragging and dropping files in the Nord Sound Manager for Mac and Windows.
MAIN FEATURES
General
• 88-note Triple Sensor keybed with improved grand weighted action
• Nord Virtual Hammer Action Technology for greatly improved key response
• OLED-display for better overview
• 1 GB memory for Nord Piano Library
• 256 MB for Nord Sample Library
• Layer and split-functionality
• Nord Triple Pedal
Piano Section
• 4 Dynamic Curves
• Nord Triple Pedal - Includes soft and sostenuto pedals in addition to a unique dynamic sustain pedal enabling the use of half-pedaling and "release and catch" techniques.
• Dynamic Pedal Noise - Recreates the mechanical sounds of lifting and releasing the damper mechanism, producing the characteristic thomp and sizzle sounds.
• Advanced String Resonance (Gen 2)
• Soft Release
Sample Synth
• Dedicated Sample Synth section with Attack, Decay/Release and dynamic controls
Effects
• All effects in Stereo
• Tube overdrive simulation
• Vibe effect
• Separate Reverb/Delay effects
• Tremolo, Pan, Ring-Mod and Wah-wah can be controlled with Control Pedal
SPECIFICATIONS
GLOBAL
• OLED Display
• 4 banks with 50 programs - 200 locations
• Organize functionality for programs
• Live Mode - 5 Live programs
• Global Transpose: +/- 6 semitones
• Program Transpose: +/- 6 semitones
• Fine-tune: +/- 50 Cents
• Kbd Touch: 4 velocity response curves
• Triple Sensor keybed with Virtual Hammer Action Technology
• Split functionality with selectable split point and LED indication
• Layer functionality
• Mono Output option
• Dynamic Sustain Pedal action with the included Nord Triple Pedal
• USB-MIDI
• Free OS updates

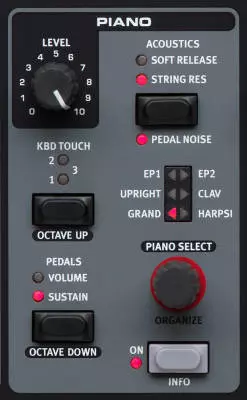

PIANO SECTION
• 6 types - Grand, Upright, Electric Piano 1, Electric Piano 2, Clavinet and Harpsichord.
• Each category can contain up to 9 different models.
• Organize functionality for piano sounds
• 40/60 Voices Polyphony (stereo/mono pianos)
• Advanced String Resonance (Generation 2) - adjustable amount
• Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
• Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 - adjustable amount
• Octave Transpose: -1/+1
SAMPLE SYNTH SECTION
• 15 Voices Polyphony
• Organize functionality for samples
• Amp envelope with Attack and Decay/Release
• Selectable velocity sensitive low pass filter and dynamic range
• Octave Transpose: -1/+3
• Sustenuto pedal can be set as sustain or latch pedal for the • Sample Synth section.
• Volume controllable with Volume Pedal (not included)
MEMORY
• Approx. 1 GB dedicated to the Nord Piano Library
• Approx. 256 MB dedicated to the Nord Sample Library 2.0

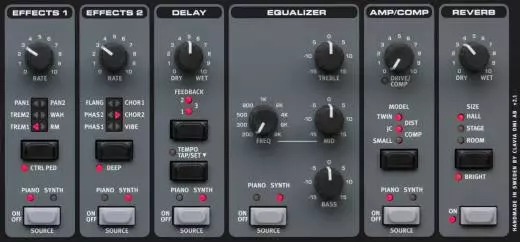

EFFECTS SECTION
Effect 1
• Pan, Tremolo, Wah and Ring Modulator
• Three selectable depths for the Pan and Tremolo, rate controlled with the Effect 1 Rate knob
• Tremolo, Pan, Ring-Mod and Wah can be controlled with Control Pedal
Effect 2
• Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
• Two selectable depths for each effect
Amp Simulations, Comp and EQ
• Comp/Amp - three amp/speaker simulations, Tube Overdrive
• Drive/Compression amount controlled with the Drive knob
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation
Master Effects
• Dedicated Reverb with Room, Stage and Hall algorithms, each with an additional Bright mode
• Dedicated Delay Effect - Rate, Amount and Tap-tempo function
CONNECTIONS
• 2 Audio outputs L & R - 1/4", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - 1/4", 6,35 mm stereo jack
• 1 Piano pedal input - 1/4", 6,35 mm jack. Use the included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc
• 1 Volume Pedal input - 1/4", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• MIDI In, MIDI Out - 5 pin DIN connectors
• USB - type B connector - for transferring sounds and USB-MIDI
• IEC C14 power connector
DIMENSIONS
• Nord Piano 3: 1287 mm (50.7"), 121 mm (4.8"), 340 mm (13.4")
• Pedal: 264 mm (10.4"), 224 mm (8.8"), 70 mm (2.8")
WEIGHT
• Nord Piano 3: 18.2 kg (40.3 lbs)
• Pedal: 2 kg (4.4 lbs)
INCLUDED ACCESSORIES
Nord Triple Pedal
User Manual
Power cord
Nord Piano Library v5 DVD-ROM
Nord Sample Library 2.0 DVD-ROM
