MIPRO

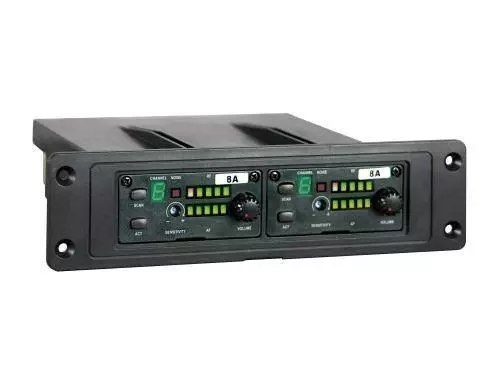

Dual 16-Channel Diversity Receiver Module
This product is no longer available.
Plug-in Dual 16-Channel Diversity Receiver Module (For MA-708 & MA-808). Required ACT-30H-6A or ACT-30T-6A
The modular receiver design allows for fast and easy installation or replacement of MIPRO MA-708 and MA-808 portable wireless PA systems. Installation or replacement takes less than a minute.
Key Features:
• Advanced diversity technology for optimum reception quality.
• Preset with 16 auto-scanable frequencies.
• One-touch Scan for one of the 16 clear, interference-free frequencies.
• One-touch ACT syncs the transmitter and receiver frequency automatically.
• Bright and easy-to-read channel display.
• 5-segment RF and Audio meters.
• Warning indicator detects potential interference.
• When installed, master volume of MA-708 & MA-808 portables can be wirelessly controlled from a distance by a ACT-30Hr handheld transmitter microphone (sold separately).
Specs:
Frequency Range: UHF 480~934MHz
Oscillation Mode: PLL synthesized
Bandwidth: 24MHz
Preset Channels: 16
Receiving Mode: CPU-controlled Diversity Receiving
Squelch Control: "PiloTone & NoiseLock" dual-squelch circuit
Display Status: Channel, RF & audio meters, interference warning indicator & Sensitivity adjustor.
Sensitivity: 6dBμV, at S/N > 80dB
Spurious Emissions: < 82dB
Frequency Response: 60Hz ~ 15kHz (Overall system)
S/N Ratio: > 100dBA
T.H.D.: < 0.5% @ 1kHz (Dev.=40kHz)
AF Output: 610mV rms
Power Supply: 12-15V DC
Current Consumption: < 190 mA
Operating Temperature: -10 - 60 degC
Dimensions: 220(W)57(H)190(D)mm / 8.7(W)x2.2(H)x7.5(D)"
Weight: 622g / 22oz
