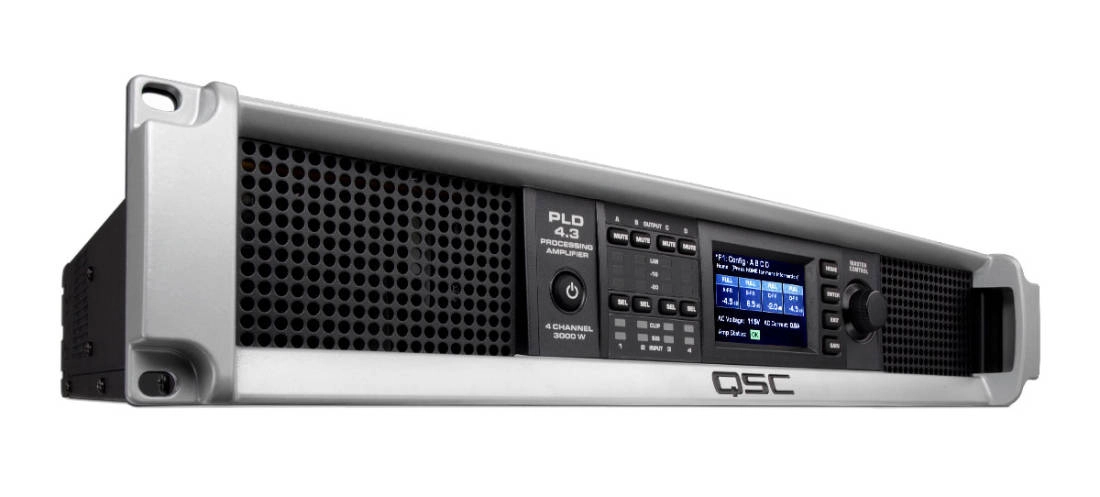

QSC PLD4.3 4-Channel Amp with Display - 625W 8 Ohms

Departments > Pro Audio & Recording > Power Amps & Crossovers > Outboard - Power Amplifiers > QSC > PLD4.3 4-Channel Amp with Display - 625W 8 Ohms
Add to Wish List
SKU: # 493317
Model: #

PLD4.3

Your Price: $2,025.00 CDN

Online

In-Store

With four flexible channels of up to 1400 watts each, lightweight PowerLight universal power supply, DSP on-board for each channel, and all the right connectors, the PLD4.3 is ideal for production and live sound applications.

Features
• Flexible Amplifier Summing Technology (FAST) drives most any loudspeaker system or configuration by distributing total amplifier power across one, two, three, or all four channels.

• Four channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors.

• Powerful Intrinsic Correction processing maximizes the sonic performance of QSC loudspeakers.

• 20 factory preset configurations that can be modified and stored in the 50 user presets.

• PowerLight universal switch mode power supply with PFC for highest efficiency, improved audio performance, and low weight.

• Four Input XLR connectors and six NL4 output connectors.

• Integrated front panel with channel Select and Mute buttons, input and output LED metering, 400240 LCD, intuitive navigation buttons, LED power button and indicator, and cast aluminum handles.

• Preset Wizard simplifies amplifier configuration, providing selection from a list of the top selling passive loudspeakers.

Specifications:

• Typical Distortion: 0.010.06%
• Maximum Distortion: 1.0%
• Frequency response: 20 Hz - 15 kHz +/- 0.2 dB
20 Hz - 20 kHz +0.2 dB / -0.7 dB
• Noise: Unweighted Output Unmuted, -101 dB
Weighted Output Muted, -109 dB
• Gain (1.2V setting): 38.4 dB
• Damping factor: >150
• Input impedance: >10k, balanced or unbalanced
• Maximum input level: 3.9V setting, 12.28V (+24 dBu)
1.2V setting, 3.88V (+14 dBu)
• Input connectors: Female XLR
• Output connectors: NL4
• Amplifier and load protection: Short circuit, open circuit, thermal, RF protection. On/Off muting, DC fault shutdown, active inrush limiting, input current limiting
• AC Power Input: Universal Power Supply 100 - 240 VAC, 50 - 60 Hz
