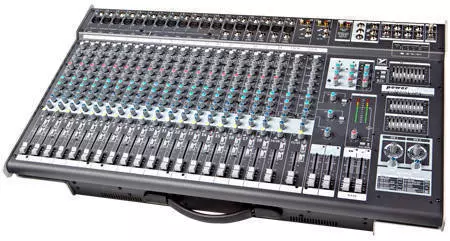

Yorkville Sound PowerMax 22-Channel 3200-Watt Powered Console
Additional Photos:
Channel features include mid-frequency sweep controls, switchable hi-pass filtering, two monitor sends, aux send, two effects sends, mute and solo switching with AFL/PFL select. Main section features include stereo graphic EQ for mains, two monitor graphic EQs, two integrated digital effects processors and a full array of patching facilities.
The PowerMAX PM22-2 includes eighteen mono mic/line balanced channel inputs and two stereo line level channels. Mono channels one to twelve feature Yorkville's group-defeatable Channel Overload Protection circuit.
Features
• 4 x 800 watt Integrated Amplifiers
• 2 x 24bit Internal Stereo Multi-Effect Processors
• 2 x Pre-fade Auxiliary Sends (Monitors)
• 3 x Post-fade Auxiliary Sends (Effects and Aux)
• Stereo 9-band Graphic EQ (Mains)
• 2 x 9-band Mono Graphic EQ's (Monitors)
• 3-band Channel EQ's with Mid Sweep (Mic Channels)
• 4-band EQ's (Stereo Channels)
• Solo AFL/PFL & Mutes on All Input Channels
• Switchable 80Hz Hi-pass Filter on All Mic Input Channels
• Defeatable Channel Overload Protection (C.O.P.)
• Selectable Speaker Processor Output (50/80Hz Boost)
• Top Mounted Output Patch Bay
• Global 48V Phantom Power

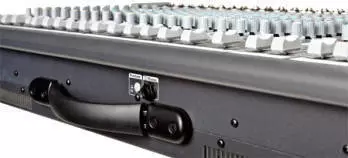

• Integrated Carry Handle
• Optional BAG-9 Gigbag and GNL600 Gooseneck lamp
Specifications:
• Number of Channels: 22
• Channel Inserts: channels 7 to 12
• Mono Channel EQ(ch.1 to 12): High, Mid, Mid Sweep, Low
• Stereo Channel EQ (ch.13 to 16): High, High Mid, Low Mid, Low
• Channel Effects: All Channels
• Monitors Effects: Yes
• Balance Controls: channels 13 to 16
• Pan Controls: channels 1 to 12
• Channel Overload Protection: channels 1 to 12
• XLR (bal) Inputs - Channel 1: 12
• 1/4" Inputs - Channels 1: 16
• RCA (unbal) Inputs: 2 Stereo Sets
• Solo Switches: All Channels + Mon1, Mon2 & EFX Returns
• Mute Switches: All Channels
• Hi-Pass Switches: Channels 1 to 12
• Activity/Solo LED: All Channels
• Clip /Mute LED: All Channels
• Phantom Power: 48V + LED indicator
• VU Meter: 2 x 12 LEDs with Floating Peak
• Headphone: Level, AFL/PFL Select, 1/4 inch Stereo jack
• Internal Effects: 2 x 24 Bit stereo, 16 Effects with Parameter Pot
• Auxiliary Send: 1 TRS
• Effects Sends: 2 (1 Internal , 1 Internal/External)
• Effects Returns: 2 stereo pairs on 1/4" inputs
• Effects Return to Main Level Control: Yes
• Effects Return to Monitor Level Control: Yes
• Reverb/Effects Footswitch: on/off
• Record Outputs: Stereo L&R RCA
• Max Gain to Line Out to Mic Input(dB): 72
• Max Gain to Line Out to Line Input(dB): 56
• Master Stereo EQ: 9 Band +/-12dB 63Hz to 16kHz
• Monitor EQ: 2 x 9 Band +/-12dB 63Hz to 16kHz
• Main Outputs: Line Level 1/4 inch TRS
• Main Amp Inputs: Line Level Amp A & B 1/4 inch TRS
• Monitor Outputs: Line Level Mon 1/2, 1/4 inch TRS
• Monitor Amp Inputs: Line Level Amp C&D, 1/4 inch TRS
• Speaker Outputs: 1/4" x 2 + Speakon-4/each amplifier
• Signal to Noise Ratio (dB): greater than 100
• Frequency Response all EQ Flat+/-2dB: 20Hz to 20kHz
• Input Referred Noise to line out @ 150 Ohms (dBv): 117
• Mixer THD (Main out w/ -10dB input): less than 0.03%
• Power Output @ 8 Ohms, each amplifier: 600 Watts Cont.
• Power Output @ 4 Ohms, each amplifier: 800 Watts Cont.
• Total Power Output @ 8 Ohms: 2,400 Watts Cont.
• Total Power Output @ 4 Ohms: 3,200 Watts Cont.•
• THD @ 1kHz (dB): 0.1%
• THD @ 20Hz-20kHz (dB): 0.5%
• Hum and Noise un / Aweight (dB): 103
• Typical crosstalk @ 1 kHz (dB): less than -60
• Input Impedance Bal/Unbal (Ohms): 22,000 / 12,000
• Input Sesitivity (Vrms Sine): 1.4 V
• CMRR @ 60Hz (min/typ): 54dB/66dB
• Max Votage Gain (dB): 32
• Power Consumption (typ/max): 660 VA/1800 VA
• Amplifier Protection: Thermal, Load & DC
• Cooling: 4x Variable Speed DC Fan
• Transformer Type: Toroidal
• Finish: Scratch Resistant Vinyl-Coated Aluminum
• Console Lamp Connector: 12V DC BNC
• Other Features: Main Amp/Mon Amp Configuration Switch
• Dimensions (DWH, inches): 19 x 31.3 x 5.2
• Dimensions (DWH, cm): 48.3 x 79.5 x 13.2
• Weight (lbs/kg): 54.5/24.8
