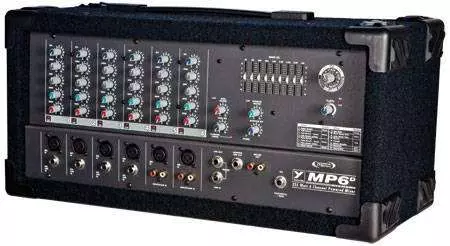

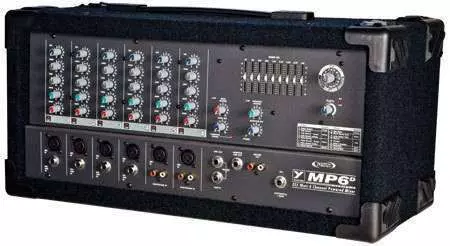

Yorkville Sound Micromix 6-Channel, 325-WATT Powered Mixer
Additional Photos:
You can even patch the MP6D2's Main line-level output to another PA mixer or power amp for a bigger main system, then patch its Monitor output into its Line In jack so that the built-in 365-Watt amp can now power your monitor speakers. Keeping things simple is important, but it can also include versatility and the MP6D covers both bases superbly.
Features & Specifications:
Number of Channels - 6
Channel EQ- Low & High
Channel Effects Sends - All Channels, post-fade, post-EQ
Inputs - XLR (bal)Ch. 1-6, 1/4" Ch.1-4, RCA Ch. 5&6
Clip LED - All Channels
Phantom Power - 24 V + LED indicator
Internal Effects - Digital 24 Bit with 16 Effects
Effects Footswitch/Send jack - 1/4"
Record Outputs - RCA L/R Pair mixed to mono
Max Gain to Line Out - Mic Input (dB)+55
Max Gain to Line Out - Line Input (dB)+40
Master EQ - Mono 9 Band 63 Hz-16,000 Hz
Main Line Level Output - 1/4 inch (TRS)
Main Amp Inputs (Line Level)1x 1/4 inch (TRS)
Monitor Outputs (Line Level)1x 1/4 inch (TRS)
Speaker Outputs - dual 1/4" Jacks in parallel
Mixer Signal-to-Noise Ratio (dB) - 100
Mixer Frequency Response (allEQ Flat,+/-2dB)- 20Hz-20kHz
Mixer Input Referred Noise to line out, @ 150 Ohms (dBv) - -117
Mixer THD (Main out w/ -10dB input) - < 0.05%
Power Output @ 8 Ohms (Watts @ 0%1"THD, 1kHz) - 208
Power Output @ 4 Ohms (Watts) - 325
THD @ 1kHz - less than 0.05%
THD @ 20Hz-20kHz - less than 0.1%
Hum and Noise (un/Aweight, dB) - -96
Typical crosstalk @ 1 kHz (dB) - <-60
Input Impedance - Bal/Unbal (Ohms) - 2200/10K
Input Sesitivity (Vrms Sine) - 1.4
CMRR @ 60Hz (min/typ, dB) - 54/66
Max Votage Gain (dB) - 27
Power Consumption (typ/max) - 270 VA/550 VA
Protection - Thermal, Load & DC
Cooling- Passive Heat Sink
Transformer Type - Toroidal
Finish- Black Carpet, Scratch Resistant Front Panel
Chassis Construction - Heavy Gauge Metal
Cabinet - Plywood
Dimensions (DWH, inches) - 10 x 21 x 9.25
Dimensions (DWH, cm) - 25.4 x 53.3 x 23.5
Weight (lbs/kg) - 27 / 12
Q & A
Reviews
Rental rates
This product is normally available for rental. Please contact your preferred location for further information.
1 Day from $9.00
1 Week $18.00
1 Month $36.00
