Key-Largo Keyboard Mixer
Additional Photos:
Product Videos :
YouTube Video
YouTube Video
The Key-Largo is a unique device that combines a multi-channel keyboard mixer with the performance attributes of real-time footswitch control and a stereo direct box!
• Three analogue stereo inputs for keyboards
• Digital USB connection for laptop soft-synth
• Sustain footswitch and effects loop with footswitch
• Balanced DI out for the PA and monitor out for stage

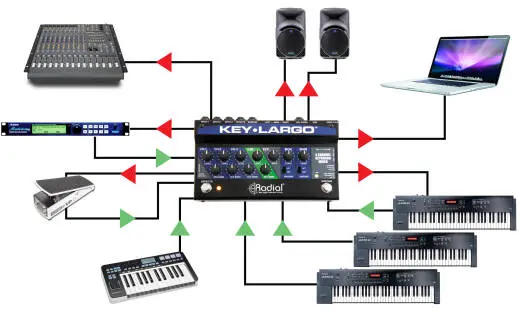

Designed for stage use, the ultra compact design features three dual analog inputs for standard performance keyboards along with a USB interface to connect a laptop when using a soft-synth. Each stereo input is equipped with an individual level control for quick onstage adjustments along with an effects loop to interface and external multi-effects device. The effects loop can then be turned on or off using the built-in footswitch to activate an echo or reverb when soloing. The effects bus is stereo but may be summed mono when using guitar style pedals. To add even more fun to the performance, a built-in sustain footswitch lets you connect the Key-Largo to your master keyboard or digital piano using a standard guitar cable, eliminating the need to bring a separate sustain footswitch to the gig!

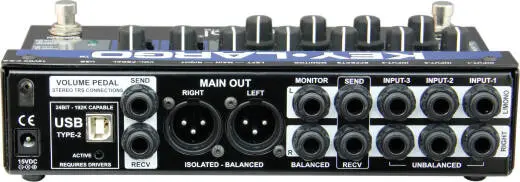

As with all Radial products, the Key-Largo is made tough and sounds great! It features solid 14-gauge steel construction with steel shafted potentiometers and switches to handle the abuse of being on the road. Inside, a switch-mode power supply elevates the rail voltage for extra headroom to handle the most dynamic digital keyboards and fattest analog synths. Separate monitor outputs allow the artist to adjust the level on-stage while the balanced XLR main outputs provide a separate DI connection to the PA system. The main outputs are transformer isolated to eliminate hum and buzz caused by ground loops and all outputs are equipped with a ground lift switch to further abate noise.
With both USB and MIDI connectivity, the Key-Largo easily integrates with all types of keyboard setups. And the high quality 24bit/96kHz converters make it ideal for recording tracks when on the road!
The Radial Key-Largo... A large wonder in a small box!
• Three analogue stereo inputs for keyboards
• Digital USB connection for laptop soft-synth
• Sustain footswitch and effects loop with footswitch
• Balanced DI out for the PA and monitor out for stage
Designed for stage use, the ultra compact design features three dual analog inputs for standard performance keyboards along with a USB interface to connect a laptop when using a soft-synth. Each stereo input is equipped with an individual level control for quick onstage adjustments along with an effects loop to interface and external multi-effects device. The effects loop can then be turned on or off using the built-in footswitch to activate an echo or reverb when soloing. The effects bus is stereo but may be summed mono when using guitar style pedals. To add even more fun to the performance, a built-in sustain footswitch lets you connect the Key-Largo to your master keyboard or digital piano using a standard guitar cable, eliminating the need to bring a separate sustain footswitch to the gig!
As with all Radial products, the Key-Largo is made tough and sounds great! It features solid 14-gauge steel construction with steel shafted potentiometers and switches to handle the abuse of being on the road. Inside, a switch-mode power supply elevates the rail voltage for extra headroom to handle the most dynamic digital keyboards and fattest analog synths. Separate monitor outputs allow the artist to adjust the level on-stage while the balanced XLR main outputs provide a separate DI connection to the PA system. The main outputs are transformer isolated to eliminate hum and buzz caused by ground loops and all outputs are equipped with a ground lift switch to further abate noise.
With both USB and MIDI connectivity, the Key-Largo easily integrates with all types of keyboard setups. And the high quality 24bit/96kHz converters make it ideal for recording tracks when on the road!
The Radial Key-Largo... A large wonder in a small box!
Media
Youtube video product demo
Youtube video product demo
Description: Keyboardist extraordinaire, Jordan Rudess, demos his new Key Largo.
Q & A
There are currently no questions for this product.
Reviews
18.227.48.131
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
The heart of my keyboard rig. 9 of 10 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Winnipeg (Pembina), Manitoba
This is really an amazing piece of gear - from its build quality to its function to its compact form factor, it has pretty much everything a working keyboardist needs to control their rig.
Not only does it handle up to three analog boards (plus has USB and Midi for controllers and softsynths), it has an effects loop, can be used as an audio interface for recording, has separate main and monitor outs, and it even has a sustain pedal... plus, it's built like a tank right here in Canada.
If you run multiple keyboards in your rig, you owe it to yourself to check this out!
Posted by Joe on Sep 25, 2019
