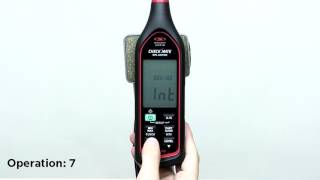

Galaxy Audio CM-170 Type II SPL Meter w/USB Cable

The CM-170 is the latest in the line of Galaxy Audio SPL Meters. The CM-170 is similar to the CM-160 model, except that it has data logging with clock feature, fast/slow time weighting, and electronic calibration. The CM-170 comes complete with a carry case, windscreen, USB cable, and software for computer.

Today, there is a need to know just how loud your surroundings really are. The CM-170 is an affordable IEC 61672-1 Type II SPL meter that competes with some of the best SPL meters on the market. The CHECK MATES are inexpensive tools that everybody working in loud environments should own, including working musicians, DJs, police departments, and sound contractors. The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure SPL in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound.

Features:

• Freq. Range 20 Hz - 8 kHz
• Freq. Weighting A/C
• Fast/Slow Time Weighting
• Data Logging with Clock
• USB Mini Interface
• Includes Software and USB Cable for Charging
• IEC 61672-1 Type II
• Range 30 - 130 dB
• Accuracy 1.4 dB
• Electronic Calibration

Specifications:

Standard: IEC 61672-1 Class 2, ANSI S1.4 Type 2
Microphone: 1/2" Electret condenser microphone
Accuracy (under reference conditions 94dB @1kHz): +/-1.4 dB

Level Range:
Lo: 30 - 90dB
Med: 50 - 110dB
Hi: 70 - 130dB
Auto: 30 - 130dB

Frequency Range: 20Hz ~ 8kHz
Frequency Weighting: A/C
Time Weighting: Fast, Slow
Auxiliary Outputs: AC Signal Output, 1 Vrms at FS (Full Scale)
(FS: Means the upper limit of each level range.)
DC Output: 10mV / dB
Dynamic Range: 60 dB

Display: Liquid Crystal Display
Digital Display
Digits: 4
Resolution: 2dB
Update: 0.5 sec
Analog Display
Bar Graph: 30 Segments
Resolution: 2dB
Update: 50 mS

Auto Power Off: About 30 minutes
Alarm Function: Over, Under
Data Logging Capacity: 64,000 Records
Power Supplied By: 4 AAA, NEDA 24A, IEC LR03 batteries (not included)
Battery Life: Approximately 24 Hours (Alkaline)
Operation Temperature: 0 C to 40 C (32 F to 104 F) (< 90% R.H.)
Storage Temperature: -10 C ~ 60 C (14 F to 140 F)

Dimensions (HxWxD): 10.4" x 2.5" x 1.1" (264 x 63 x 29 mm)
Weight (with batteries): 8.64 oz (245 g)
