Orion32 HD 64-Channel HDX and USB 3.0 Audio Interface

SKU: # 496390   |   Model: # ORION 32 HD   |    Product Reviews0 Reviews  Write a Review

Orion32 HD 64-Channel HDX and USB 3.0 Audio Interface

Additional Photos:

Orion32 HD 64-Channel HDX and USB 3.0 Audio Interface
Orion32 HD 64-Channel HDX and USB 3.0 Audio Interface
Orion32 HD 64-Channel HDX and USB 3.0 Audio Interface

Product Videos :

YouTube Video Orion32 HD 64 Channel HDX and USB 3.0 Audio Interface
YouTube Video Mick Guzauski mixing with Orion32 HD & real-time FPGA FX
 This product is no longer available.
ORION32 HD INCLUDES A FINE SELECTION OF FREE HARDWARE-BASED VINTAGE AFX
The proprietary FPGA is the heart and soul of all Antelope Audio interfaces and is included inside Orion 32 HD, allowing you to use Antelope's integrated and ever-growing library of hardware-based vintage EQs, compressors and of course AuraVerb.

Orion32 HD comes with a growing arsenal of premium effects:
• EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ 1A, VMEQ-5, LANG PEQ2, VEQ-55A, UK-69, NEU-PEV, INTEGRATED EQ
• VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
• AURAVERB: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for "Smooth and Clear" Sound

FORGET ABOUT LATENCY
Stream 64-channels of audio via HDX & USB 3.0. Orion32 HD is the newest addition to the Orion family. Compatible with any DAW on the market via HDX port or USB 3.0, this new Pro Tools HD and Native interface offers everything Antelope Audio stands for. Zero latency Monitoring, I/O streaming of 64-channel 192 kHz audio, Antelope's industry-leading clocking, and pristine AD/DA conversion. Orion32 HD's analog I/O is handled by 8 DB25 connectors, accompanied by MADI, ADAT and S/PDIF connectivity.

Orion32 HD features a fine selection of vintage FX powered by Antelope Audio's innovative Field Programmable Gate Array (FPGA) technology bringing modeling of legendary vintage gear to a whole new level.

FAST AND FURIOUS
Smooth mixing and mastering-grade monitoring. Like its predecessors, Orion32 HD is a versatile audio interface, which works like a charm with any DAW on the market. It enables you not only to stream an astounding 64 channels of audio when tracking, but also allows for multiple monitor mixes. When monitoring, the sound is pleasing, combining transparent detail in a very natural way, like all things Antelope. Independent software mixers, integrated hardware-based FPGA vintage effects, it's all there, with more connectivity options than ever.

CLOCKING LIKE WE LOVE IT
Perfect sound through flawless clocking. The unbeatable clocking accuracy of Orion32 HD is provided by Antelope's renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. Antelope's clocking is known the world over, with a 20 year reputation for excellence in both stability and sonic improvement. Transients will shine like never before, you'll achieve a stereo image with incomparable depth and detail.

And that sparse and crystal clear high-end...Yes, we're talking sonic perfection, just like in the game-changing OCX HD and Trinity master clocks.

FPGA POWERED
The proprietary FPGA is the heart and soul of all Antelope Audio interfaces. The exquisite collections of Vintage EQs include authentic models of Lang PEQ-1, BAE 1073, 1084, 1023, UK-69 and many other classic British and German vintage units. Vintage Compressors begin with the life-like model of the FET76 and many more are soon to be available, FREE to all new and registered users of Antelope's growing line of world class interfaces.

INTUITIVE SOFTWARE CONTROL
Your wildest routing dreams come true with the Orion 32 HD desktop app. Orion32 HD is fully controllable via its intuitive OS X and Windows compatible desktop app. Its colour-coded routing matrix now features an alternative view, making routing a piece of cake. The interface can be also accessed from multiple computers on the same network. With freely movable and resizable panels you can maximize the most out of your computer monitor space, perfect when working on huge projects, scoring to picture and on multiple screen set ups.

Key Product Features:
• Free Integrated FPGA-based AFX modeling legendary vintage gear
• Pro Tools HD and Native compatible interface
• Simultaneous streaming of 24-bit, 192 kHz audio via HDX or USB 3.0
• Flawless 4th Generation 64-bit clocking and unique analog circuitry
• Additional connectivity on MADI, ADAT, S/PDIF, 8x DB25
• Mastering Grade Monitor outs
• Housed in an efficient "green" design with no fans inside
• Network Control from multiple PCs
• OS X and Windows compatible

Specifications:
• Analog Inputs: 4 x DB 25 (32 channels total), +24 dBu max
• Analog Outputs: 4 x DB 25 (32 channels total), +24 dBu max, 2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max
• D/A Monitor Converter: Dynamic Range: 129 dB, THD + N: -108 dB
• A/D Converter: Dynamic Range: 120 dB, THD + N: -110 dB
• D/A Converters: Dynamic Range: 120 dB, THD + N: -107 dB
• Digital Inputs: 1 x Fiber Optic MADI (up to 64 channels), 2 x ADAT (up to 16 channels), 1 x S/PDIF
• Digital Outputs: 1 x Fiber Optic MADI (up to 64 channels), 2 x ADAT (up to 16 channels), 1 x S/PDIF
• USB I/O: USB 3.0 - 64 channels I/O up to 192kHz, USB 3.0 Type B connector
• HDX: 2 x mini HDX connectors for direct Pro Tools connection, 32 Channels I/O each ( total of 64 channels)
• Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz
• Atomic Clock Input: 1 x 10M Input @ 75 Ohms 1Vpp on BNC
• Word Clock Outputs: 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz
• Clocking System: 4th Generation Acoustically Focused Clocking, 64-bit DDS, Oven Controlled Crystal Oscillator
• Clock Stability: +/-0.02 ppm, oven controlled at 64.5 degrees C / 148.1 degrees F
• Clock Aging: Less than 1 ppm per year
• Clock Calibration: +/-0.001 ppm
• Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• Operating Temperature: 0-50 C, 32-122 F
• Weight: 3.6kg / 8.0 lb (approx)
• Dimensions (Approx): Width: 483 mm / 19 in, Height: 44 mm / 1.75 in, Depth: 270mm / 10.63 in
• AC Universal input: ~95-245 V
• Power Consumption: 30 Watts Max
• In the Box: Orion32 HD Portable Audio interface, Owner's Manual, Warranty Card, 1 USB 3.0 Cable, AC Power Cord

Media

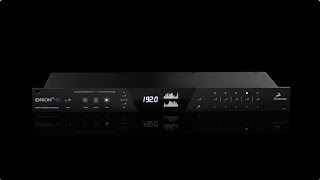

Orion32 HD 64 Channel HDX and USB 3.0 Audio InterfaceWatch Video
Youtube video product demo

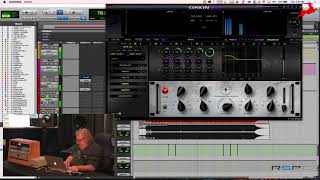

Mick Guzauski mixing with Orion32 HD & real-time FPGA FXWatch Video
Youtube video product demo

Q & A


There are currently no questions for this product.

Reviews


There are currently no reviews for this product. Be the first to write one!
