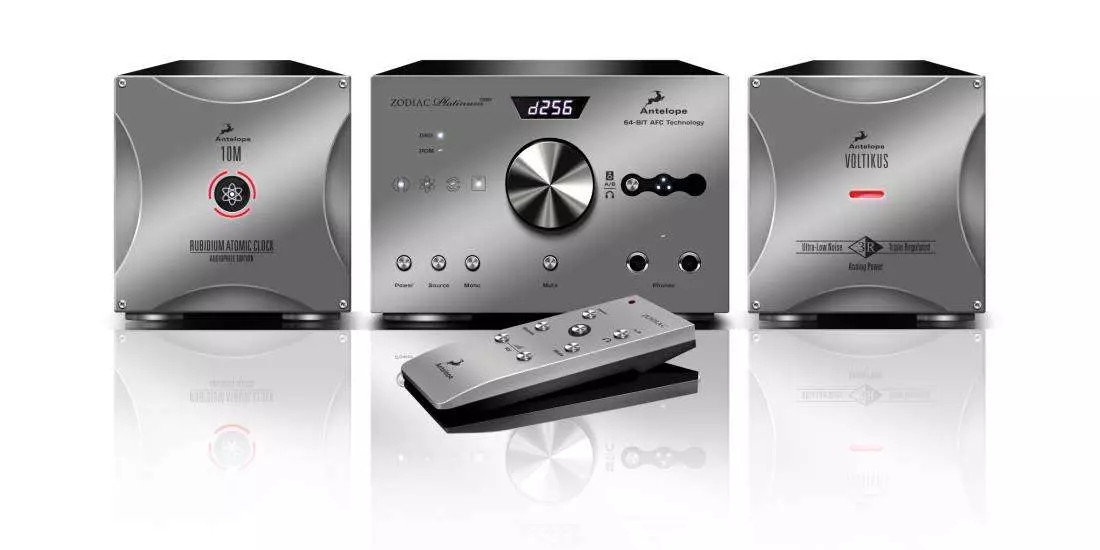

Zodiac Platinum DSD DAC + Voltikus PSU + Audiophile 10M Bundle
Additional Photos:
Product Videos :
Antelope Audio's new Audiophile 10M brings the accuracy of a reference generator to the home environment.The Audiophile 10M combined with the Zodiac Platinum DSD DAC provides supreme quality audio for the appreciation of music without compromise.
PRO SOUND AT HOME
The Zodiac Platinum DSD DAC supports up to DSD128 (Double-DSD) and 384kHz, 24-bit streaming to a custom-designed, ultra-low jitter USB connection, as well as AES/EBU, S/PDIF, and TOSLINK PCM support. The DSD features include a unique 256X up-sampling mode where DSD64 and DSD128 are up-sampled to DSD256, thereby releasing the true potential of DSD delivering new standards in accuracy, transparency, imaging, and dynamics. The unit compliments the high-resolution PCM inputs with switchable 64-bit precision 8x linear phase upsampling using a dedicated FPGA and Independent dual DACs per channel to eliminate crosstalk and improve dynamic range and linearity.
Voltikus is a sleek heavy-duty Power Supply Unit (PSU) designed to perfectly match your Zodiac DAC. Carefully tailored to deliver uncompromising power, Voltikus helps Zodiac achieve the punch and sonic richness of deep lows, a full range of mids, and tightly defined highs. This degree of performance is accomplished by incorporating a hefty, custom-wound, electrostatic-shielded toroidal transformer followed by a unique concept of three cascaded power regulators.
To get ultimate sonic performance from your system, you need a clock with absolute accuracy and virtually zero jitter. The new Audiophile 10M Atomic Clock is a 10MHz rubidium atomic reference generator that, paired with Antelopes renowned clocking algorithm, delivers astonishing audio quality. 100,000 times more stable than a typical crystal oscillator, the hyperfine energy levels of the non-radioactive rubidium core enable high-precision timing to 0.03 parts per billion, which equates to a loss of just one second per 1000 years!
All aspects of your sound will benefit staging and imaging will become pin-sharp, and spectral separation and depth will gain clarity, detail, and range. The result will be the analogue immersion, dynamics, and detail that you always wished for.
SPECIFICATIONS
Zodiac Platinum DSD DAC/preamp
Dynamic range: 129dB
Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, (352.8kHz and 384kHz through USB only), 64X DSD, 128X DSD
Inputs: One BNC; one AES/EBU XLR; two SPDIF RCA; two RCA analog; two 1/4" TRS analog; two optical TosLink
Outputs: Two analog XLR; one AES/EBU; two SPDIF; two
analog RCA; two headphone
THD: 0.0004%
USB: 2.0 Hi-Speed, Type B
Dimensions: 6.5" x 4.4" x 7.5"
Weight: 4.4 lbs.
Voltkus Power Supply for Zodiac DAC
Input power: 120V240V; 50Hz60Hz
Output Power: 18V DC
Dimensions: 4.4" x 4.2"x 6.6"
Weight: 5.5 Pounds
10M Atomic Clock
Clock frequency: 10MHz
Timing Accuracy: 0.03ppb
Connections: Umbilical to Connect with DAC, Grounded AC
Dimensions: 4" x 4.4" x 6.6"
