BOSS

Journey to new dimensions of time and space with the RV-500, the most powerful and versatile reverb processor BOSS has ever produced. This multifaceted creation machine features class-defying 32-bit AD/DA along with 32-bit/96 kHz floating point processing and immense programmability, putting pro-level studio reverb and more at your feet.

Twelve modes and 21 newly developed reverb algorithms deliver a huge range of textures, from complementary ambience to deep, immersive sonic atmospheres. And thanks to the RV-500s high-octane DSP, you can access a full-featured digital delay along with every reverb patch, and even run two reverb patches at once! Adding in MIDI I/O, support for external footswitch/expression control, and USB for connection to the free RV-500 Editor/Librarian software, the RV-500 is simply the most advanced reverb pedal available, bar none.

FEATURES

• Studio-level sound with first-in-class 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate


• 12 modes with 21 reverb types, all with deep editing parameters


• Includes a wide range of reverb types from standard to advanced, plus Roland classics such as the SRV-2000 Reverb and RE-201 Space Echo


• A/B Simul mode allows you to use two reverb patches at once


• Selectable carryover function allows reverb tails to continue with patch change or effect bypass


• Powerful DSP provides independent digital delay with modulation along with each reverb patch


• Graphic LCD and intensive real-time control options


• 297 onboard patch memories and hands-on controls


• Selectable buffered-bypass or true-bypass operation


• MIDI I/O for interfacing with MIDI control devices


• USB-MIDI for connecting to the RV-500 Editor/Librarian or a DAW (to be available in early July 2017)


• Runs on four AA-size batteries or PSA-series AC adapter

SPECIFICATIONS

Sampling Frequency: 96 kHz

AD/DA Conversion: 32 bits

Processing: 32-bit floating point

Modes: 12 modes: ROOM, HALL, PLATE, SPRING, SHIMMER, FAST, DECAY, EARLY REFLECTION, NON-LINEAR, SFX, DUAL, SRV, SPACE ECHO

Memory: 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])

Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +8 dBu
Input Impedance: INPUT A/MONO, B: 1 M ohm

Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +8 dBu
Output Impedance: OUTPUT A/MONO, B: 2 k ohms

Recommended Load Impedance: OUTPUT A/MONO, B: 20 k ohms or greater

Bypass: Buffered bypass or True bypass (with relays)

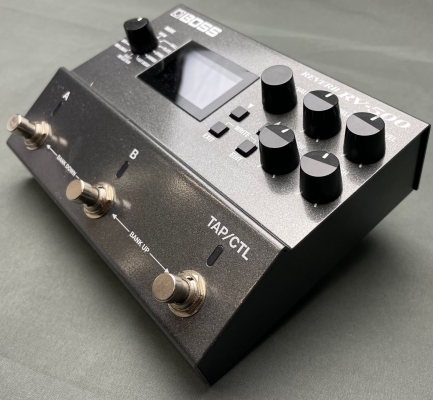

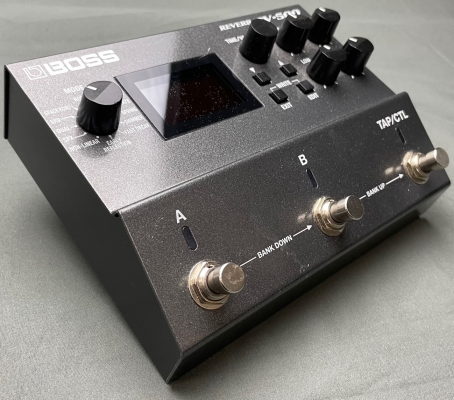

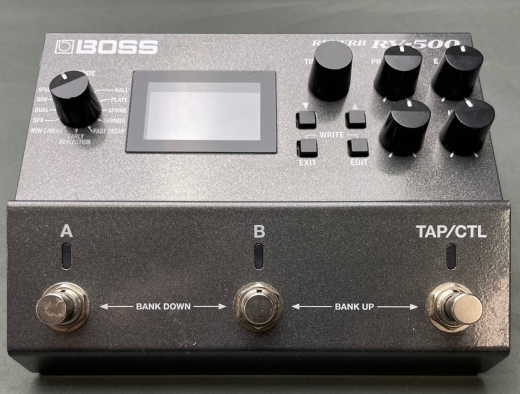

Controls: A switch, B switch, TAP/CTL switch
DOWN button, UP button, EXIT button, EDIT button
MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob

Display: Graphic LCD (128 x 64 dots, backlit LCD)

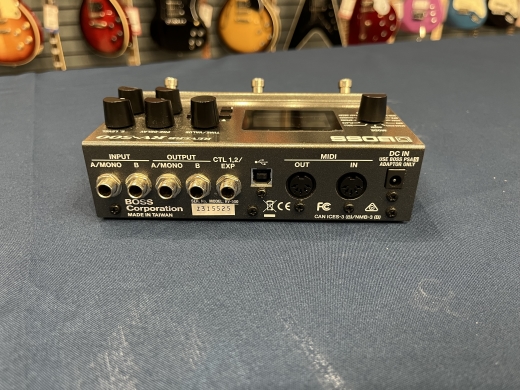

Connectors:
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TSR phone type
USB COMPUTER port: USB type B
MIDI (IN, OUT) connectors
DC IN jack

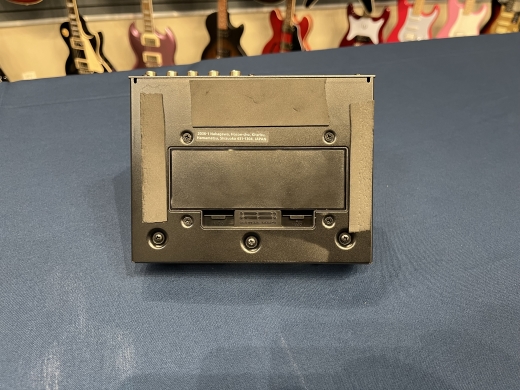

Power Supply: Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
Current Draw: 225 mA
Expected battery life under continuous use: Alkaline: Approx. 4.5 hours
*These figures will vary depending on the actual conditions of use.

Accessories:
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

Options (sold separately):
AC adaptor: PSA-S series
Footswitch: FS-5U, FS-5L
Dual Footswitch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5

SIZE AND WEIGHT

Dimensions (W x D x H): 170 x 138 x 62 mm (6-3/4 x 5-7/16 x
2-1/2 inches)
Weight (including battery): 1.0 kg (2 lbs 4 oz)
