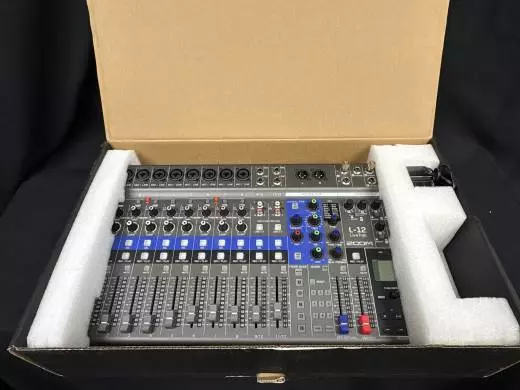

Zoom LiveTrak L-12 12-Channel Digital Mixer / Recorder w/FX - USB
Additional Photos:
Product Videos :
YouTube Video
Great Additions
Description
With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. Its the only digital console that lets you mix your live performance and record up to 12 discrete channels - all while providing five individual custom headphone mixes.
Effortless Live Mixing - LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.
Record Everything, Remix Anywhere - LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.
Five Custom Monitoring Mixes - Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
USB Connectivity for Your DAW - LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required (sold separately).
FEATURES
• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch
Includes:
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide
SPECIFICATIONS
Inputs:
Mono (MIC/LINE): 8 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Stereo (LINE): 2 TS phone/RCA pin (unbalanced) jacks, Maximum input level +10 dBu
Outputs:
MASTER OUT: 1 XLR jack (balanced)
MONITOR OUT: 5
MONITOR OUT A (TRS): TRS phone jacks (balanced)
MONITOR OUT A-E (PHONES): Standard Stereo phone jacks
BUSES
MASTER:1
MONITOR: 5
SEND EFX: 1
CHANNEL STRIP
COMP:
LOW CUT: 75 Hz, 12 dB/OCT
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz-8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
LEVEL METERS
Level segments:12
SEND EFFECTS: 16 types
RECORDER
Maximum simultaneous recording tracks: 14 at 44.1/48 kHz (12 channel + stereo mix); 12 at 96 kHz
Maximum simultaneous playback tracks: 12
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz: Recording: 14 channels; Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0
CARD READER
Class: Mass storage USB 2.0 High Speed
USB HOST
Class: USB 2.0 High Speed
SAMPLING RATE
Sampling rate: 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
96 kHz: -3.0 dB: 20 Hz - 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input
Display: LCD with backlight (128x64 resolution)
Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption: 17W maximum
External dimensions (W x D x H): 445 mm x 282 mm x 70.5 mm / 17.5" x 11.1" x 2.78"
Weight (main unit only): 2.53 kg / 5.58 lbs
Effortless Live Mixing - LiveTrak's 12 discrete channels (eight mono plus two stereo) have a 3-band mid-parametric EQ and 16 built-in send effects. Its eight mono channels also have a dedicated compressor. With all these controls plus its 12-segment LED metering, the L-12 offers just what you need for intuitive mixing.
Record Everything, Remix Anywhere - LiveTrak lets you record 12 discrete tracks up to 24-bit/96 kHz WAV audio to an SD card while simultaneously mixing your live show. Tracks are recorded pre-EQ and effects, so they can be transferred to your favorite DAW for further mixing and editing.
Five Custom Monitoring Mixes - Each of LiveTrak's five monitor outputs provides a unique mix, so every performer can create and save a mix that's tailored to their preferences. Its headphone amplifier delivers volume that stands up in any live environment without the need for a separate headphone monitoring setup.
USB Connectivity for Your DAW - LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*
*Apple Lightning to USB Camera Adapter required (sold separately).
FEATURES
• 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
• 14-track simultaneous recording, 12-track playback
• 14-in/4-out USB audio interface connectivity
• 5 powered headphone outputs, each with a customizable and saveable mix
• Add backing/click tracks from your computer to your live mix and recording
• RCA and TS line inputs
• 48V phantom power (channels 1-4 and 5-8)
• Hi-Z connectivity (channels 1 and 2)
• 26 dB pad (channels 3-8)
• Built-in compression control (Channels 1-8)
• Digital level meters -48 dB to -0 dB
• Master mute button
• Low-cut control
• Stereo panning
• Master and Monitor Outputs A-E
• Scene saving function, up to 9 scenes saved at a time
• 16 built-in delay and reverb effects with adjustable parameters
• Built-in slate mic
• Class-compliant mode (for iOS compatibility)
• SD card input
• Built-in metronome
• Automatic recording starting/stopping capability
• Project protection
• Import/export projects with USB 2.0 host port
• Latency adjustment for A-to-D conversion
• Compatible functions for ZOOM FS01 footswitch
Includes:
- AC adapter (AD-19)
- USB 2.0 cable
- Quick Guide
SPECIFICATIONS
Inputs:
Mono (MIC/LINE): 8 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Stereo (LINE): 2 TS phone/RCA pin (unbalanced) jacks, Maximum input level +10 dBu
Outputs:
MASTER OUT: 1 XLR jack (balanced)
MONITOR OUT: 5
MONITOR OUT A (TRS): TRS phone jacks (balanced)
MONITOR OUT A-E (PHONES): Standard Stereo phone jacks
BUSES
MASTER:1
MONITOR: 5
SEND EFX: 1
CHANNEL STRIP
COMP:
LOW CUT: 75 Hz, 12 dB/OCT
EQ:
HIGH: 10 kHz, 15 dB, shelving
MID: 100 Hz-8 kHz, 15 dB, peaking
LOW: 100 Hz, 15 dB, shelving
LEVEL METERS
Level segments:12
SEND EFFECTS: 16 types
RECORDER
Maximum simultaneous recording tracks: 14 at 44.1/48 kHz (12 channel + stereo mix); 12 at 96 kHz
Maximum simultaneous playback tracks: 12
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV format
Recording media: 16 MB-2 GB SD cards, 4 GB-32 GB SDHC cards, 64 GB-512 GB SDXC cards
AUDIO INTERFACE
44.1/48 kHz: Recording: 14 channels; Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0
CARD READER
Class: Mass storage USB 2.0 High Speed
USB HOST
Class: USB 2.0 High Speed
SAMPLING RATE
Sampling rate: 44.1/48/96 kHz
FREQUENCY CHARACTERISTICS
44.1 kHz: -1.0 dB: 20 Hz - 20 kHz
96 kHz: -3.0 dB: 20 Hz - 40 kHz
EQUIVALENT INPUT NOISE
Actual measurements: -128 dB EIN (IHF-A) with +60 dB/150 Ω input
Display: LCD with backlight (128x64 resolution)
Power supply: ZOOM AD-19 AC adapter (DC12 V/2 A)
Power consumption: 17W maximum
External dimensions (W x D x H): 445 mm x 282 mm x 70.5 mm / 17.5" x 11.1" x 2.78"
Weight (main unit only): 2.53 kg / 5.58 lbs
