SPL

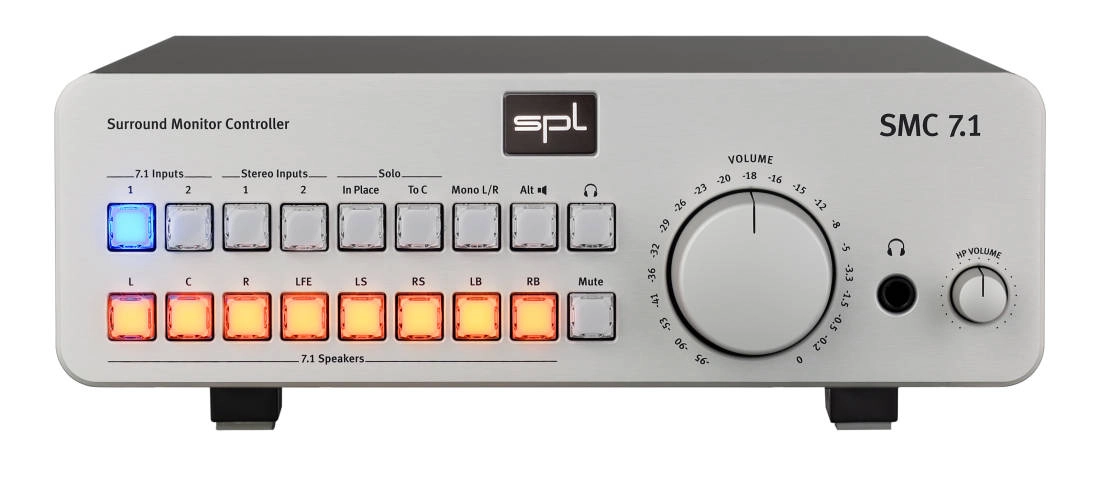

SMC 7.1 Surround Monitor Controller - Silver
Additional Photos:
Features:
• Two Balanced 7.1 Inputs
• Two Balanced Stereo Inputs
• Balanced 7.1 Output
• Balanced Stereo Output with Sub Out
• Extensive Routing Options
• Solo in Place / Solo to Center
• High-Quality Headphone Amplifier
• Dedicated Analog Meter Output
• Internal Power Supply
• Made in Germany
Specifications:
• Inputs: Sub-D-25-Input, Sub-D-25 (TASCAM-Standard)
- Impedance: 20 kOhms
- CMR: -82 dB
- Max. Input level: +22 dB
• XLR-Input: Neutrik XLR, symmetrisch, Pin 2 = (+)
- Impedance: 20 kOhms
- CMR: -82 dB
- Max. Input level: +22 dB
• Outputs: Sub-D-25-Output, Sub-D-25 (TASCAM-Standard)
- Frequency range: 10 Hz to 150 kHz (-3 dB)
- Crosstalk at 1 kHz: -92 dB
- THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
- Noise (A-weighted): -93 dB
- Dynamic range: 115 dB
• XLR-Output: Neutrik XLR, balanced, Pin 2 = (+)
- Frequency range: 10 Hz to 150 kHz (-3 dB)
-Crosstalk at 1 kHz: -92 dB
- THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
- Noise (A-weighted): -93 dB
- Dynamic range: 115 dB
• Headphone Output: 6.35 mm TRS connector
- Pin wiring: Tip = Left, ring = right, sleeve = GND
- Impedance: 22 kOhms
- Frequency range: 10 Hz to 80 kHz (-3 dB)
- Crosstalk at 1 kHz: -70 dB
- THD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load)
- Noise (A-weighted): -93 dB
- Dynamic range: 113 dB
• Internal operating voltages:
- Analog: +/- 18 V Power supply
- Mains voltage (switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
- Fuses: 230 V = T 500 mA; 115 V = T 1 A
- Power consumption: max 25 VA
• Dimensions (WxHxD): 10.95 x 4.6 x 13.1 in (278 x 103 x 333 mm)
• Weight: 9.04 lbs (4.1 kg), unit only
