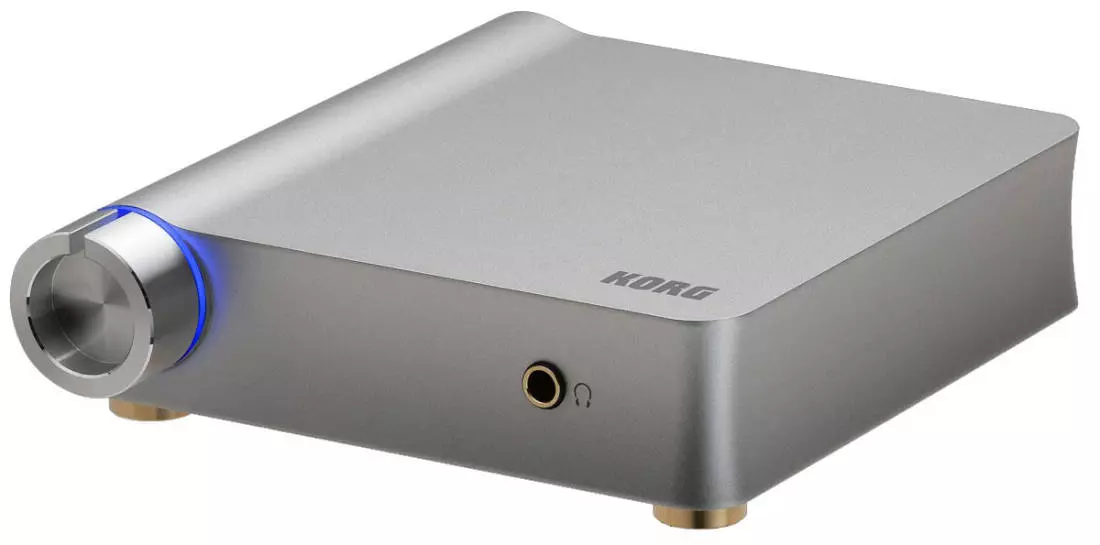

Korg DS-DAC-20R - DSD 1-Bit USB-Digital to Analog Converter
Additional Photos:
Simply use a single USB cable to connect the DS-DAC-10R to your PC. The DS-DAC-10R supports the 5.6 MHz and 2.8 MHz DSD format - for playback and recording - as well as PCM formats up to 192 kHz/24-bit. Now you no longer have to wait for your favourite music as a high-resolution release; create DSD-recordings of your own sources and listen to great sound - anywhere, anytime you like.
Phono inputs provide a direct connection to your record player
Vinyl records have soared in popularity over recent years. Certain audiophiles and enthusiasts prefer vinyl sources for the pure enjoyment of music, and cite a warmth of tone lacking in digital sound sources. The KORG DS-DAC-10R allows these retro-audio fans to manage their record collection as music data and enjoy it more easily. Phono input jacks allow the DS-DAC-10R to connect directly to your record player - there is even a grounding terminal. Your records can be quickly turned via DSD into high-resolution data files with their quality unimpaired, allowing you to use AudioGate to easily manage your music library. The input jacks also support LINE level signals - such as from a cassette deck - making this the ideal system for archiving your irreplaceable collection.
DSD native playback of 2.8224 MHz and 5.6448 MHz DSD files
KORG was among the first audio companies to focus on the high sound quality benefits of DSD, using DSD as the recording format for the highly acclaimed MR series of studio and field recorders. Now that major music distribution sites such as Blue Coast Records and Channel Classic Records have started distributing data in the DSD format, and major audio manufacturers have also started to release USB DAC units, the DSD format has become acknowledged by audio fans as a synonym for the utmost in high-quality playback. The quality of this DSD data is fully realized by the "DSD native playback of DSD data" offered via these USB DAC units, the DS-DAC series.
These units support playback not only of 2.8224 MHz DSD data but also the still higher-resolution of 5.6448 MHz, which is even more faithful to the original source.
SPECIFICATIONS
Audio Interface
Number of Channels: 2
Input Format (USB):
DSD: 2.8224MHz/5.6448MHz, 1bit
PCM: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz, 16bit/24bit
Host Interface: USB2.0 (High Speed)
Audio Driver: ASIO 2.1, WDM, Core Audio
General
Indicator: Power, Sample Rate, Rec Status
Power: USB bus power (5V, Max: 500mA)
Power Consumption: Max 2.5W
Dimensions (W x D x H): 155mm x 185mm x 49mm/6.10" x 7.29" x 1.93" (including protrusions)
Weight: 1.2kg/ 2.65lbs.
Main Standards
Frequency Response Characteristics:
10 Hz 20 kHz 1dB (fs=44.1 kHz/48 kHz)
10 Hz 40 kHz 1dB
S/N: 105dB (TYP.) 20 Hz 20 kHz, IHF-A
THD+N: 0.005% (TYP.) 20 Hz 20 kHz

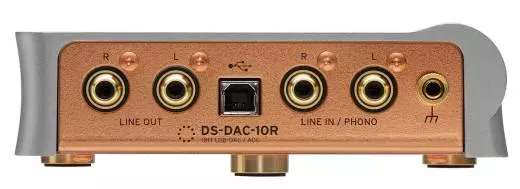

LINE OUT L/R
Connector: RCA pin Jack
Load Impedance: More than 10kΩ
Nominal Level: -6dBV

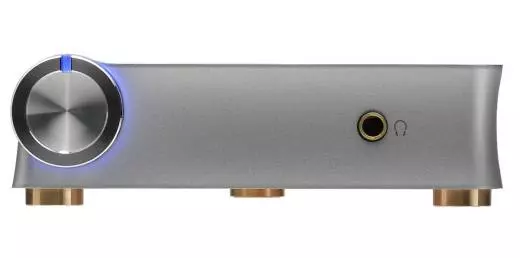

PHONES
Connector: φ6.3mm stereo phone jack
Load Impedance: More than 16Ω
Maximum Level: 70mW + 70mW @32Ω
LINE IN/PHONO L/R
Connector: RCA pin Jack
Load Impedance:
• LINE IN: 47KΩ
• PHONO: 50KΩ
Nominal Level:
• LINE IN: -6dBV
• PHONO: 5mVrms
Maximum Level:
• LINE IN: +6dBV
• PHONO: 100mVrms
USB (Device)
Connector: Type B
Included items: USB Cable
