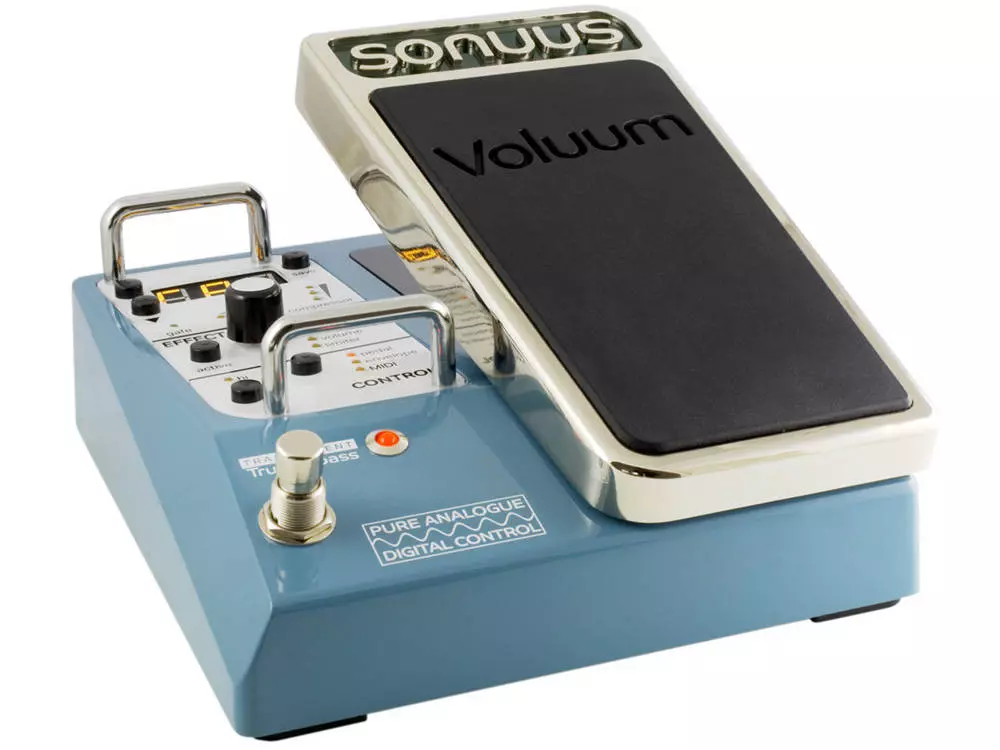

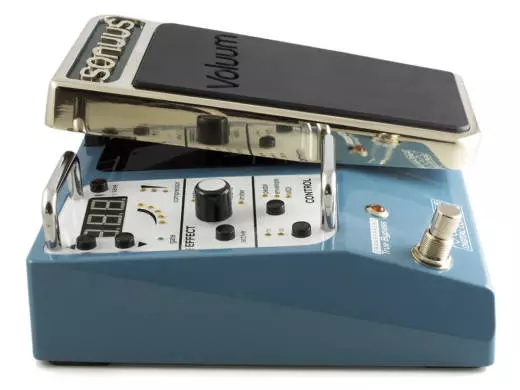

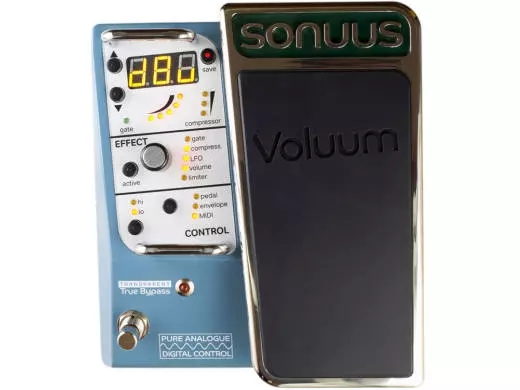

Sonuus Voluum Analogue Volume Multi-Effects Pedal
Additional Photos:
Product Videos :
- Fully analogue signal path
- 100 user presets
- Transparent noise gate
- Smooth (pedal-controlled) compressor
- Dual-LFO tremolo
- Volume effects
- Limiter
- Precision tuner
Voluum is a volume-based multi-effect stomp box with a digitally controlled high-fidelity pure-analogue signal chain. Constant high-voltage (> 30V) analogue power rails ensure high-headroom with low distortion and low noise for maximum signal clarity. A high-bandwidth fully-analogue signal path ensures there is no digital distortion to corrupt your signal, and allows high dynamic range signals to be processed flawlessly. Digital control gives you the ability to store presets and remotely-control the effects via MIDI.
The effects chain comprises five effects (noise gate, compressor, LFO (tremolo), volume control and limiter) which can be used in any combination.
The Voluum is also the world's first volume pedal to have a built-in precision chromatic tuner.
Features:
• Unique patented InfiniQ pedal sensor for super-fine precision control that will never wear out.
• Transparent-True-Bypass giving all the benefits of true-bypass without the switching noise.
• Pedal-controlled compressor to enhance the subtleties of your music.
• Response curves let you tailor the feel of the pedal volume control.

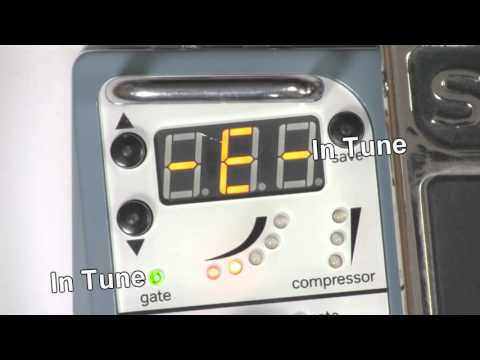

• Built-in precision chromatic tuner.
• Extensive MIDI functionality: a versatile MIDI controller for your pedalboard.
• A high-bandwidth, fully-analogue signal path ensures there are no digital artifacts.
• Constant high-voltage (> 30V) analogue power rails for superior tone.
• Wide-range volume control: 100dB cut / 40dB boost.
• Digitally controlled with expertly-crafted factory presets and 100 user presets.
• Setlists simplify live performance.
• Patented InfiniQ pedal sensor that will never wear out.
• Choose between Transparent-True-Bypass switching or Buffered Bypass.
• Multiple simultaneous effects: noise gate, compressor, tremolo (LFO), volume, limiter.
• Future-proof upgradeable firmware.
• 9 VDC, 4xAA batteries, USB-powered.
Specs
Size: 171mm x 192mm x 76mm
Weight: 1.3kg (without batteries)
Power supply: 9V DC, 4x AA batteries, USB (500mA max)
Battery Life: Typically > 10 hours (NiMH rechargeables, 2000mA.hr)
Input (Instrument):
6.35mm (1/4") mono jack | 2 MOhm impedance
+18dBu nominal maximum input level
Output (Instrument)
6.35mm (1/4") mono jack | 1 kOhm impedance
+21dBu nominal maximum output level
Switching: Transparent-True-Bypass | Buffered Bypass
Bandwidth
17Hz - 121kHz (0dB gain)
17Hz - 22kHz (40dB gain)
17Hz - 35kHz (40dB attenuation)

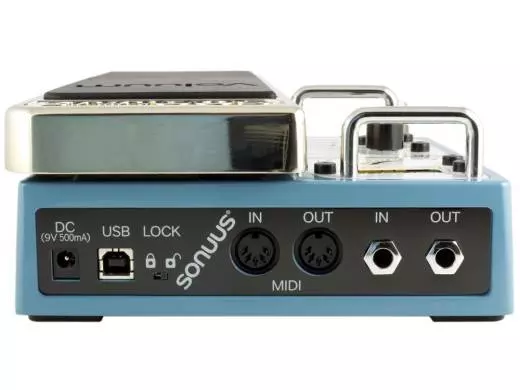

MIDI Input: Standard 5-pin MIDI
MIDI Output: 5-pin MIDI, Pin 1 & 3 allow external footswitch connections
External Footswitches: 2 (up and down) via MIDI Output (requires an adapter)
Presets: 30 factory | 100 user
Effects: Noise gate, compressor, dual-LFO tremolo, volume pedal, volume fades, ADSR envelope, limiter
Control methods: Pedal, envelope, MIDI controller, none (static)
Computer: Standard Type B USB socket
Drivers: Class-compliant (built into operation system)
Computer (Audio/MIDI): Microsoft Windows XP, Windows Vista, Windows 7 and above
Apple OSX 10.3.9 and above
Computer
(Desktop Editor)
Microsoft Windows XP, Windows Vista, Windows 7 and above
Apple OSX 10.5 and above
