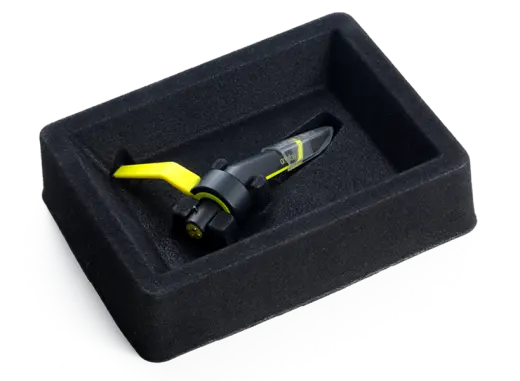

Ortofon Concorde MkII CLUB - Single Cartridge
Additional Photos:
Great Additions
Description
The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club.
The CLUB offers an outstanding platform for archival and sampling.
Includes:
1x Concorde MkII MIX cartridge with preinstalled stylus
Technical Data
Stylus Type: Special Elliptical
Tracking Force: 3.0 g
Output Voltage: 8 mV
Frequency Range: 2020.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Cartridge weight - 18.5 g
- The CLUB features a Special-Elliptic stylus that allows for detailed sound quality: Special-Elliptic stylus fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.
- The CLUB's 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.
The CLUB offers an outstanding platform for archival and sampling.
Includes:
1x Concorde MkII MIX cartridge with preinstalled stylus
Technical Data
Stylus Type: Special Elliptical
Tracking Force: 3.0 g
Output Voltage: 8 mV
Frequency Range: 2020.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Cartridge weight - 18.5 g
Q & A
Question: Can you scratch with this cartridge?
- asked on Jun 3, 2026
- asked on Jun 3, 2026
Answer: Yes, you technically can scratch and back-cue with the Ortofon Concorde MkII CLUB, but it is not recommended for heavy scratching.
The CLUB series is Ortofon's premier high-fidelity cartridge designed for uncompromising sound quality and vinyl transfers, rather than hardcore DJ tricks. Here is why it isn't ideal for scratching:
Stylus Shape: It features a Special Elliptical diamond stylus.
While this provides excellent detail, extended frequency response, and crisp highs, elliptical styli sit deeper in the groove. They are prone to jumping out of the groove during aggressive scratches and will cause higher record wear if back-cueing heavily compared to spherical needles.Tracking Force: It tracks at roughly 3.0g, which is decent, but not as locked-down as dedicated scratch styli.
- answered by ANDREW DUDLEY, Winnipeg (Pembina), Manitoba
The CLUB series is Ortofon's premier high-fidelity cartridge designed for uncompromising sound quality and vinyl transfers, rather than hardcore DJ tricks. Here is why it isn't ideal for scratching:
Stylus Shape: It features a Special Elliptical diamond stylus.
While this provides excellent detail, extended frequency response, and crisp highs, elliptical styli sit deeper in the groove. They are prone to jumping out of the groove during aggressive scratches and will cause higher record wear if back-cueing heavily compared to spherical needles.Tracking Force: It tracks at roughly 3.0g, which is decent, but not as locked-down as dedicated scratch styli.
- answered by ANDREW DUDLEY, Winnipeg (Pembina), Manitoba
Reviews
There are currently no reviews for this product. Be the first to write one!
