Focal Professional - ALPHA 80

SKU: 415958 Model: ALPHA 80 Serial: c1bacf001780
Quantity Available: -1 Condition: Used


Description

Flagship of the line, Alpha 80 is particularly ideal for producing music which is rich in bass or which requires high power reserves.

This model is composed of a 8 (21cm) woofer/ midrange speaker with a Polyglass cone loaded in a large laminar port and of a 1" (25mm) aluminum inverted dome tweeter. It features a 40W amplifier for the tweeter and a 100W amplifier for the woofer, and has a frequency response of 35Hz to 22kHz (+/- 3dB).

FEATURES

* Low directivity: keeps the same sound throughout the room
* Damping and rigidity: neutrality, no distortion
* Tonal balance is identical at low and high volumes, low sensitivity to the wall effects
* Connect up to 2 audio sources
* Optimal acoustic integration
* Reduced power consumption

SPECIFICATIONS

* Frequency response (+/- 3dB): 35Hz - 22kHz
* Power: 140W (100W+40W)
* Maximum SPL: 109dB SPL (pic @ 1m)

Electronics
* Inputs/Connectors:
* XLR balanced 10kOhms, RCA unbalanced 10kOhms with sensitivity compensation
* LF amplifier stage: 100W, class AB
* HF amplifier stage: 40W, class AB
* After about 30 minutes without using the monitor By signal detection: >3 mV
* Standby Mode Activation: After about 30 minutes without using the monitor
* Power Supply (Voltage can not be modified): 220-240V (fuse T1.6AL/250V)or 100-120V (fuse T3.15AL/250V)
* Connection: IEC inlet and detachable power cord

Users Controls
* Sensitivity: Adjustable, 0 or +6dB
* LF shelving (0 - 300Hz): Adjustable, +/-6dB
* Power ON/OFF: Switch on rear panel
* Standby mode power consumption: < 0,5W
* Indicators: Power ON/OFF LED - Standby LED

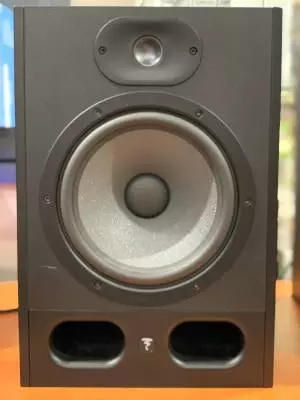

Transducers
* Woofer: 8" (21cm) drive unit - Polyglass cone
* Tweeter: 1" (25mm) drive unit. Aluminium inverted dome

Cabinet
* Construction: 0.6" (15mm) MDF
* Finish: Vinyl and Black painting
* Dimensions with 4 rubber pads (HxWxD): 15.6x11.3x13.7" (397 x 287 x 348mm)
* Weight: 28.2lb (12.8kg
